Power Seat Systems Connector End Views

Fig 1: Identifying Horizontal Motor Connector Terminals

Courtesy of GENERAL MOTORS CORP.

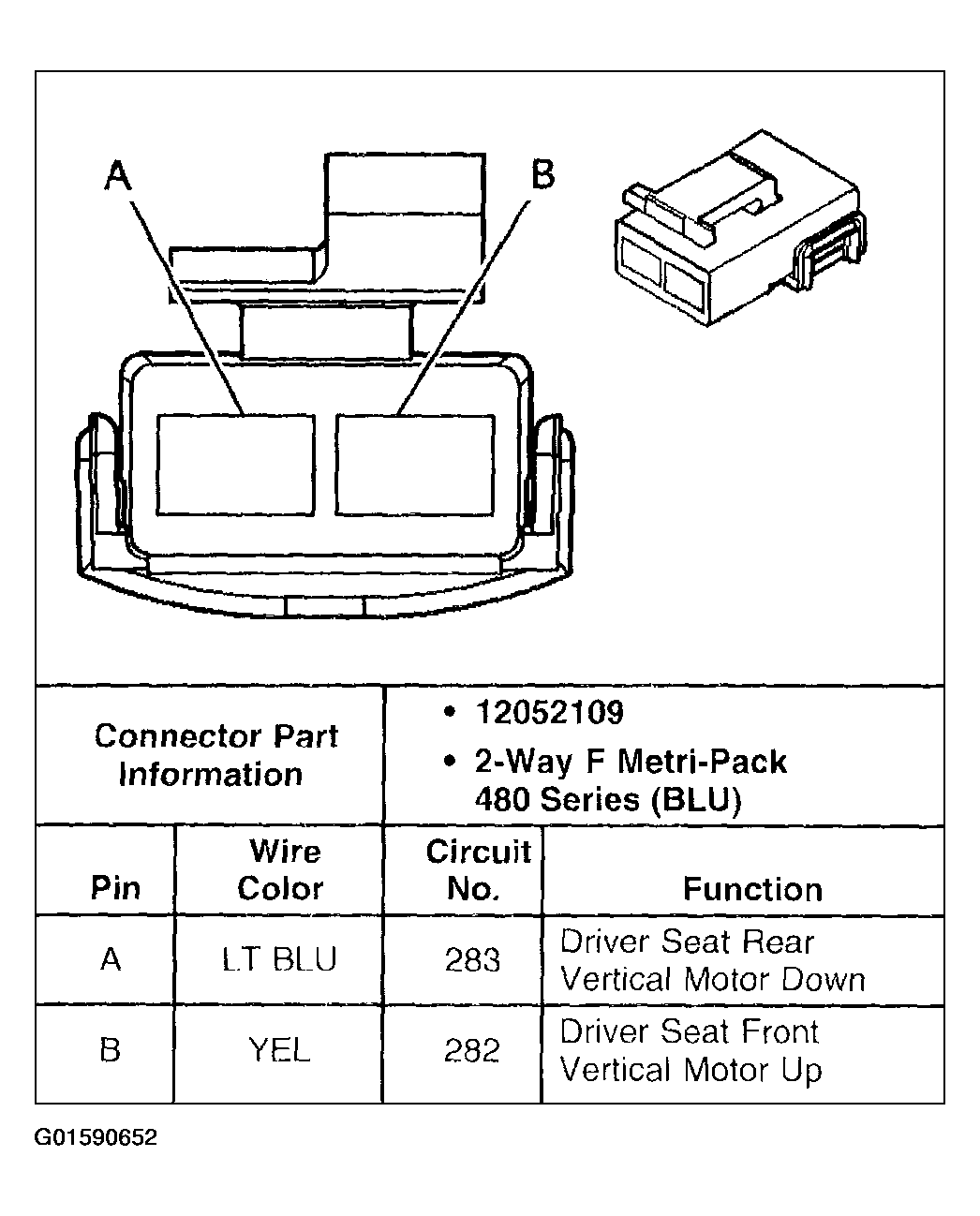

Fig 2: Identifying Front Vertical Motor Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying Rear Vertical Motor Connector Terminals

Courtesy of GENERAL MOTORS CORP.

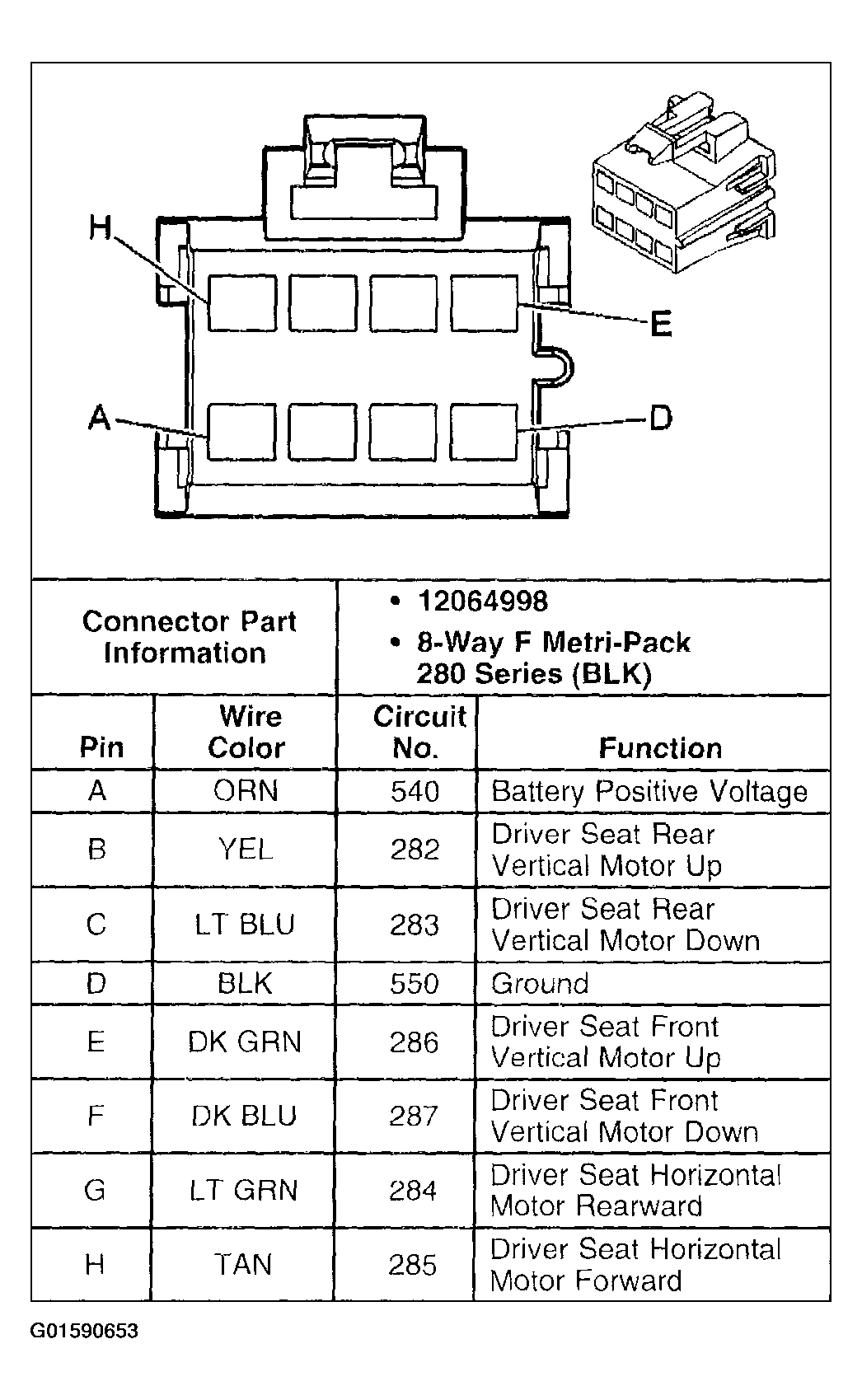

Fig 4: Identifying Seat Adjuster Switch Connector Terminals - Driver

Courtesy of GENERAL MOTORS CORP.
