Stationary Windows Connector End Views
Fig 1: Identifying Stationary Windows Connector End View (Rear Window Defogger Grid C1)
Courtesy of GENERAL MOTORS CORP.

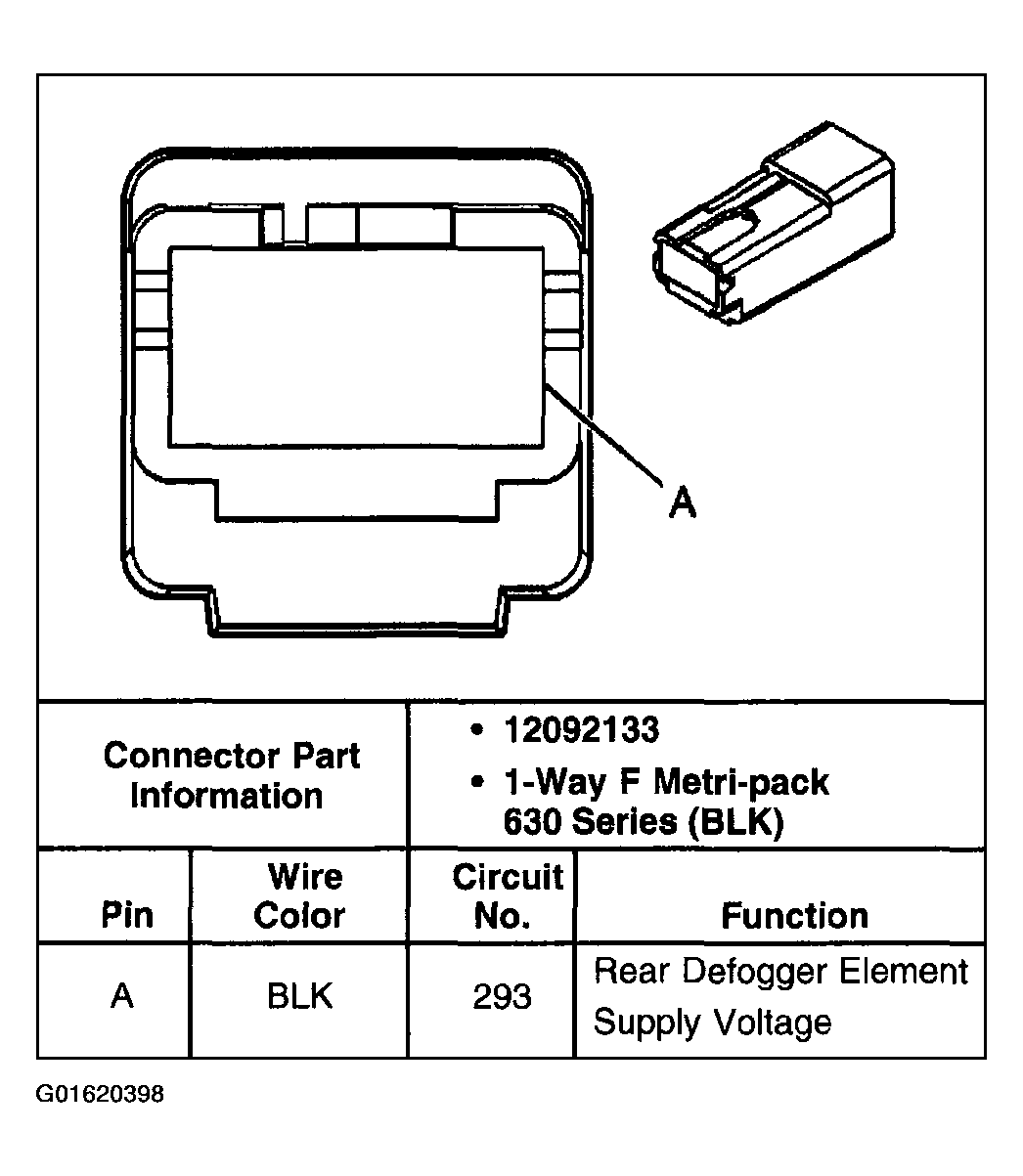

Fig 2: Identifying Stationary Windows Connector End View (Rear Window Defogger Grid C2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
