Repair and Diagnosis
›
Brakes
›
Traction Control
›
Antilock Brake System
›
Component Locator
›
ABS Connector End Views
ABS Connector End Views

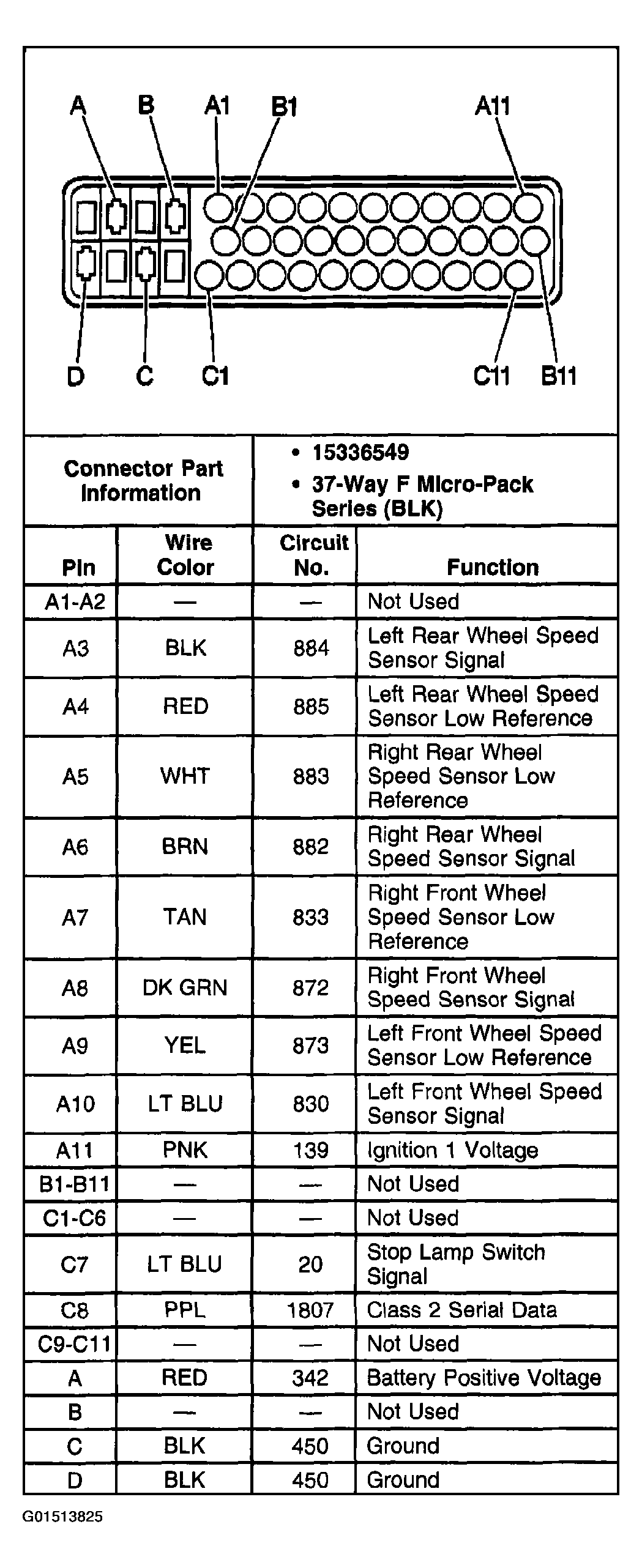

Fig 1: Identifying ABS Connector End Views - Electronic Brake Control Module (EBCM)
Courtesy of GENERAL MOTORS CORP.

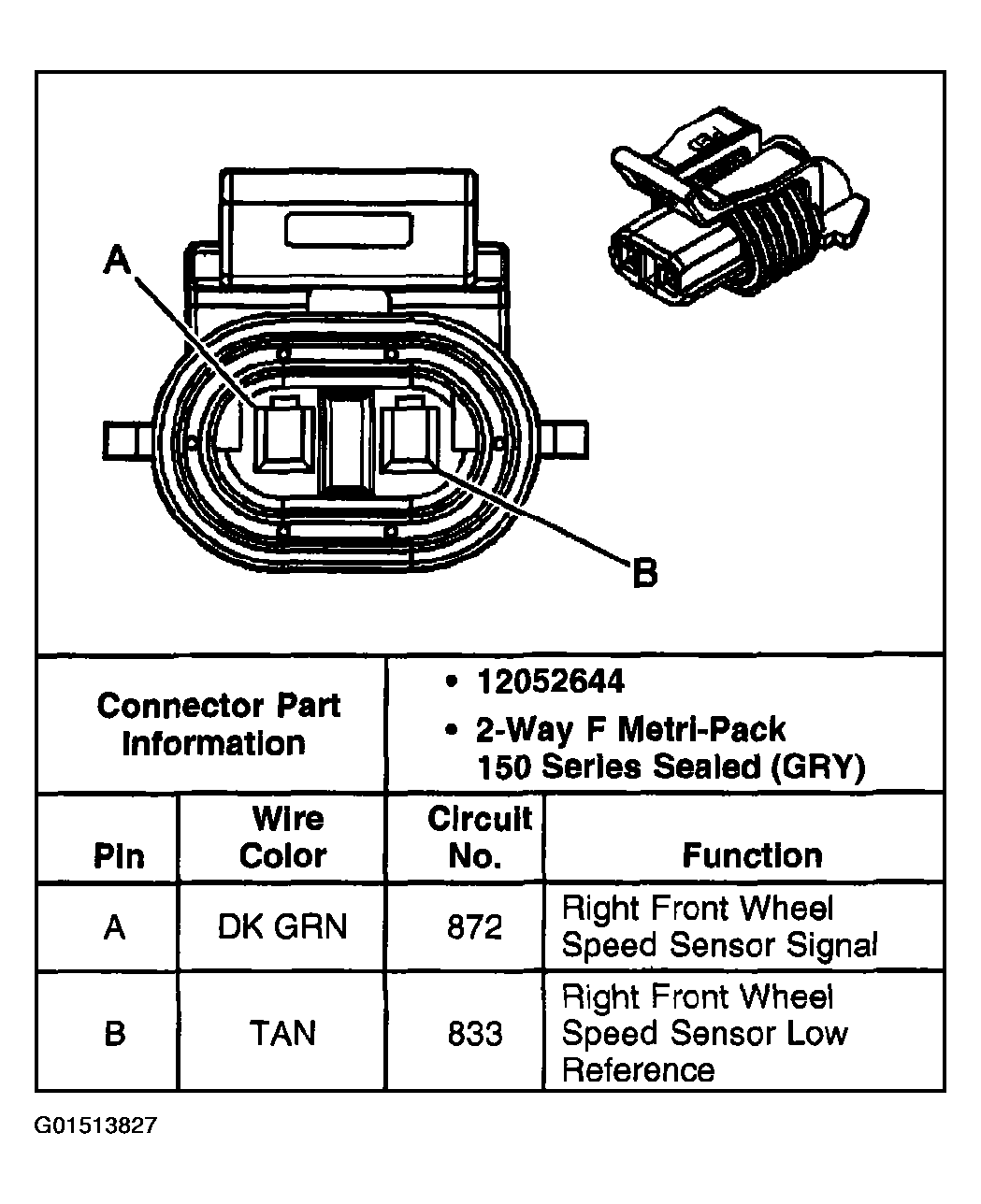

Fig 2: Identifying ABS Connector End Views - Wheel Speed Sensor (WSS) - LF
Courtesy of GENERAL MOTORS CORP.

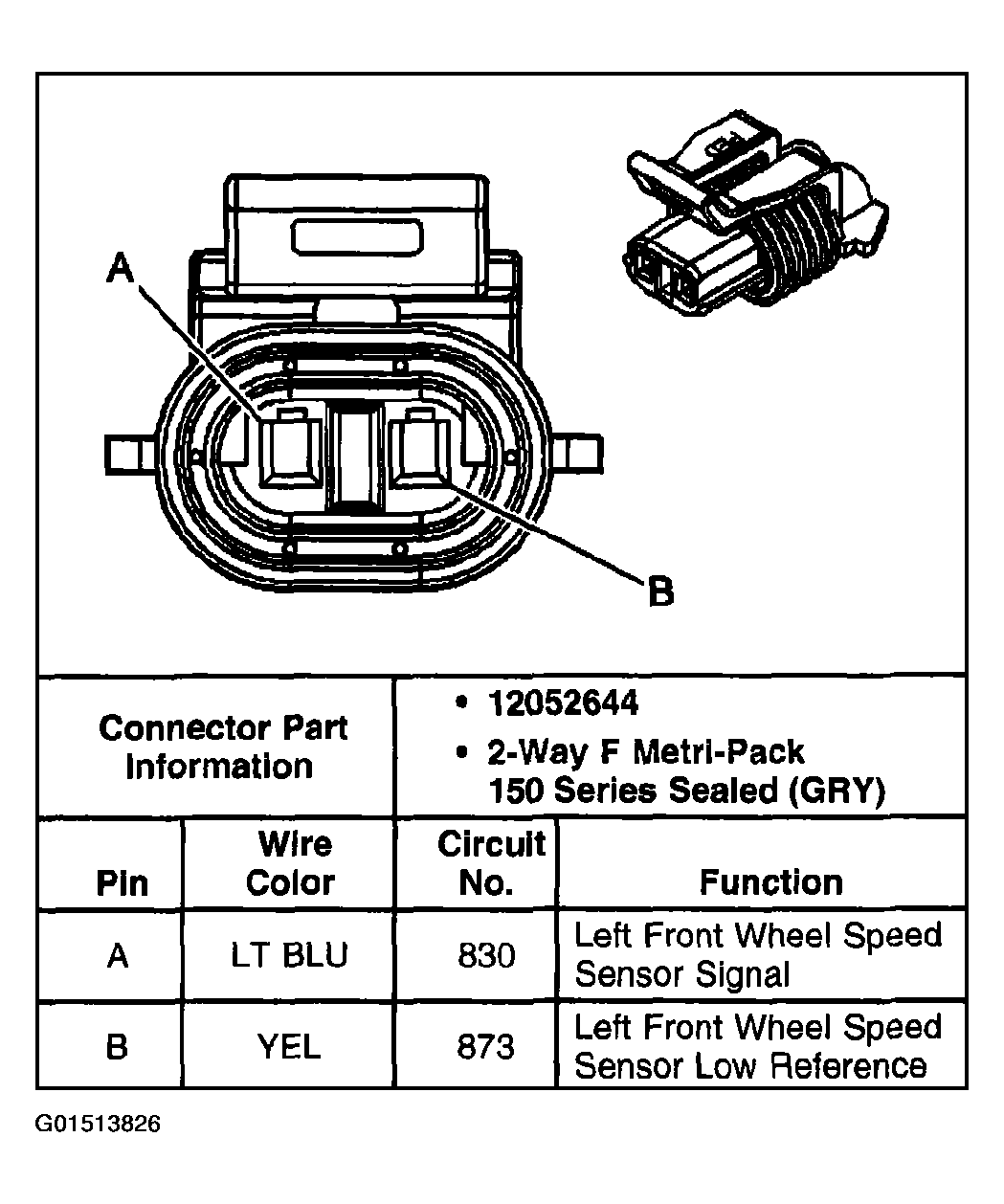

Fig 3: Identifying ABS Connector End Views - Wheel Speed Sensor (WSS) - RF
Courtesy of GENERAL MOTORS CORP.

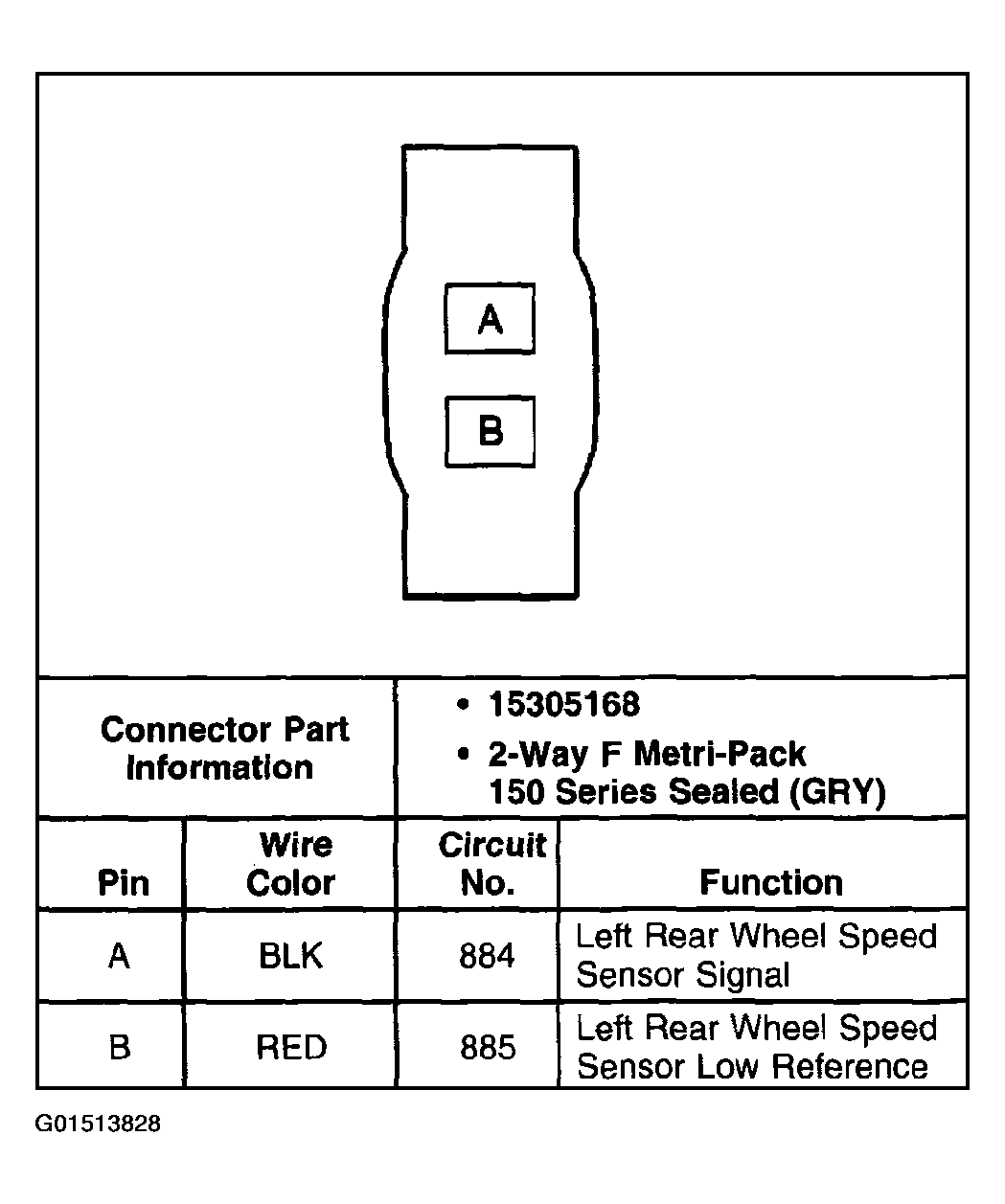

Fig 4: Identifying ABS Connector End Views - Wheel Speed Sensor (WSS) - LR
Courtesy of GENERAL MOTORS CORP.

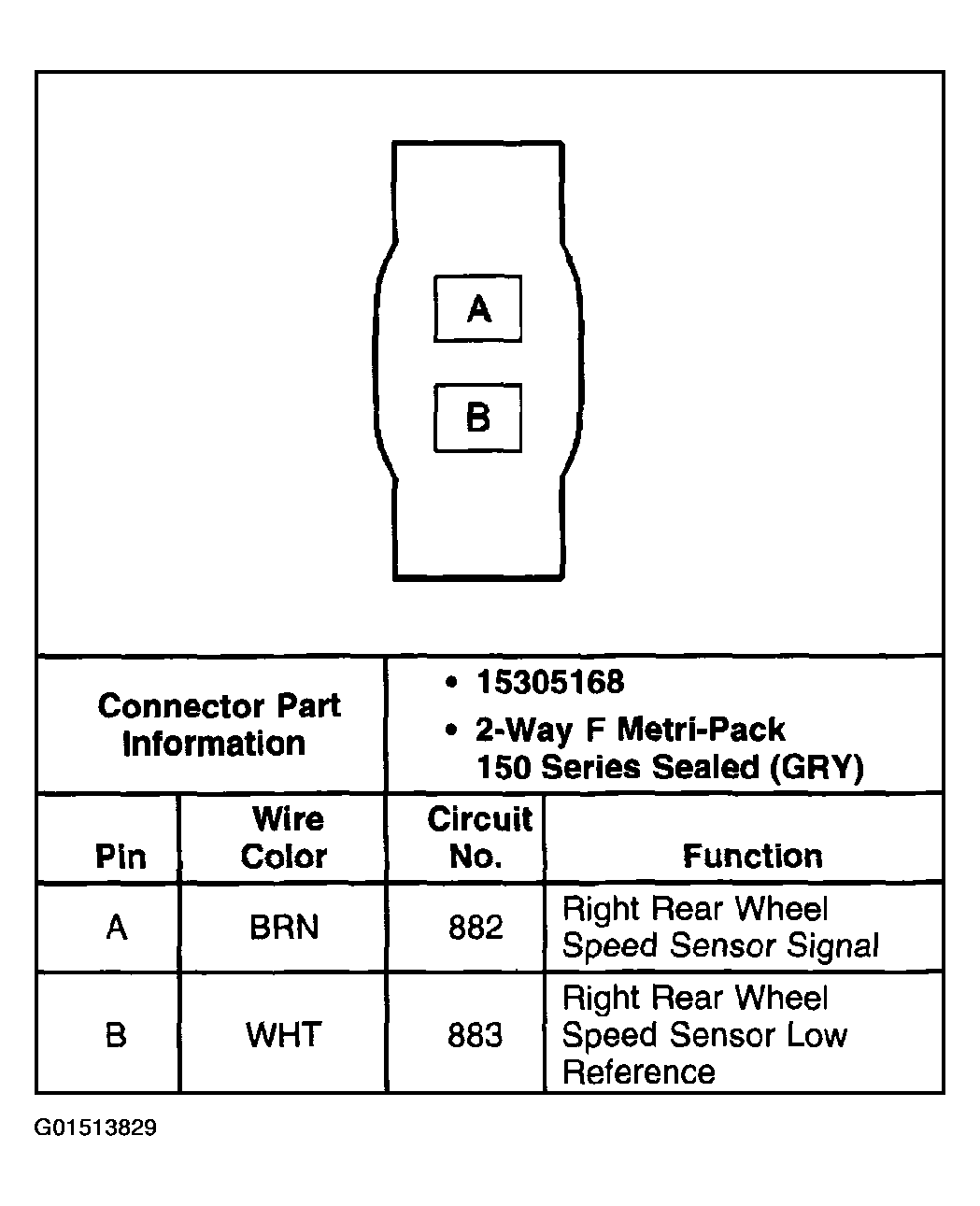

Fig 5: Identifying ABS Connector End Views - Wheel Speed Sensor (WSS) - RR
Courtesy of GENERAL MOTORS CORP.
