Brake Switch C1 Connector End View
Brake Switch C1 Connector End View

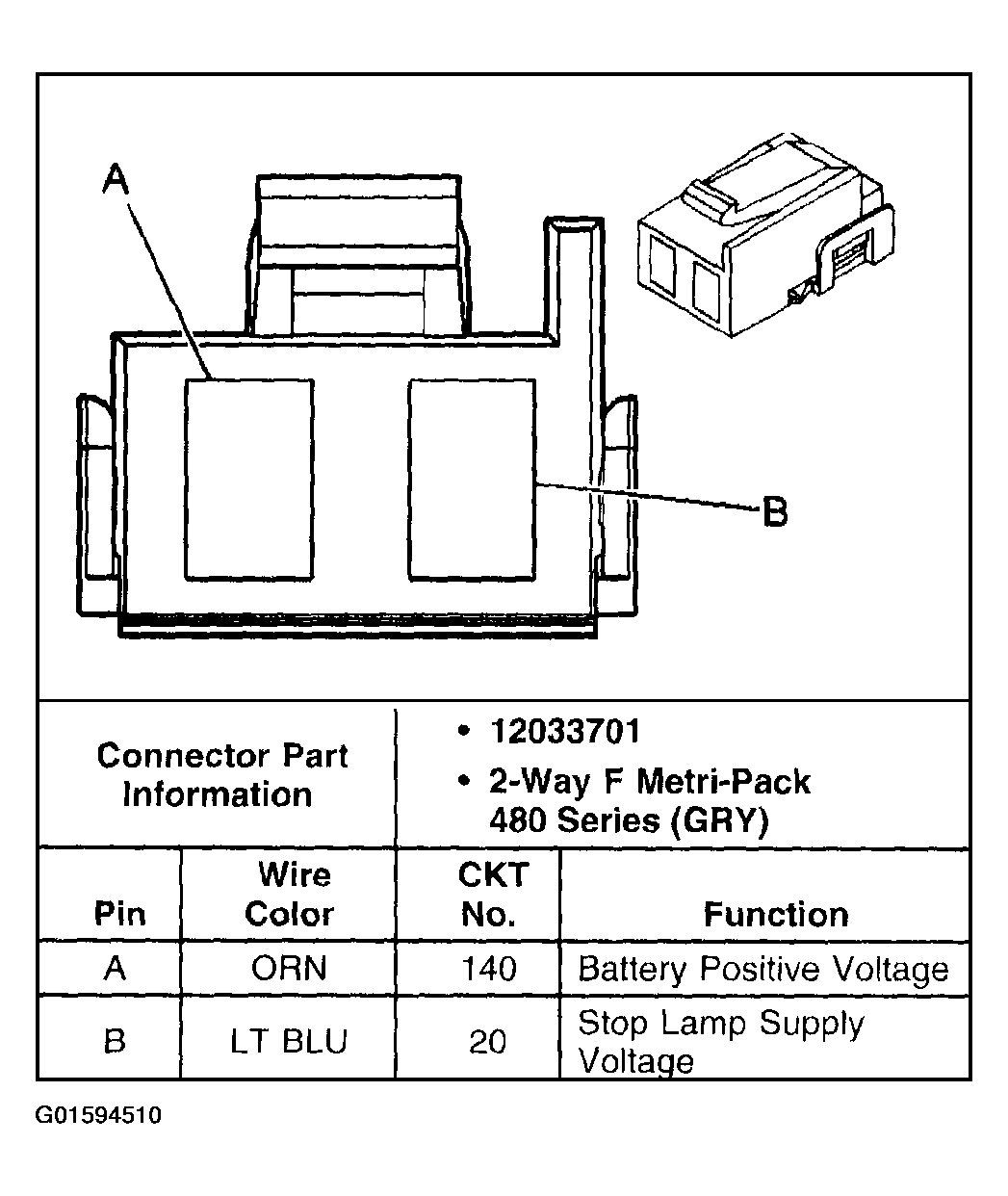

Fig 1: Brake Switch C1 Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
