Connector End View Of Body Control Module (BCM) C1

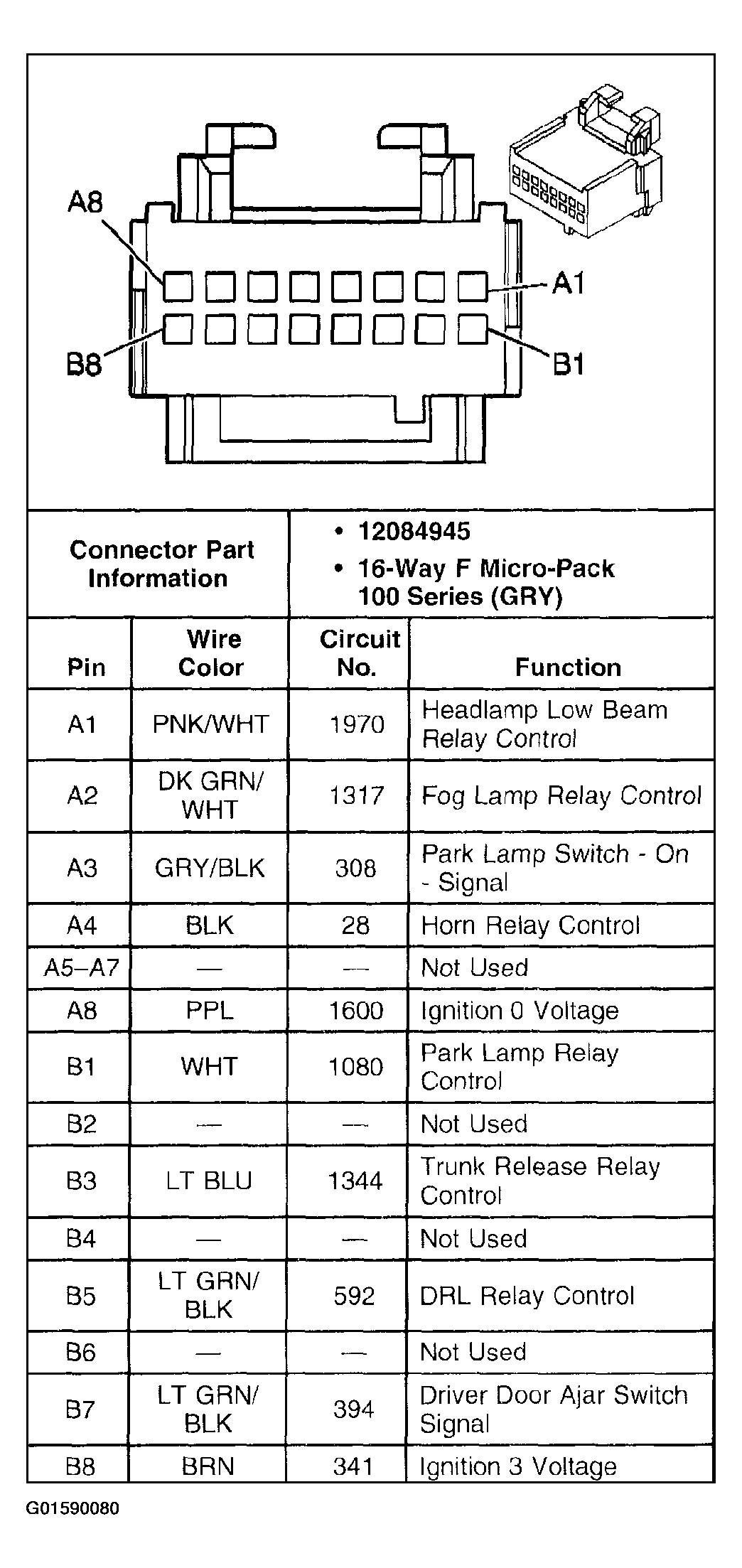

Fig 1: Connector End View Of Body Control Module (BCM) C1
G01590080Courtesy of GENERAL MOTORS CORP.
