Connector End View Of Body Control Module (BCM) C2

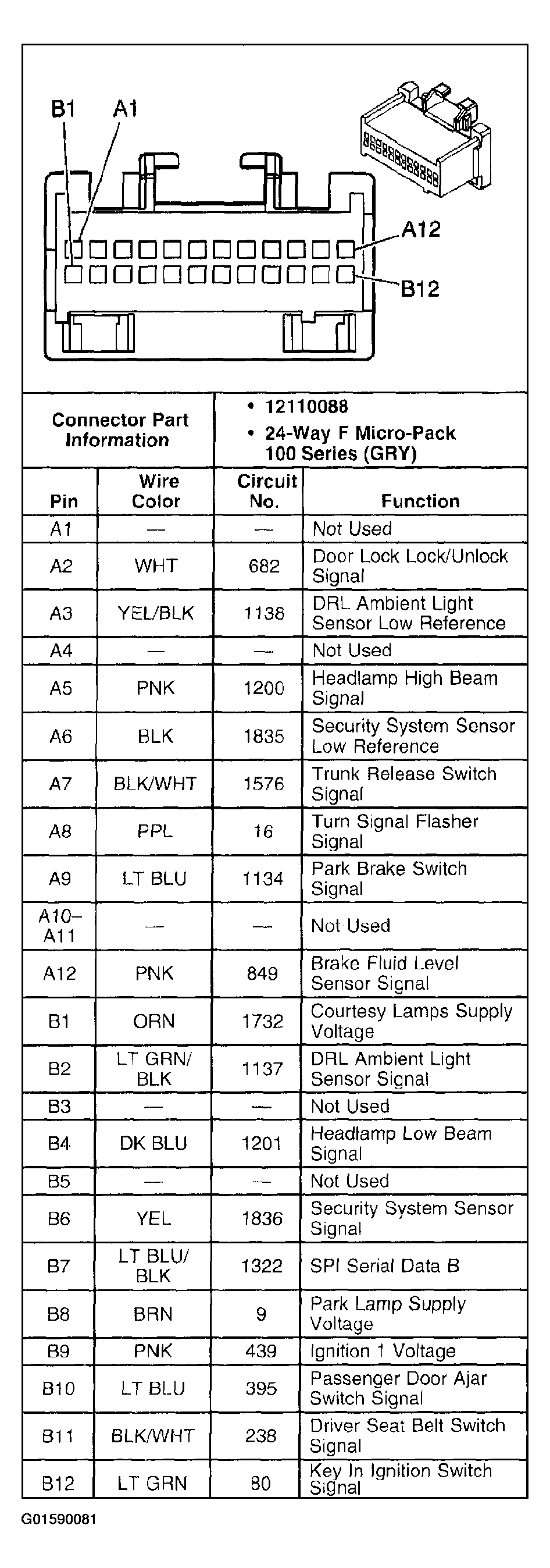

Fig 1: Connector End View Of Body Control Module (BCM) C2
G01590081Courtesy of GENERAL MOTORS CORP.
