Data Link Connector End View
Data Link Connector End View

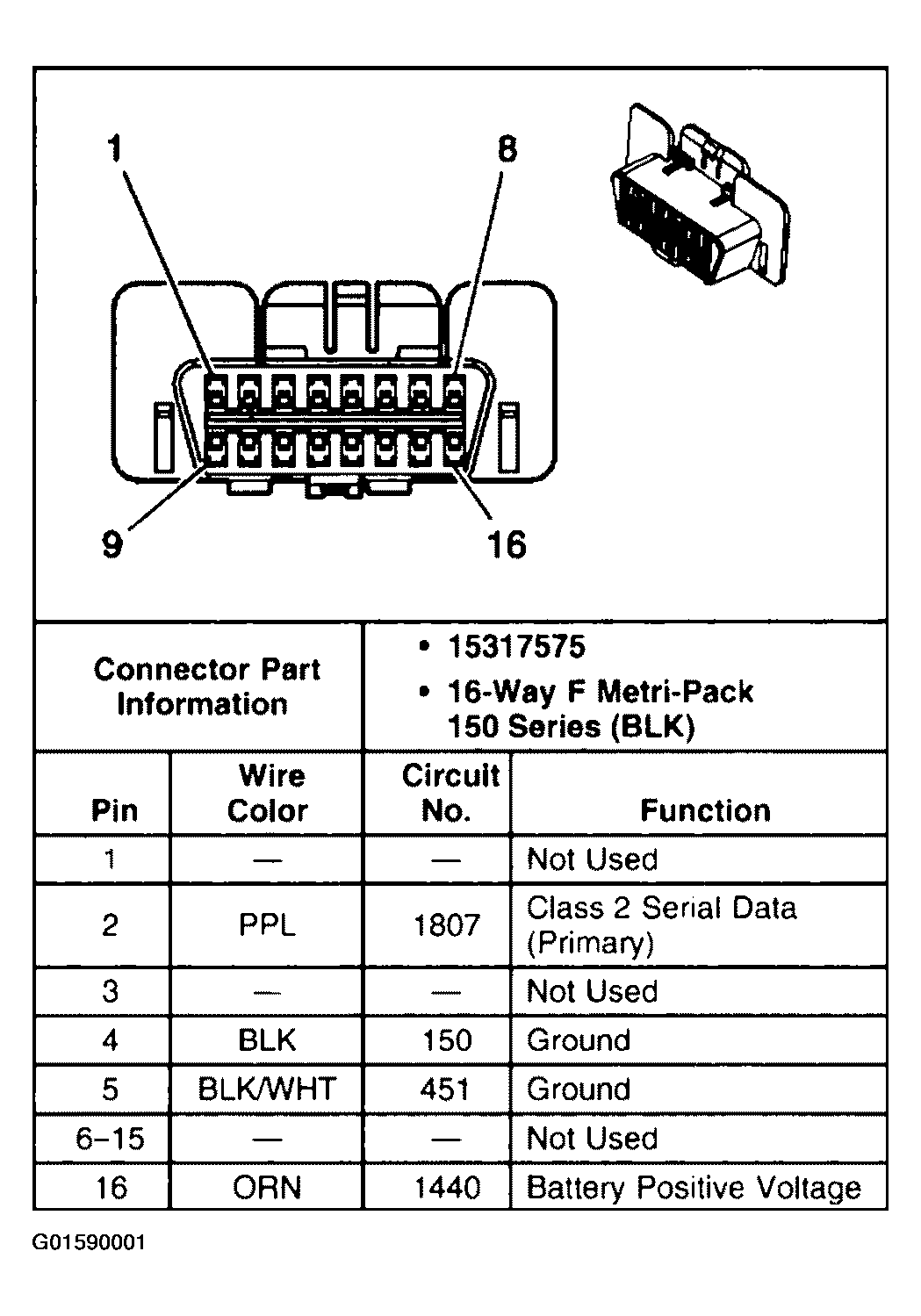

Fig 1: Data Link Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
