HVAC Control Assembly C1 Connector End View

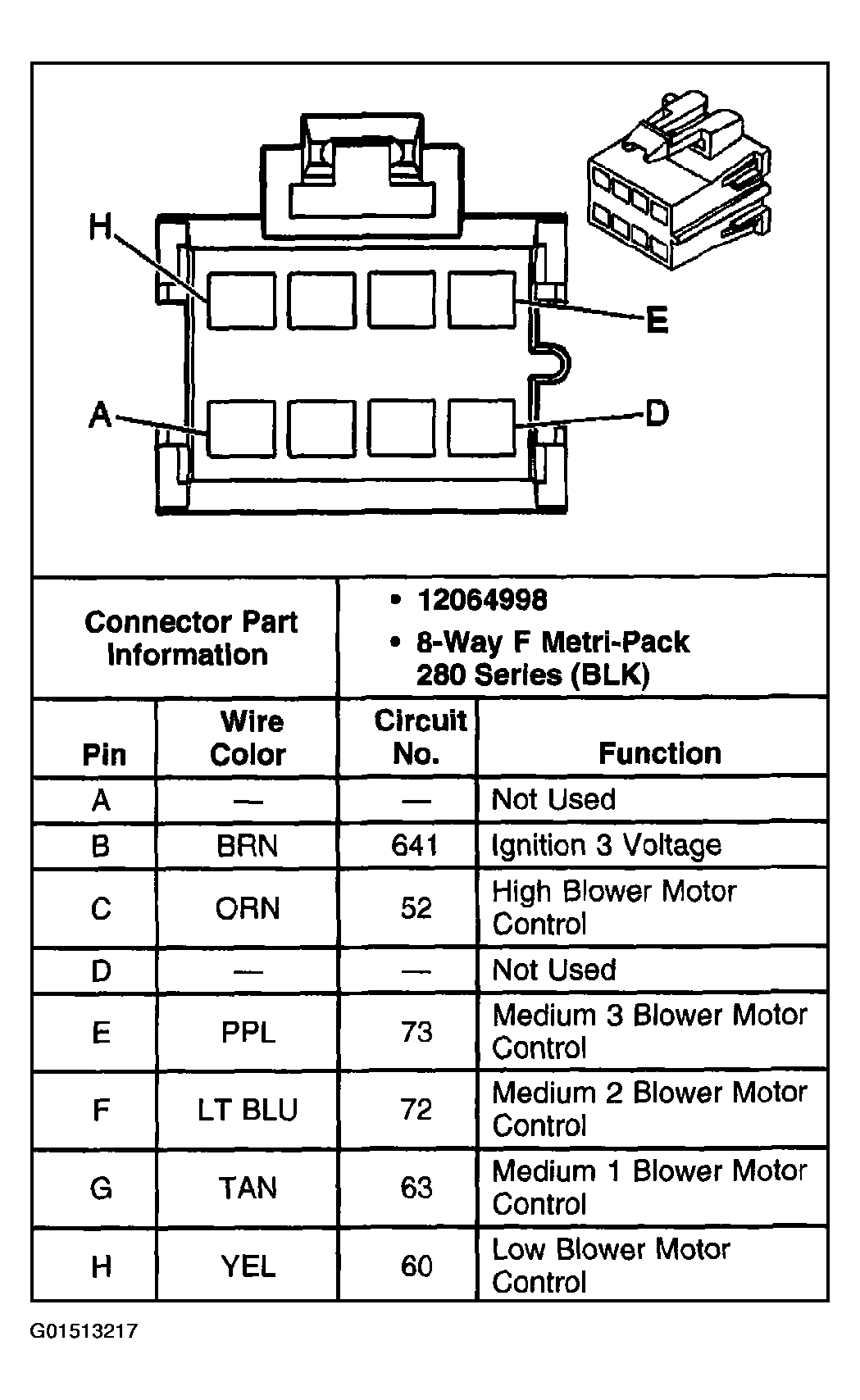

Fig 1: HVAC Control Assembly C1 Connector End View
G01513217Courtesy of GENERAL MOTORS CORP.
