Horizontal Motor Connector End View

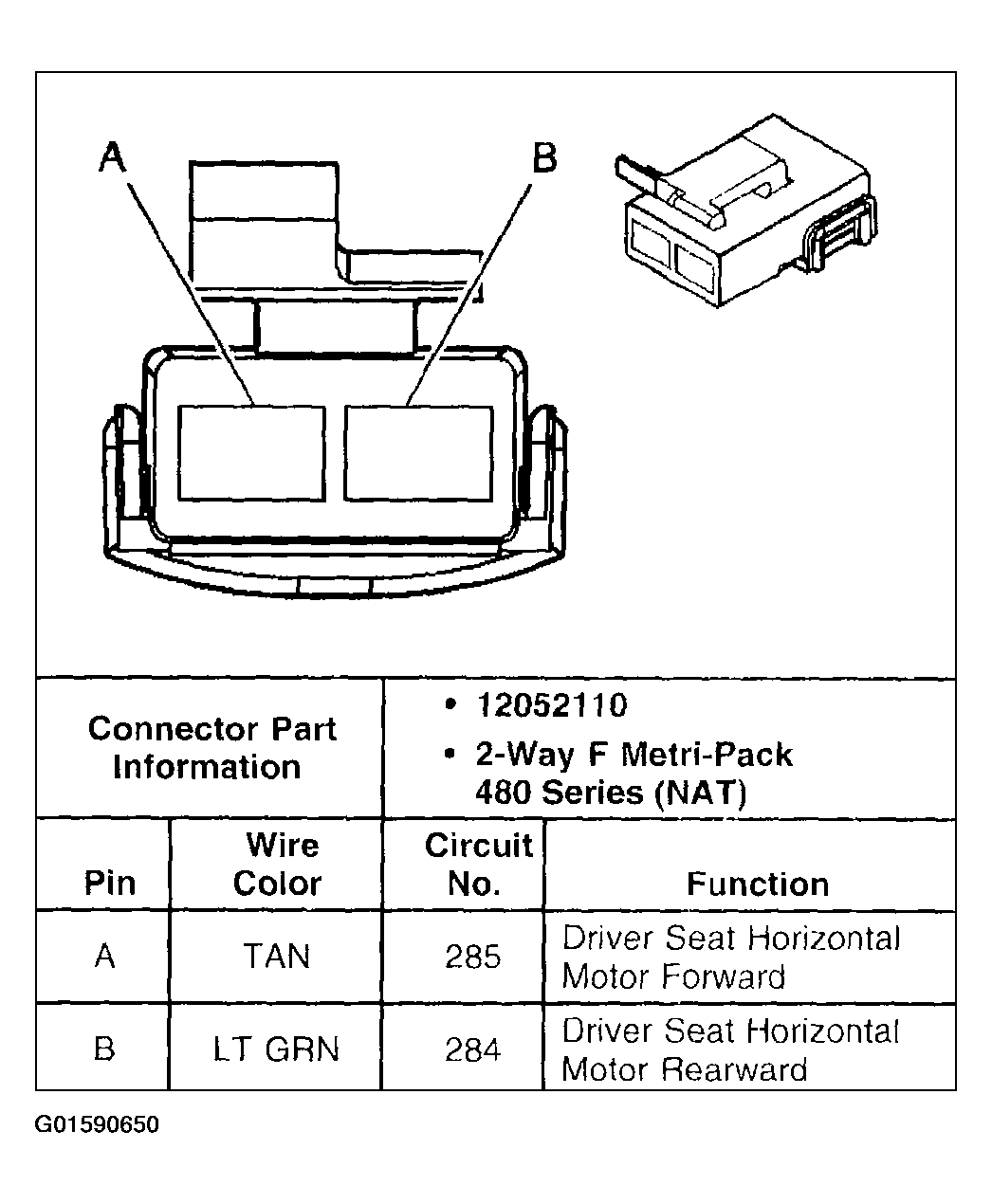

Fig 1: Horizontal Motor Connector End View
G01590650Courtesy of GENERAL MOTORS CORP.
