I/P Dimming Module Connector End View

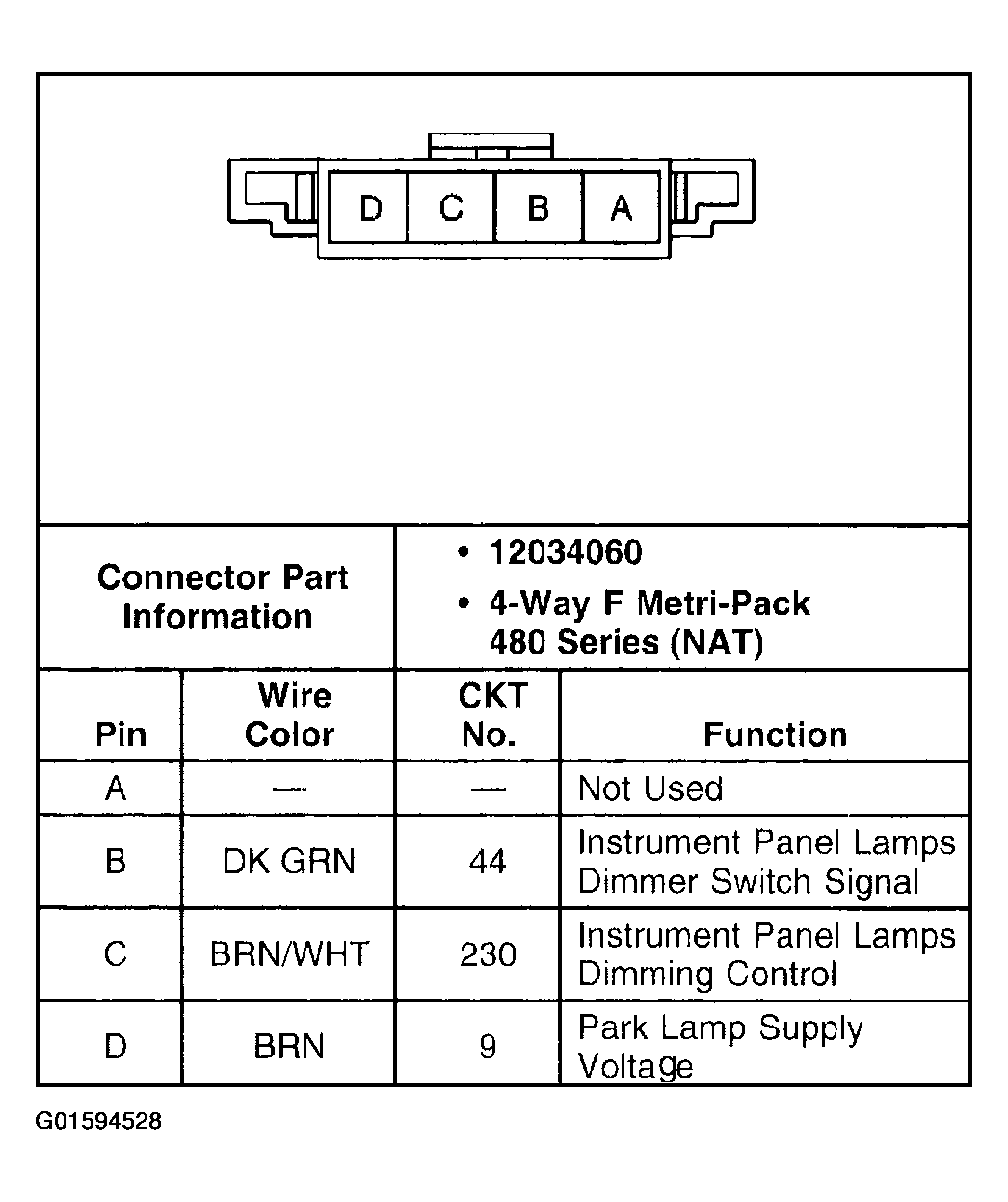

Fig 1: I/P Dimming Module Connector End View
G01594528Courtesy of GENERAL MOTORS CORP.
