Windshield Wiper Motor Assembly Connector End View

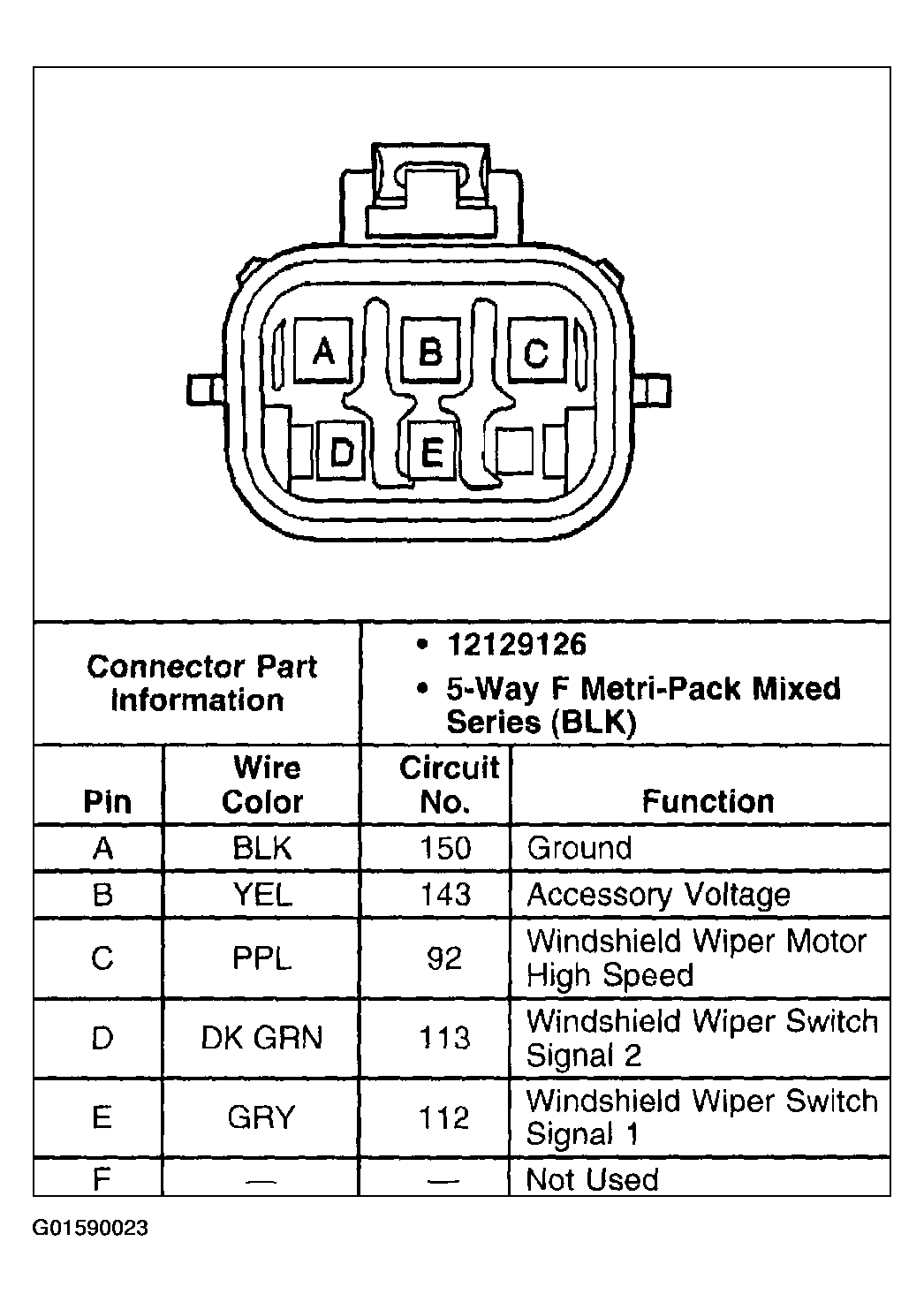

Fig 1: Windshield Wiper Motor Assembly Connector End View
G01590023Courtesy of GENERAL MOTORS CORP.
