Horns Connector End Views

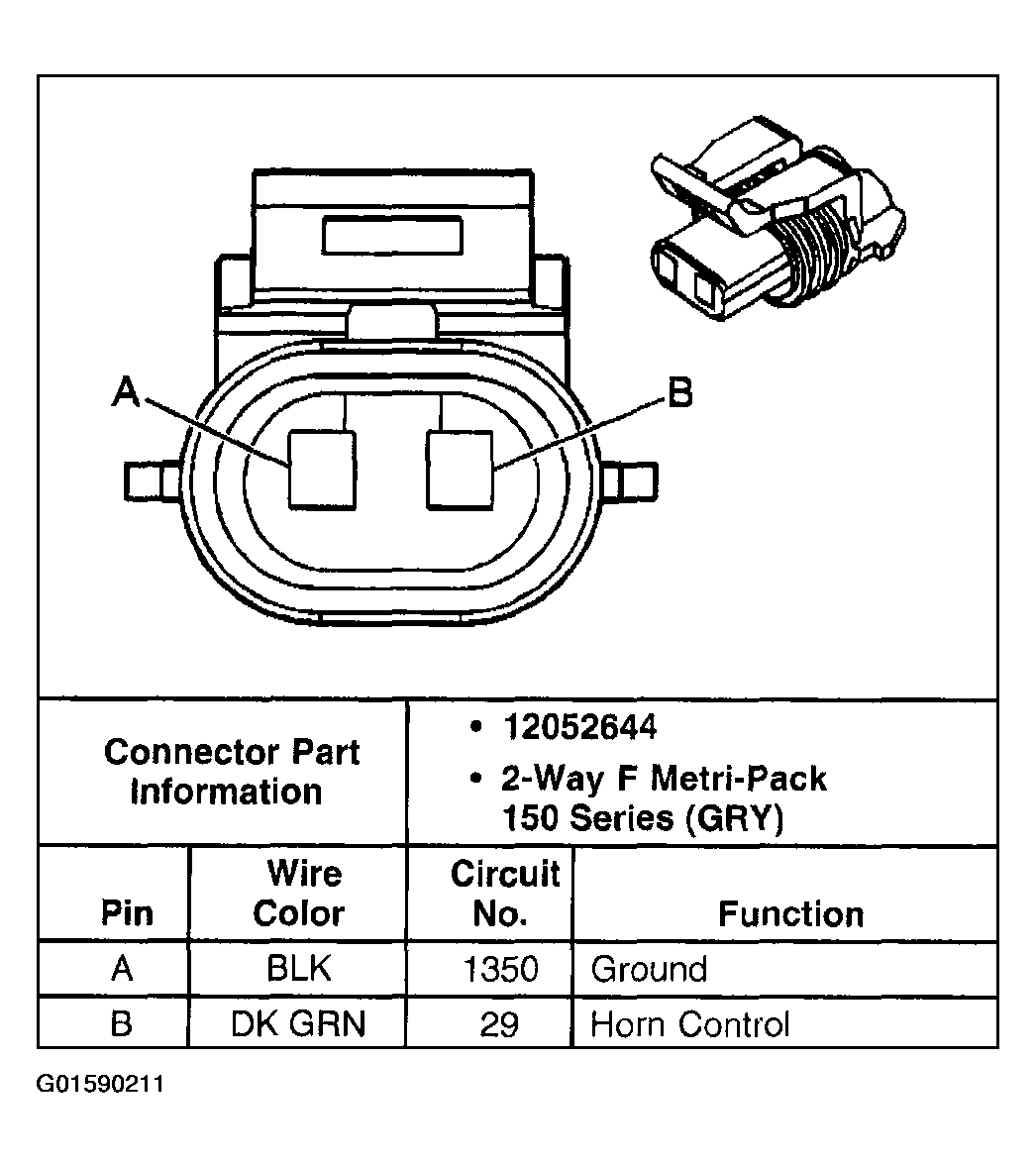

Fig 1: Identifying Horns Connector End (Horn Assembly)
G01590211Courtesy of GENERAL MOTORS CORP.

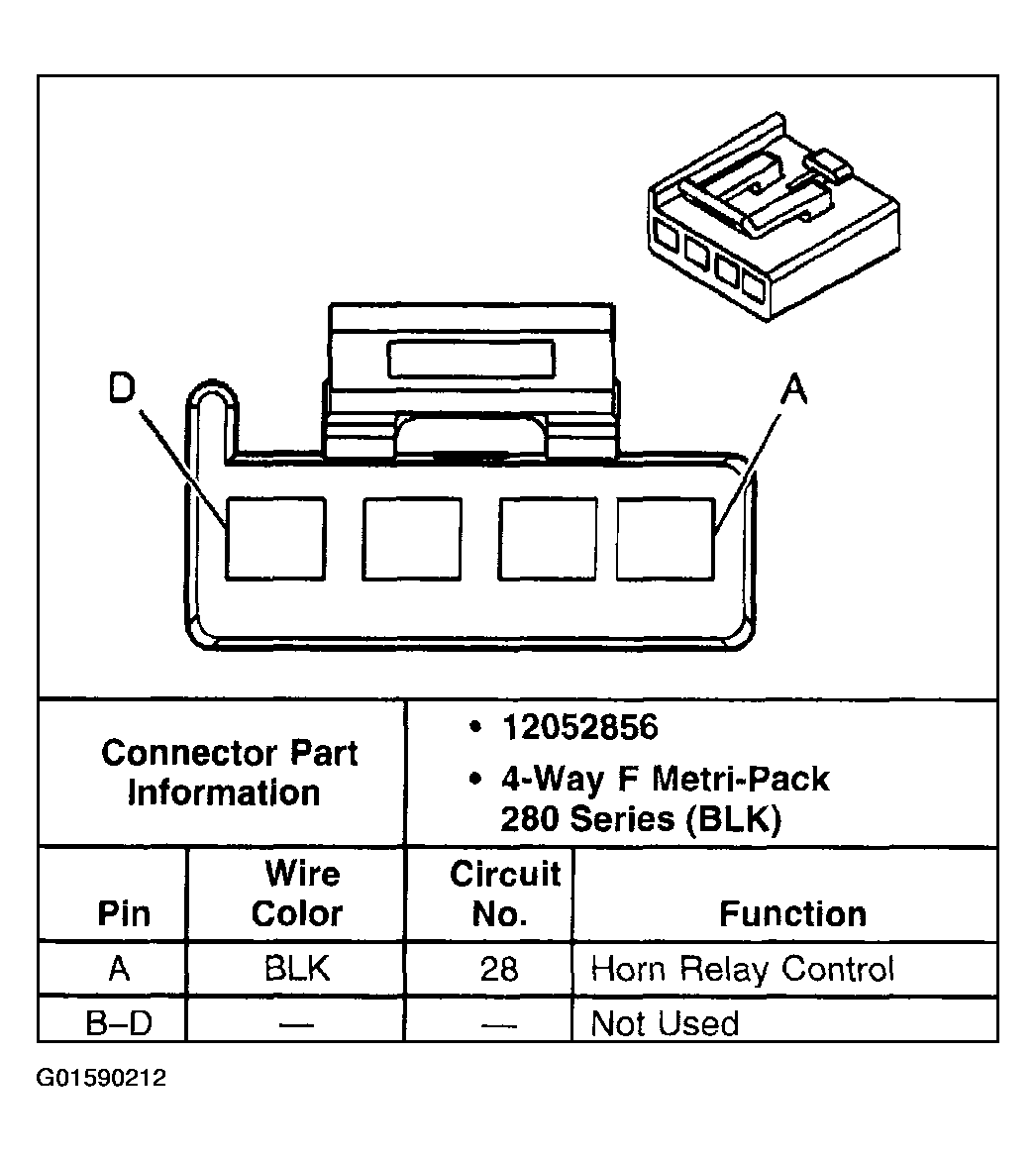

Fig 2: Identifying Horns Connector End (Turn Signal / Multifunction Switch, C2)
G01590212Courtesy of GENERAL MOTORS CORP.
