Brake Switch C2 Connector End View
Brake Switch C2 Connector End View

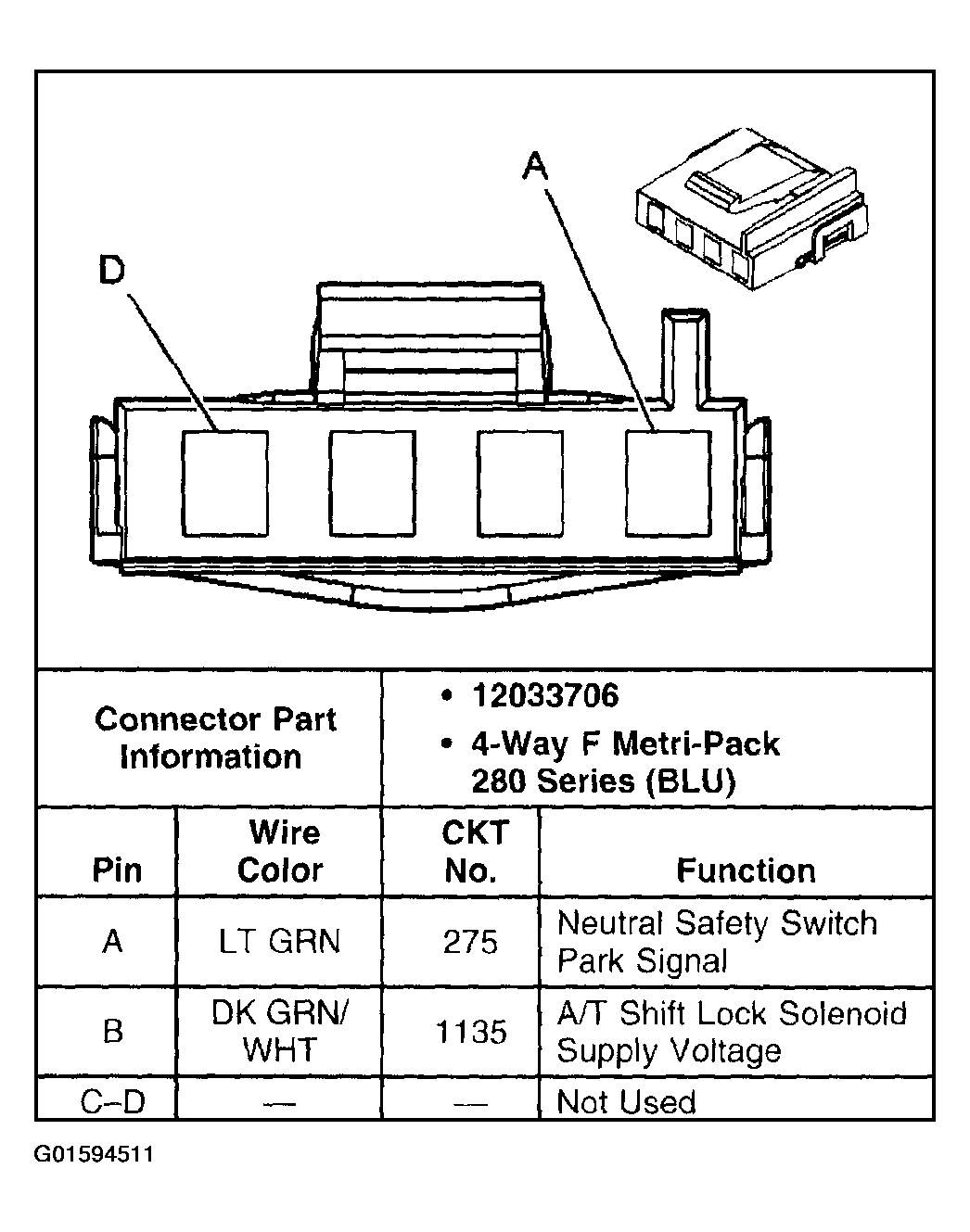

Fig 1: Brake Switch C2 Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
