Installation Procedure

Install the exhaust muffler.
Connect the exhaust muffler rear hanger insulators to the exhaust muffler.

Fig 1: Connecting Exhaust Muffler Rear Hanger Insulators To Exhaust Muffler
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the exhaust muffler to the intermediate pipe.
Tighten

Tighten the exhaust muffler nuts to 50 N.m (37 lb ft).
Lower the vehicle.
Inspect the exhaust system for leaks and underbody contact.

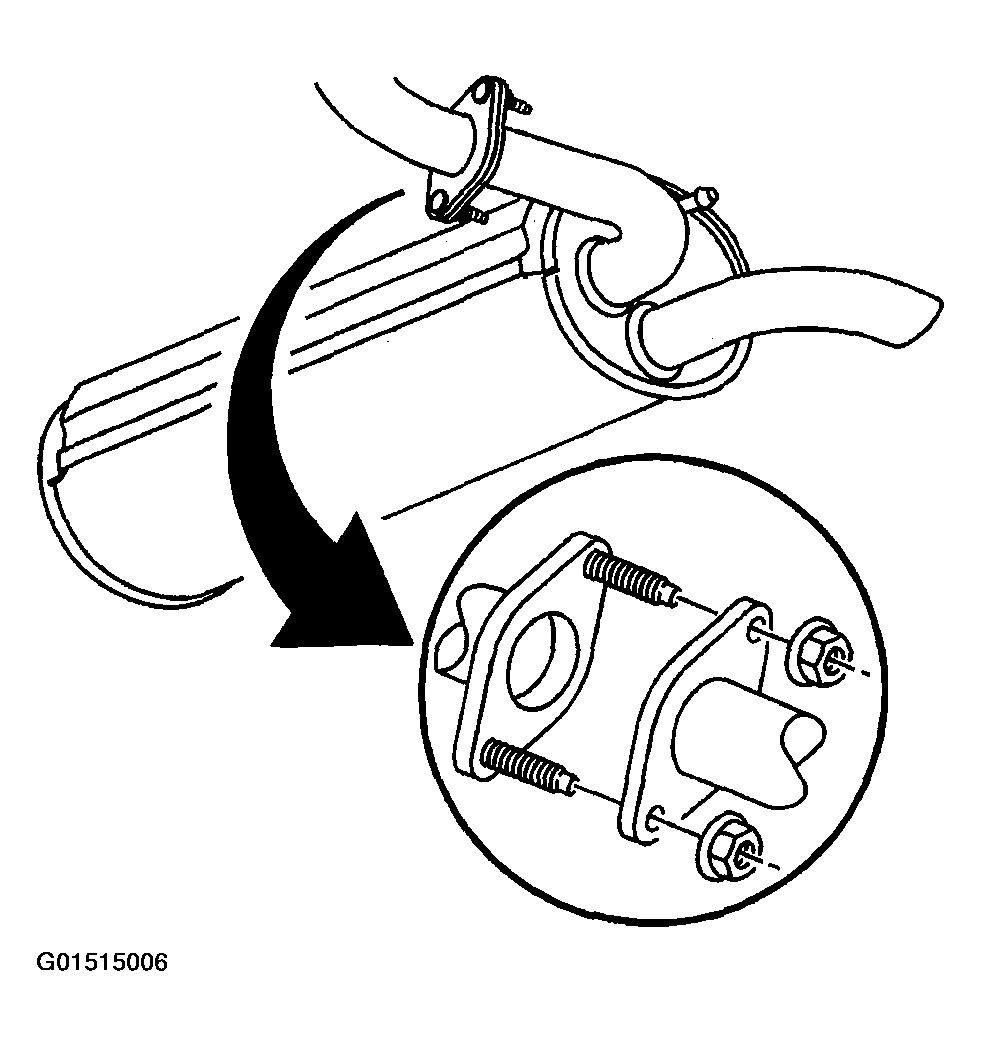

Fig 2: Installing Exhaust Muffler To Intermediate Pipe
Courtesy of GENERAL MOTORS CORP.
