Installation Procedure

  1. Install the muffler to the hangers.

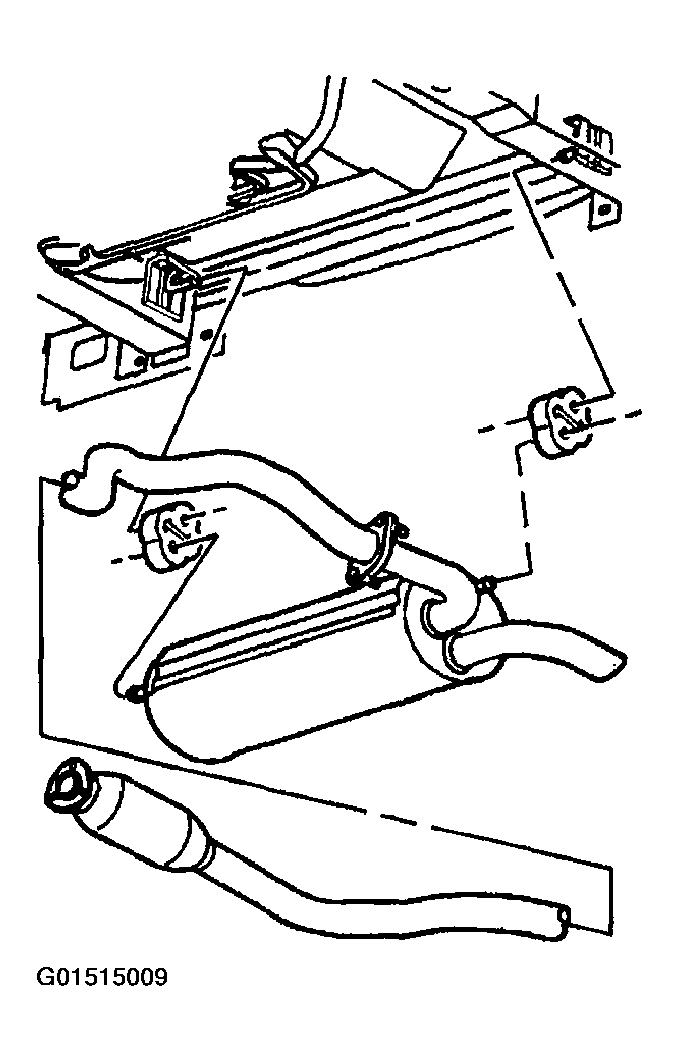

    Fig 1: Installing Muffler To Hangers
    G01515009Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the muffler to the intermediate pipe nuts.

    Tighten

    Tighten nuts to 50 N.m (37 lb ft).

  3. Lower the vehicle.

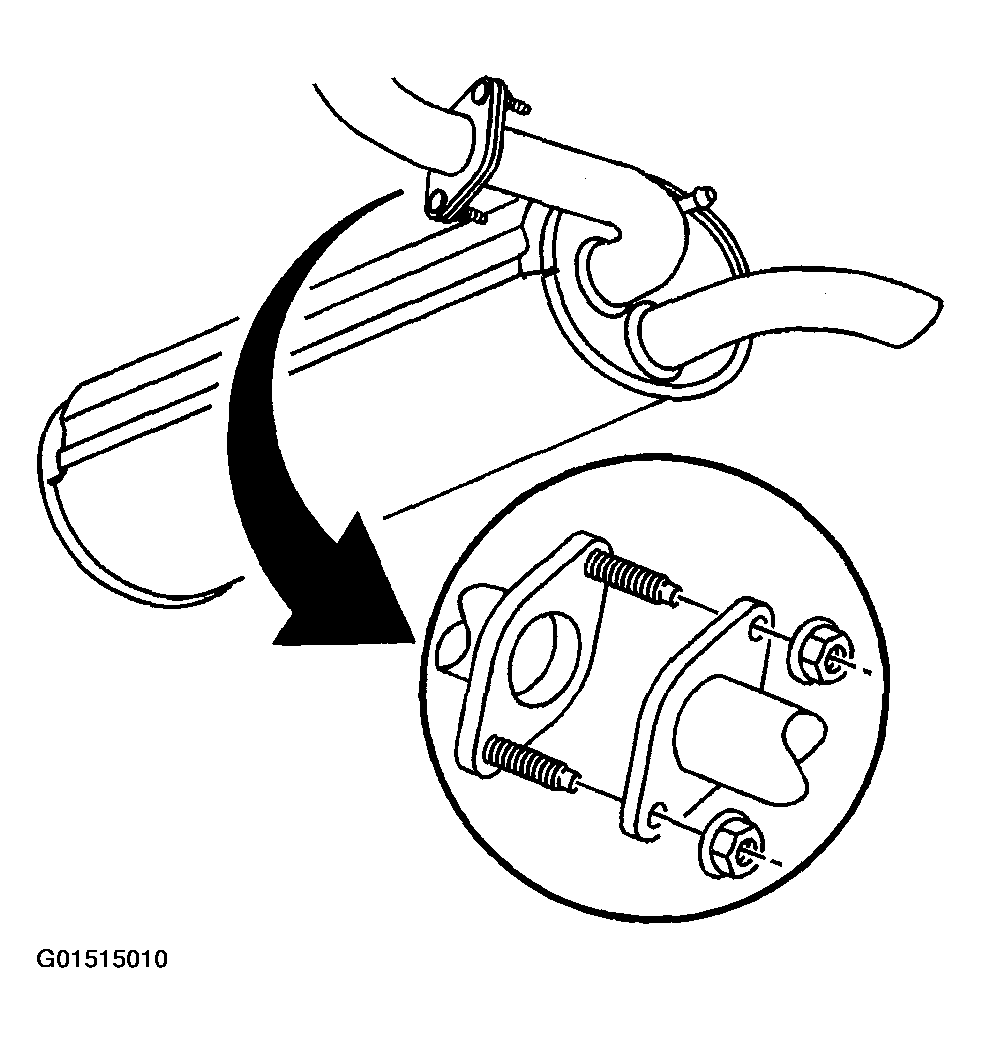

    Fig 2: Installing Muffler To Intermediate Pipe Nuts
    G01515010Courtesy of GENERAL MOTORS CORP.
