Hazard Switch Connector End View
Hazard Switch Connector End View

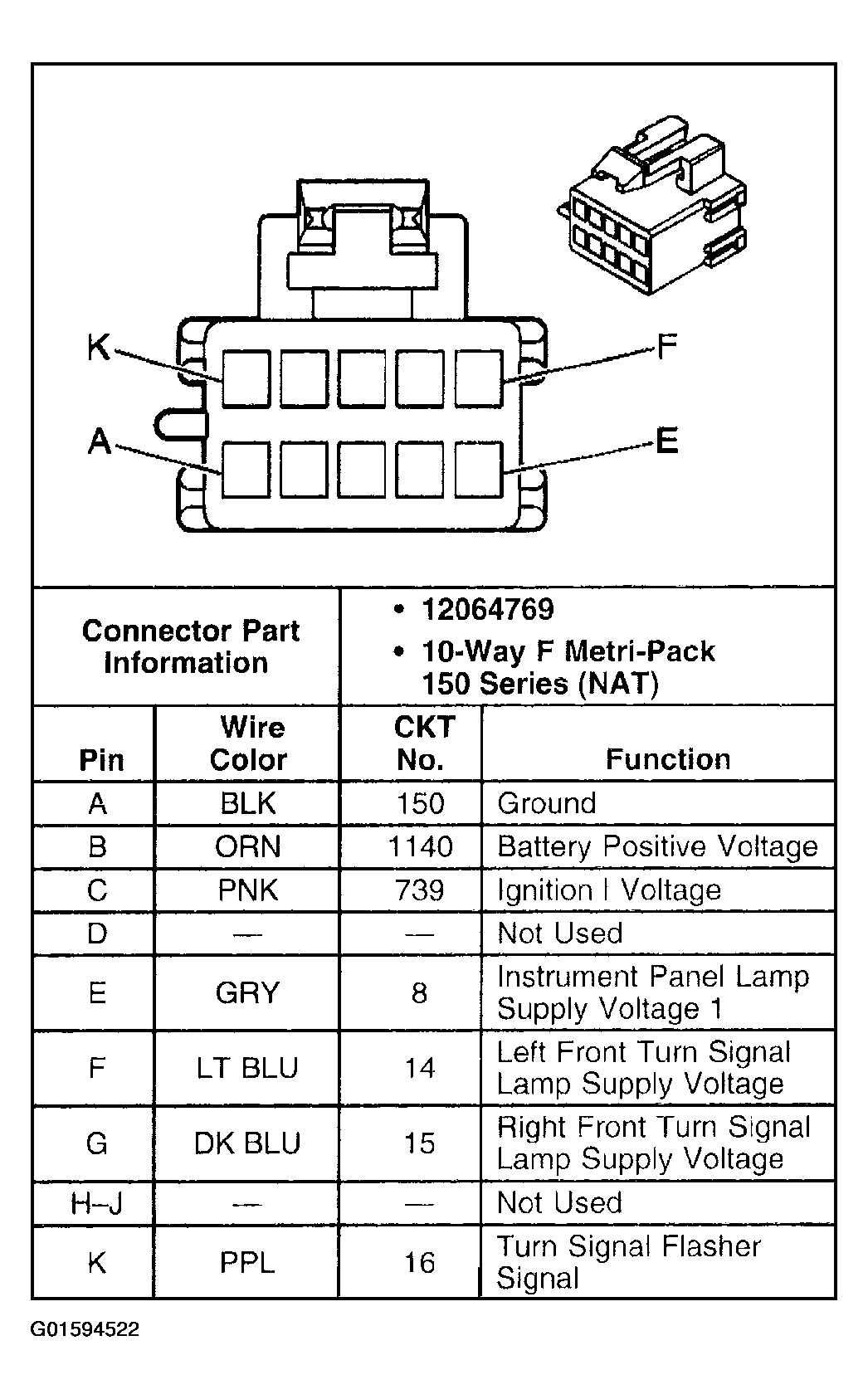

Fig 1: Hazard Switch Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
