Schematic and Routing Diagrams

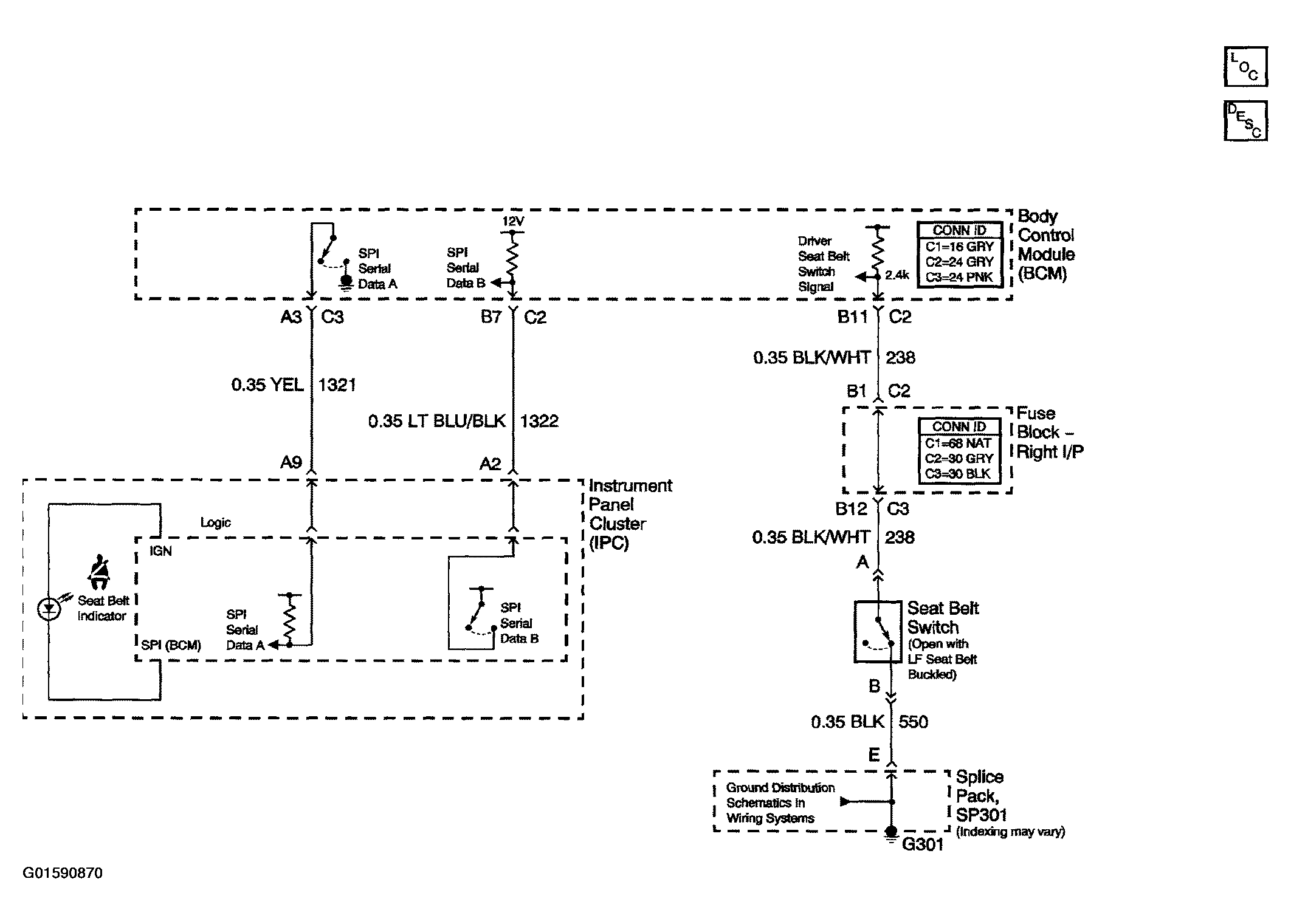

Fig 1: Seat Belt Schematics
G01590870Courtesy of GENERAL MOTORS CORP.
