Front Toe Adjustment
- Ensure that the steering wheel is set in a straight ahead position.

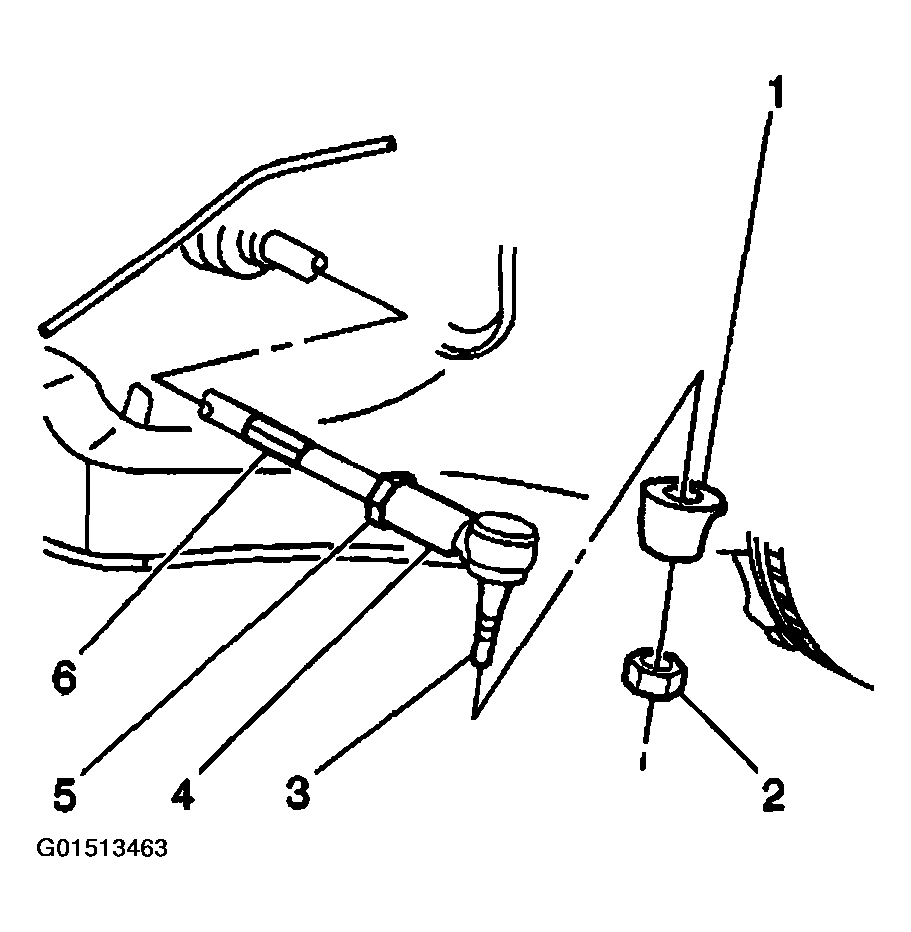

- Loosen the tie rod jam nut (5).
- Adjust the toe to specification by turning the adjuster (6). Refer to WHEEL ALIGNMENT SPECIFICATIONS
.NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
- Install the tie rod jam nut (5).
Tighten
Tighten the tie rod jam nut (5) to 68 N.m (50 lb ft).
