Installation Procedure

  1. Connect the BCM connectors to the BCM.
  2. Install the BCM module (2).
  3. Install the right sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT in Instrument Panel, Gages, and Console
  4. Program the BCM. Refer to BODY CONTROL MODULE (BCM) PROGRAMMING/RPO CONFIGURATION  .

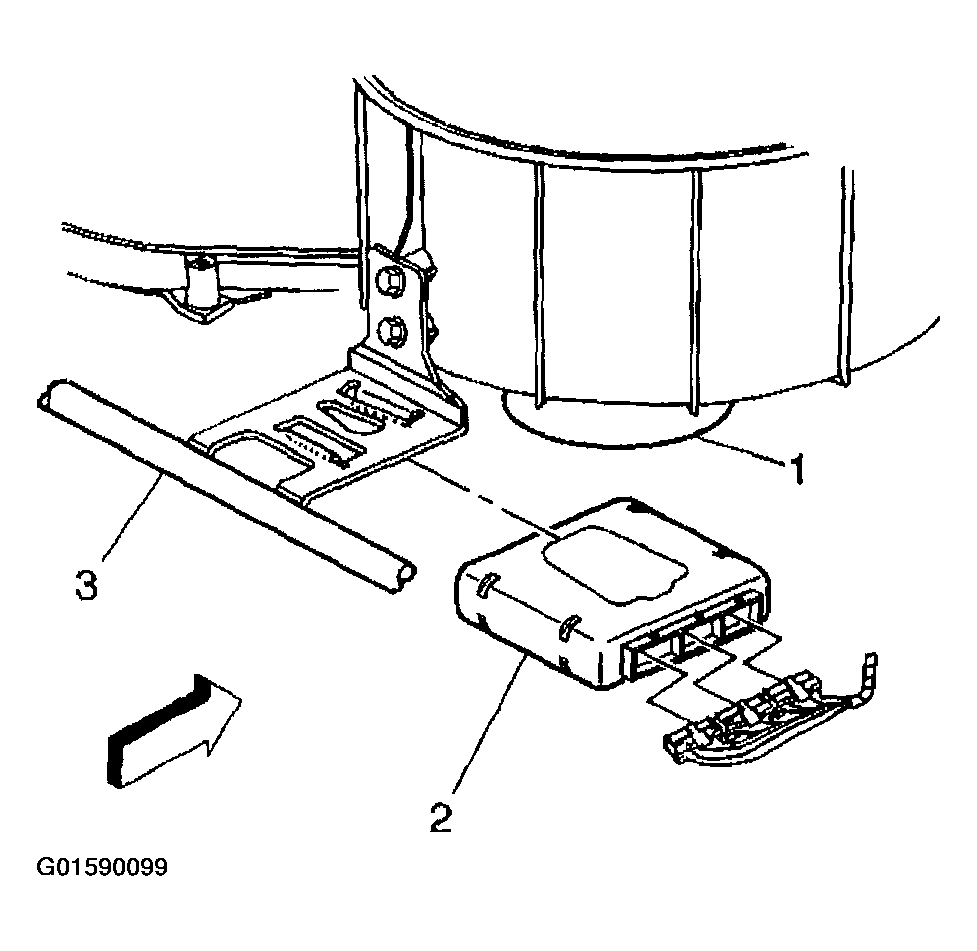

    Fig 1: Installing BCM & Connect BCM Connectors To BCM
    G01590099Courtesy of GENERAL MOTORS CORP.
