Removal Procedure

  1. Ensure that the ignition switch is in the off position.
  2. Remove the right sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT in Instrument Panel, Gages, and Console.
  3. Remove the body control module (BCM) (2).
  4. Disconnect the BCM connectors from the BCM.

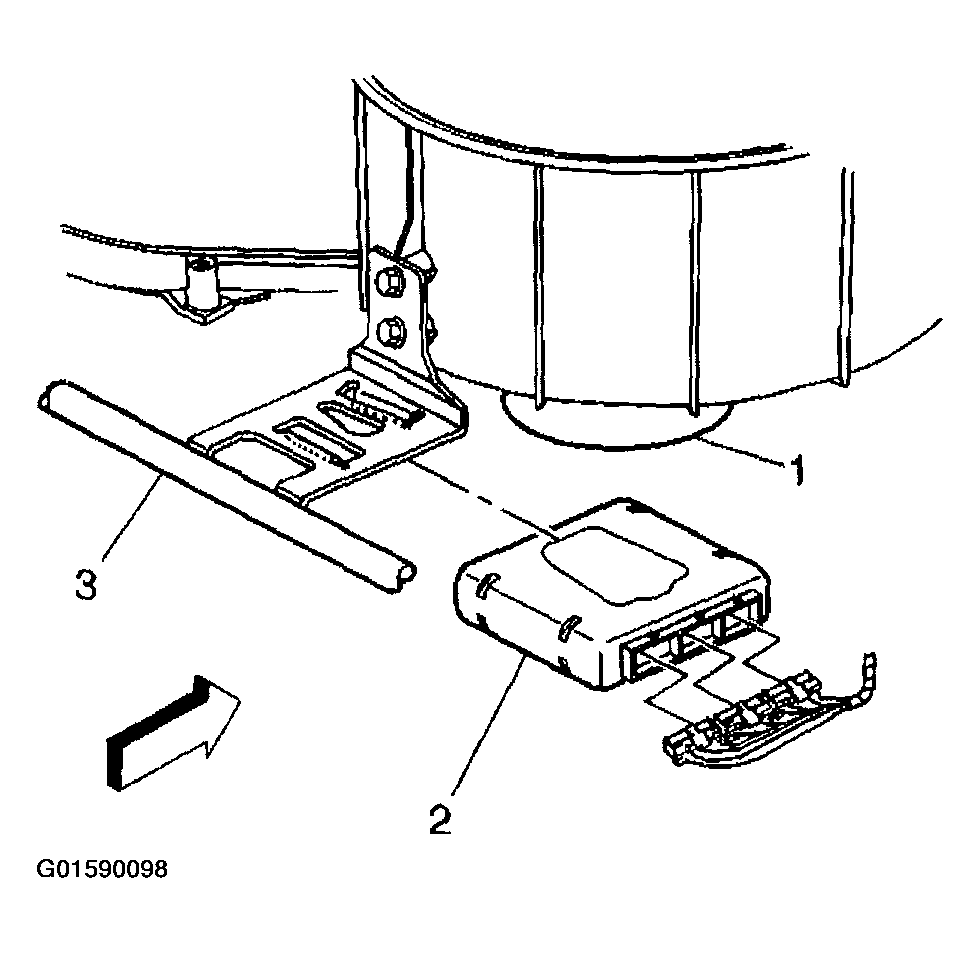

    Fig 1: Removing BCM & Disconnect BCM Connectors From BCM
    G01590098Courtesy of GENERAL MOTORS CORP.
