Power Door Systems Component Views

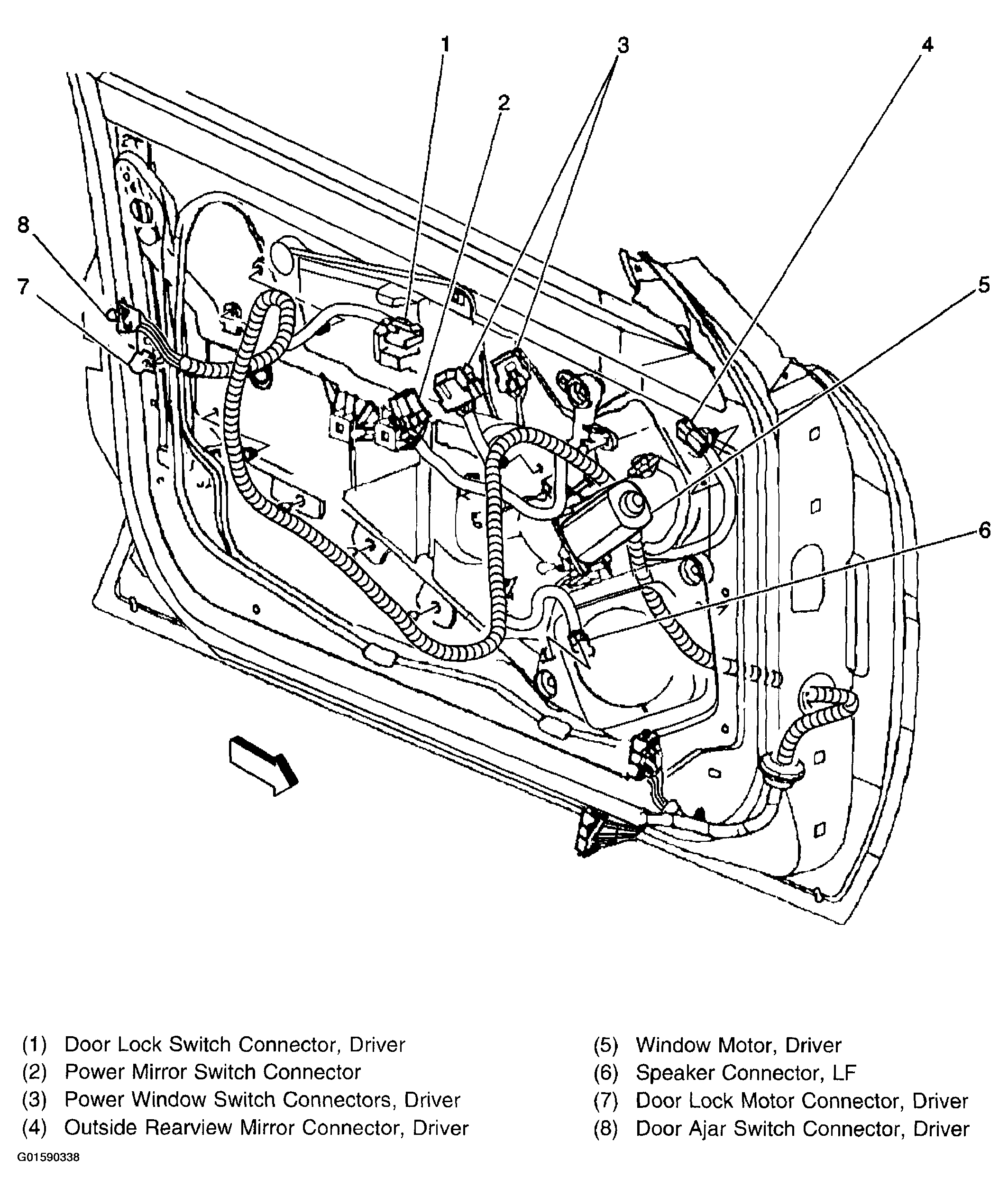

Fig 1: Locating Power Door Systems Components (Drivers Door)

Courtesy of GENERAL MOTORS CORP.

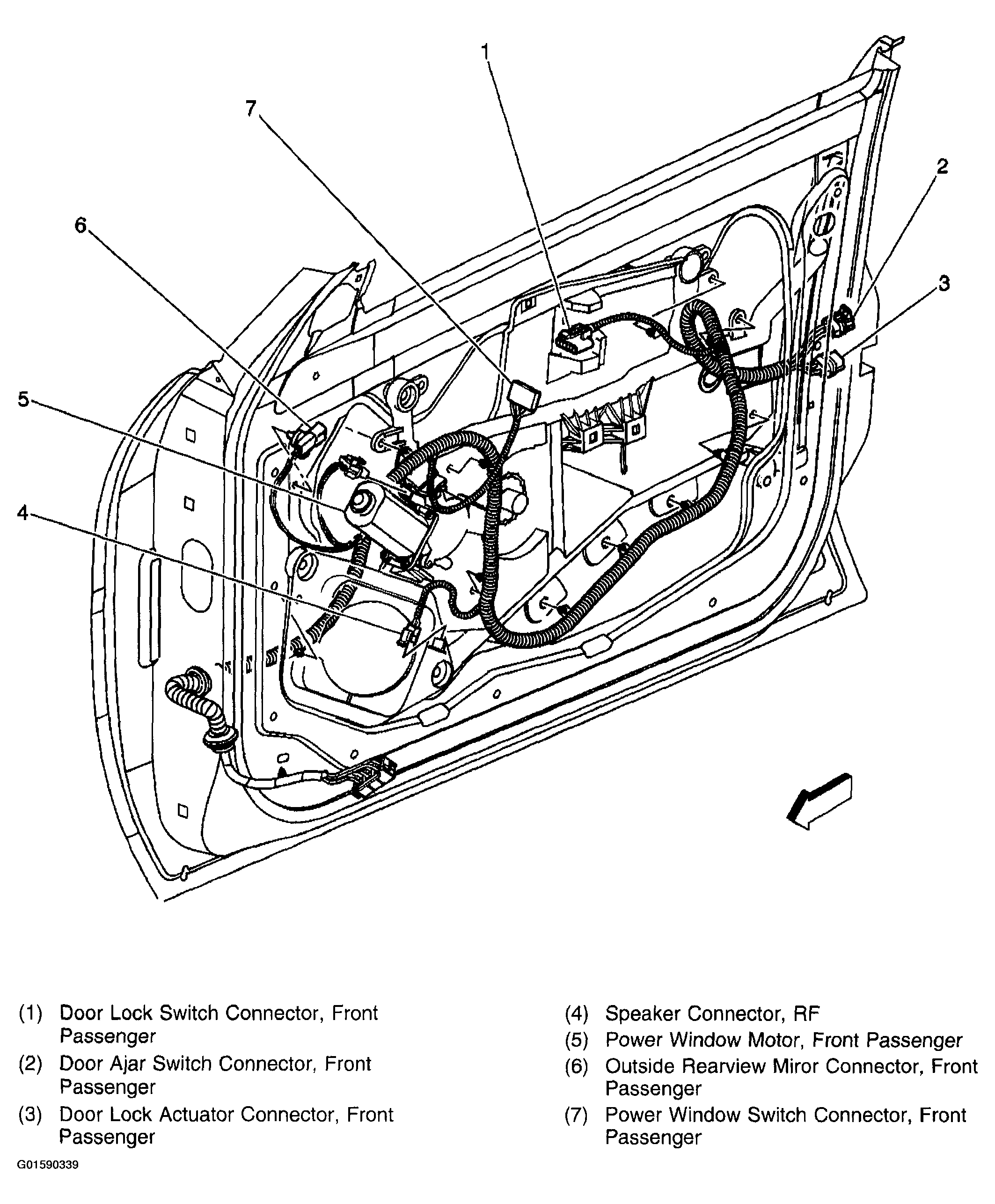

Fig 2: Locating Power Door Systems Components (Front Passenger Door)

Courtesy of GENERAL MOTORS CORP.

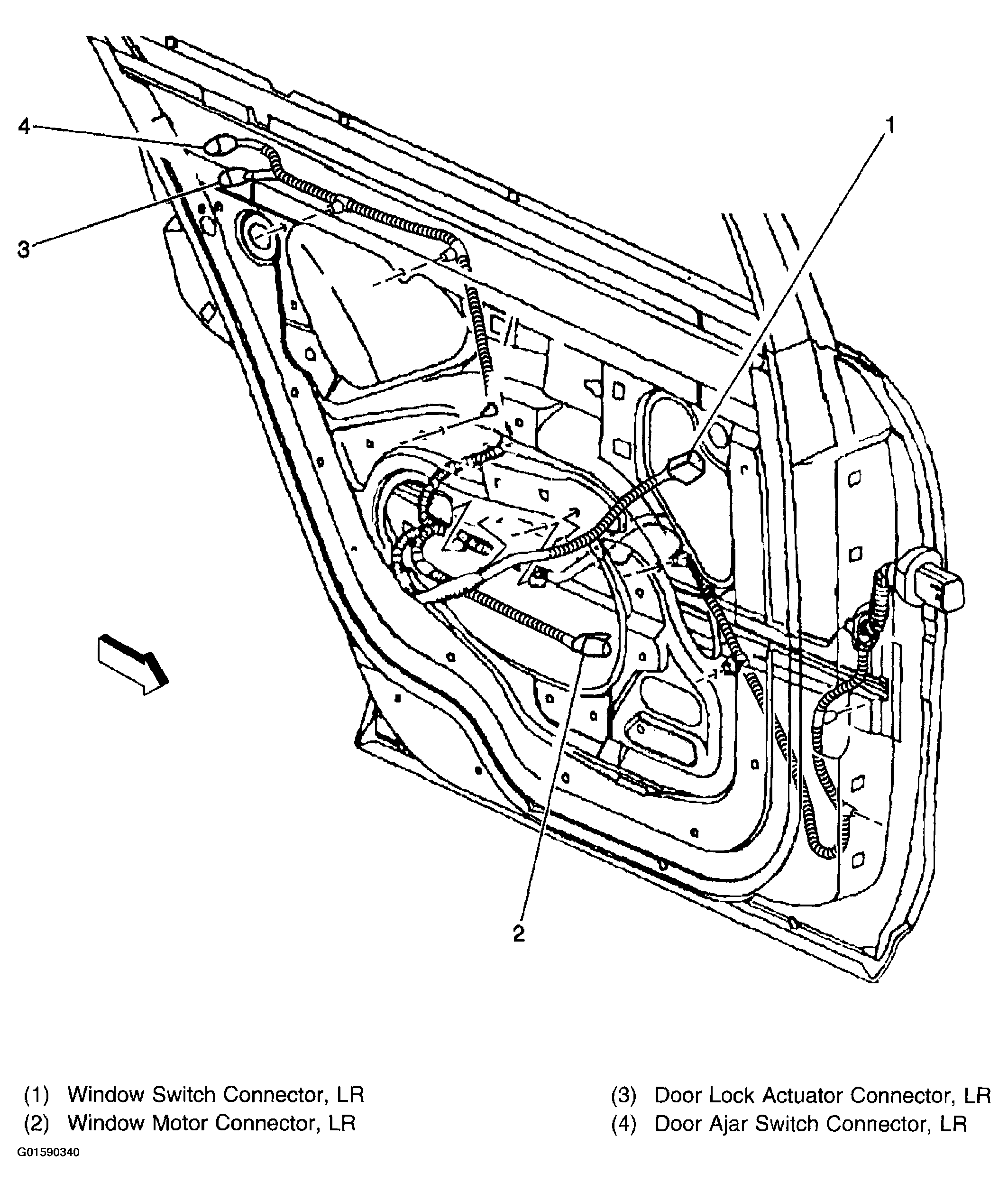

Fig 3: Locating Power Door Systems Components (Left Rear Door)

Courtesy of GENERAL MOTORS CORP.
