Engine Electrical Connector End Views

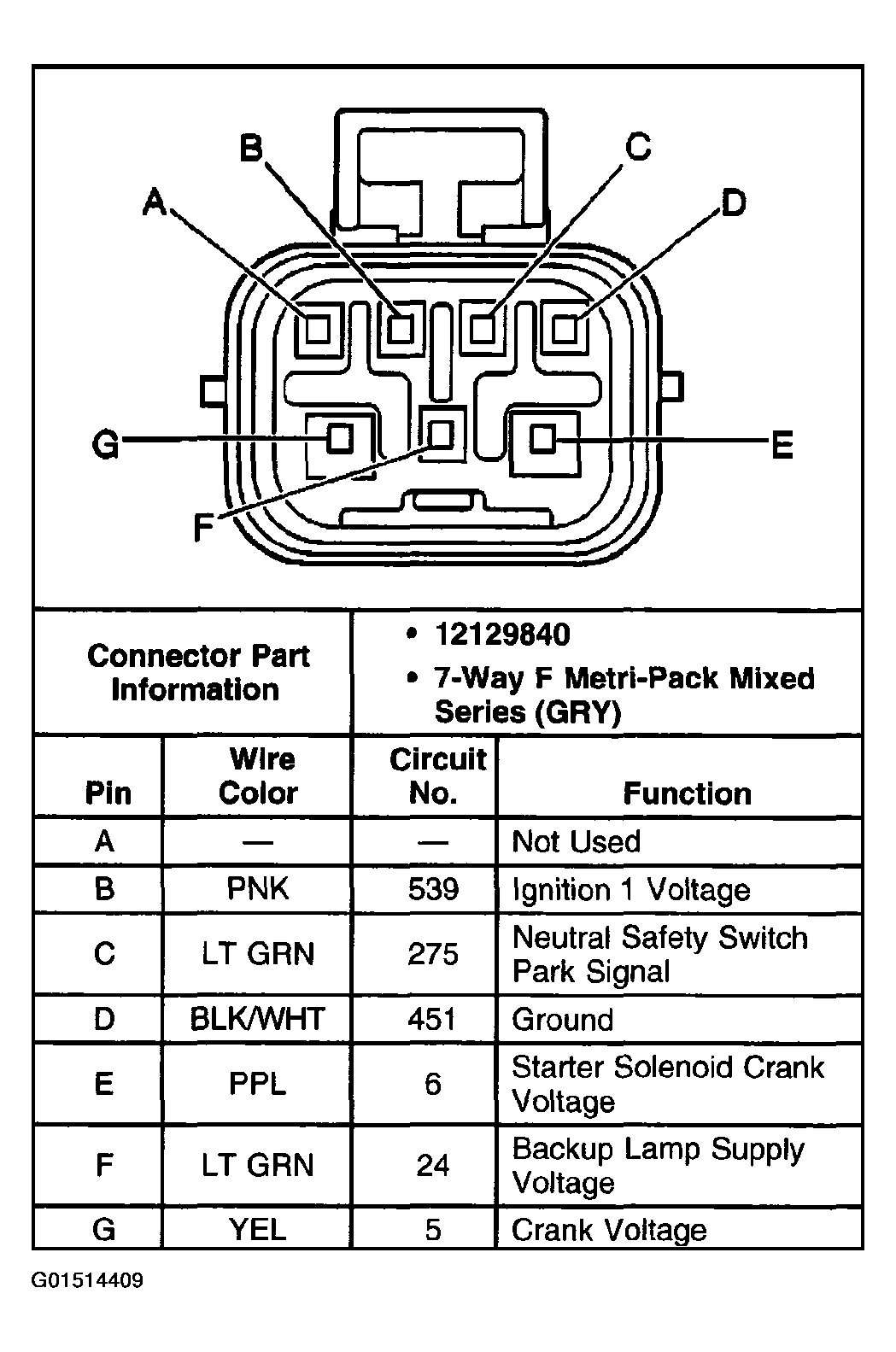

Fig 1: Engine Electrical Connector End Views - Park/Neutral Position (PNP) Switch C1

Courtesy of GENERAL MOTORS CORP.

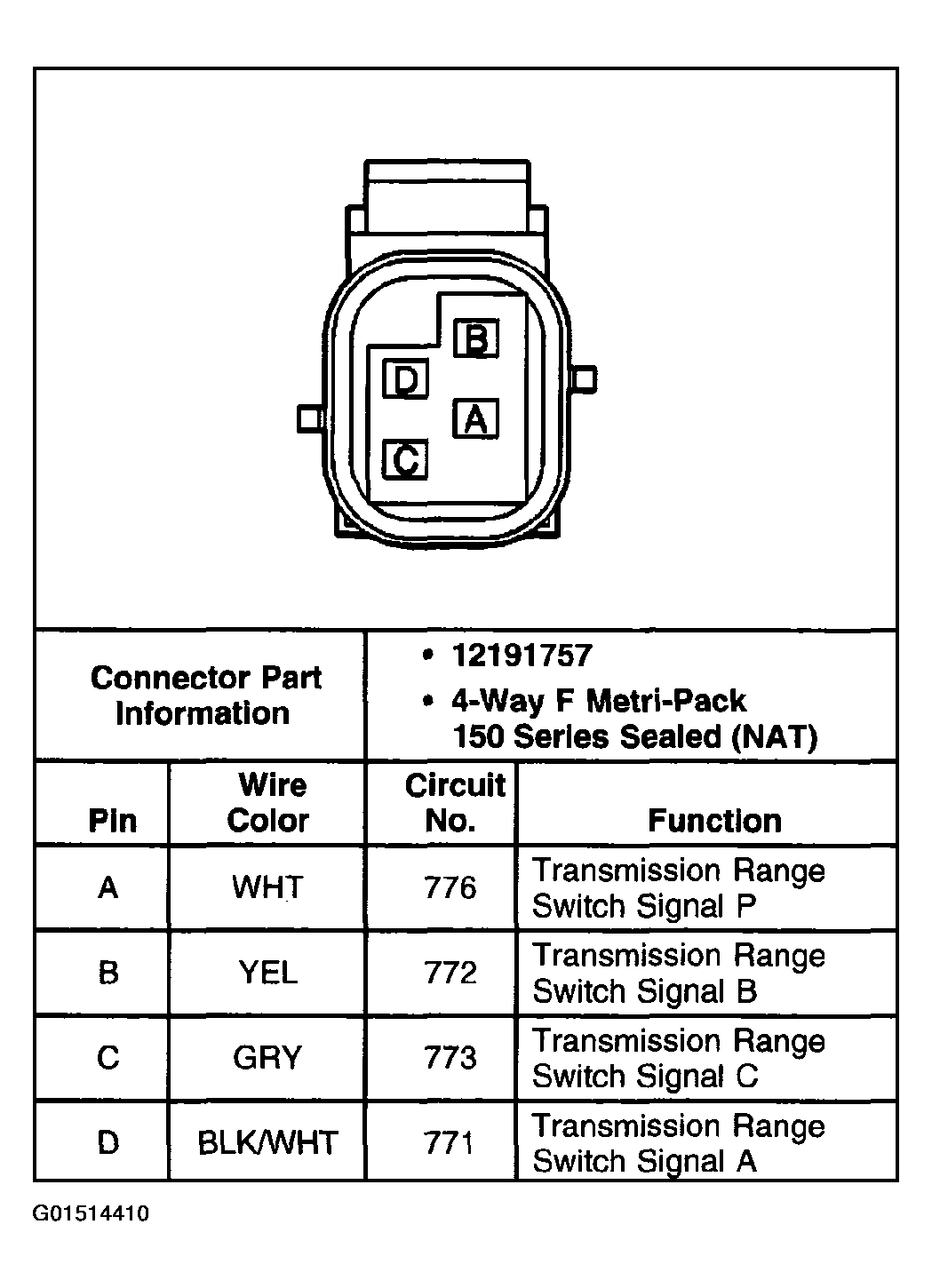

Fig 2: Engine Electrical Connector End Views - Park/Neutral Position (PNP) Switch C2

Courtesy of GENERAL MOTORS CORP.
