I/P Compartment Lamp/Switch Connector End View
I/P Compartment Lamp/Switch Connector End View

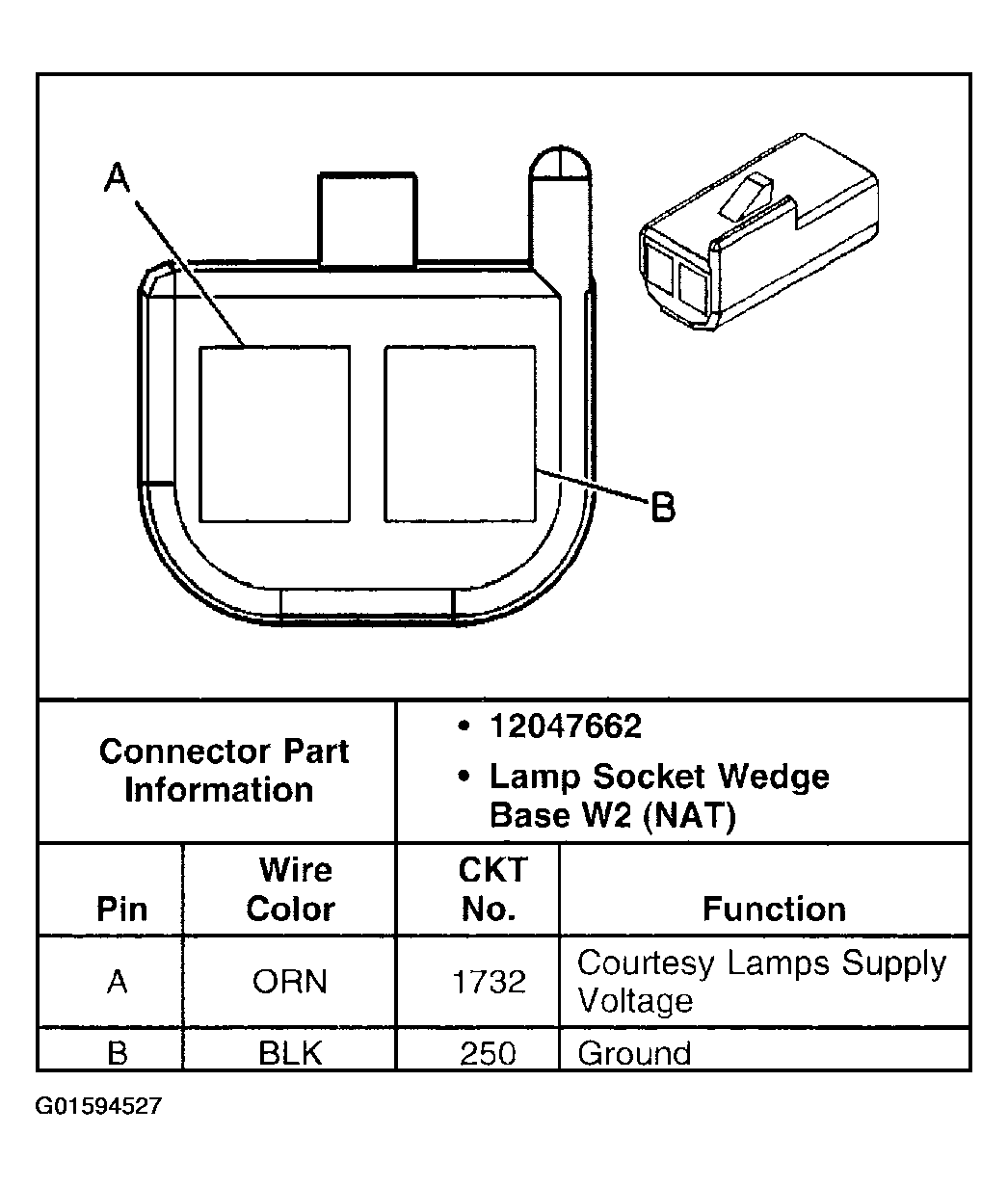

Fig 1: I/P Compartment Lamp/Switch Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
