Installation Procedure

    Fig 1: View Of Frame Lower Cushions
    GM757746Courtesy of GENERAL MOTORS CORP.
  1. Install the upper cushions (2) to the vehicle.
  2. Raise the frame slightly on the hoist.
    3. NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the lower cushions, retainers, and bolts to the 5 body mount locations.

    Tighten:  Tighten the bolts to 80 N.m (59 lb ft).

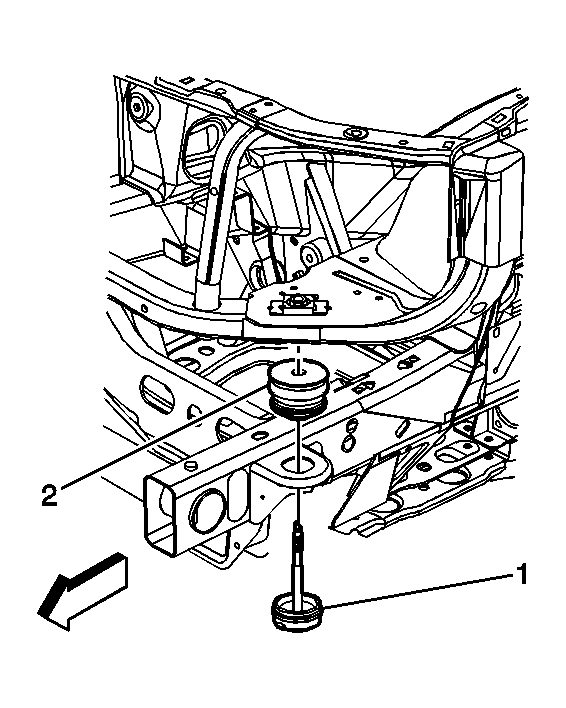

    4. Fig 2: Body Mount Bolt, Retainer, And Lower Cushion
    GM757748Courtesy of GENERAL MOTORS CORP.
  4. Install the lower cushion (1), the retainer, and the bolt to the radiator support.

    Tighten:  Tighten the bolts to 80 N.m (59 lb ft).
