Removal Procedure

  1. Remove the door sill plate. Refer to Door Sill Plate Replacement in Interior Trim.

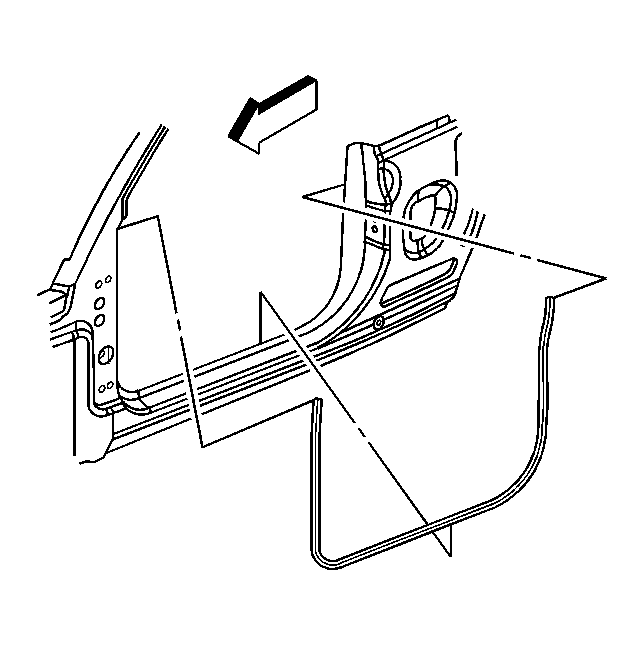

    2. Fig 1: View of Door Weatherstrip
    GM955914Courtesy of GENERAL MOTORS CORP.
  2. Remove the door weatherstrip from the pinch-weld flange.
