Inside Rearview Mirror Schematics
Inside Rearview Mirror Schematics

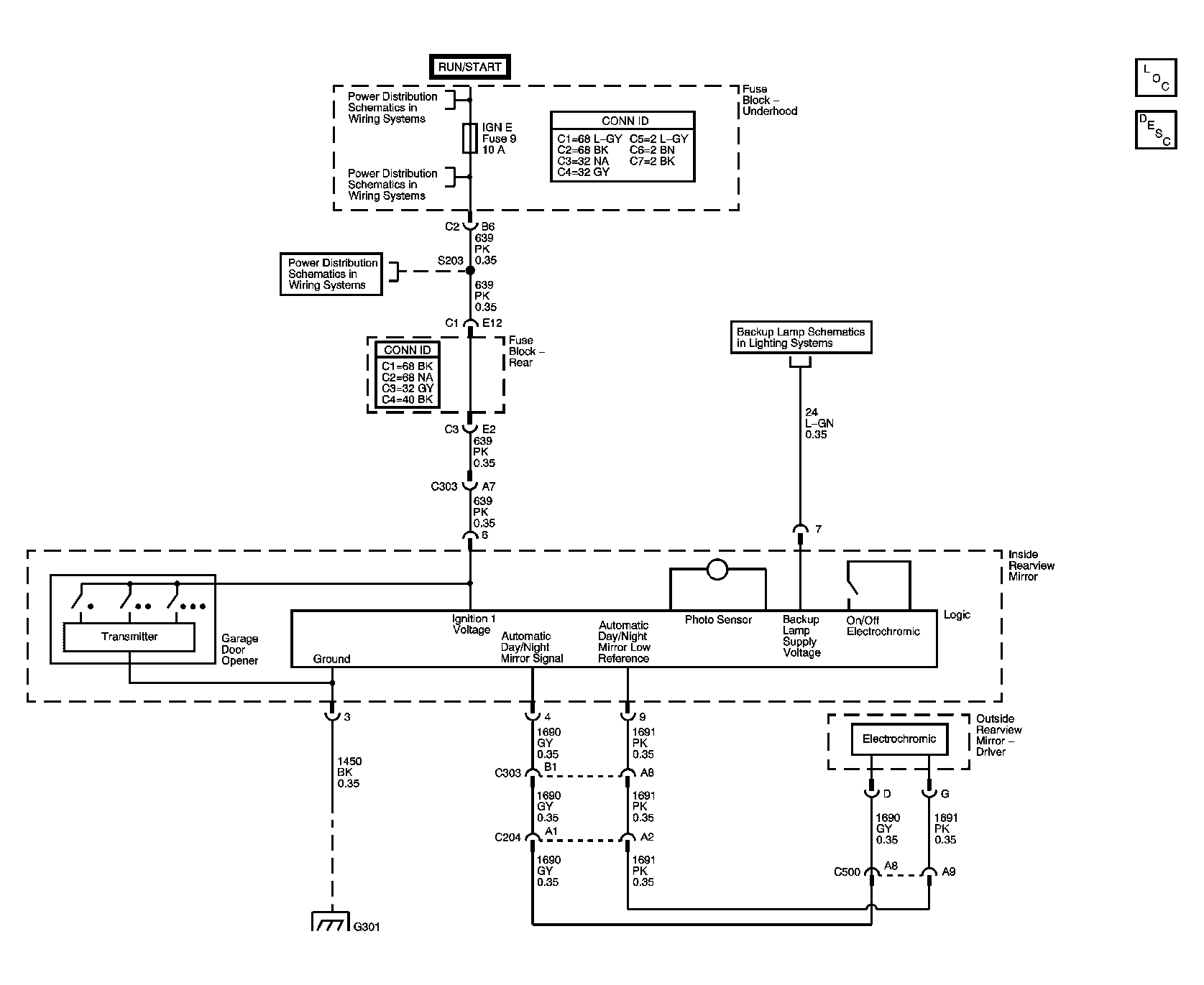

Fig 1: Inside Rearview Mirror Schematics
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
