ABS Schematics

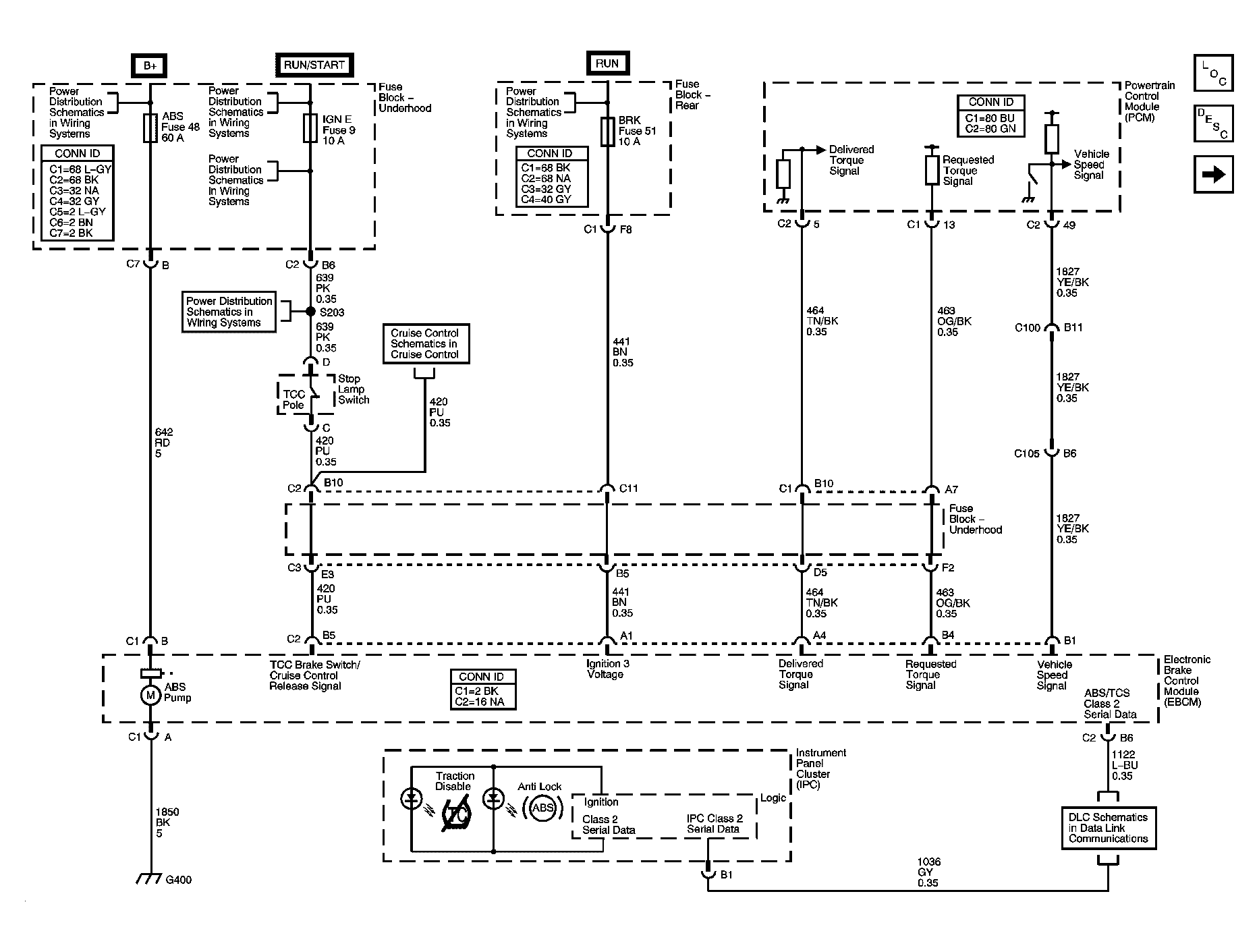

Fig 1: Power, Ground and Electronic Brake Control Module
GM1206933Courtesy of GENERAL MOTORS CORP.

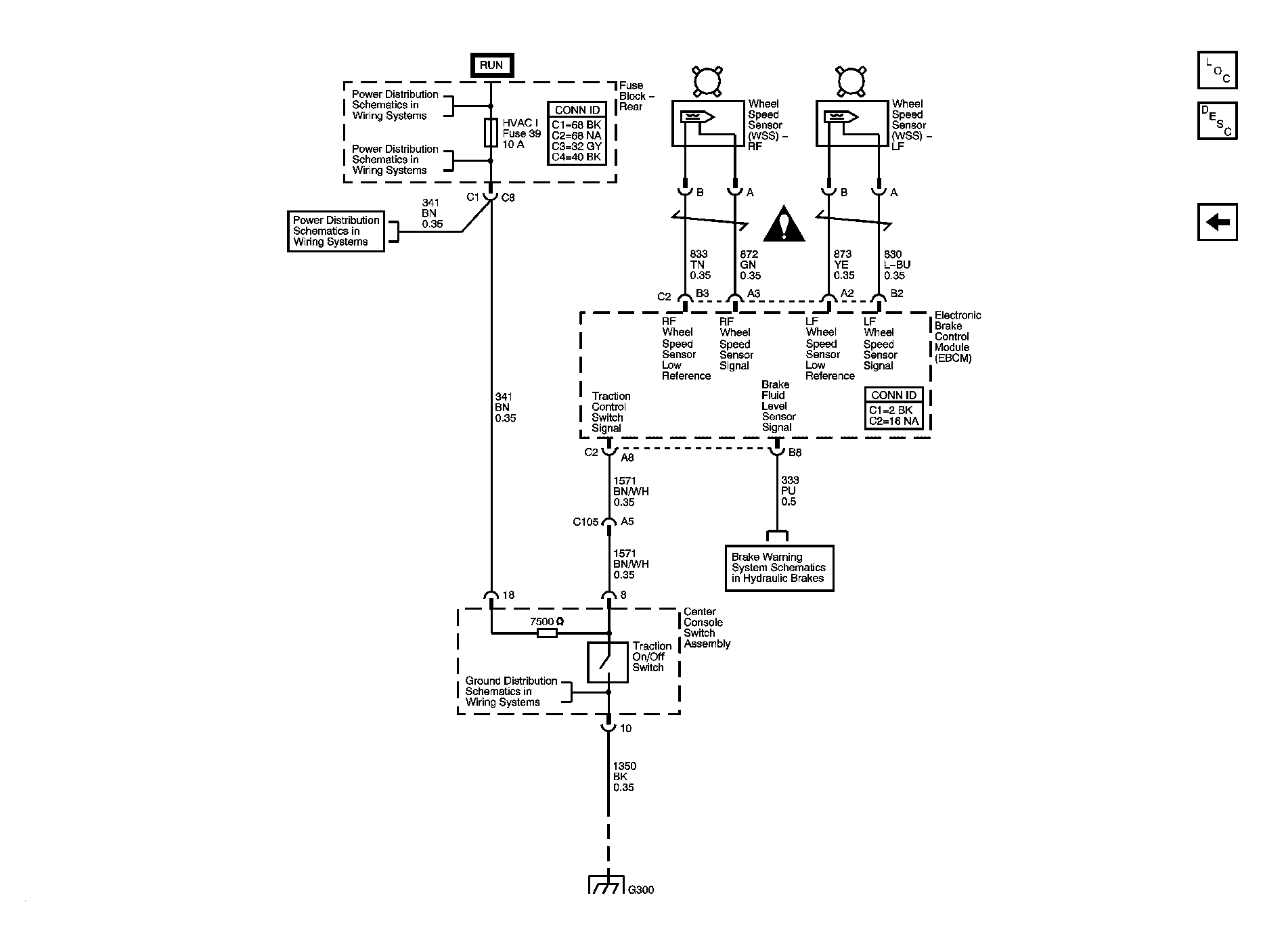

Fig 2: Wheel Speed Sensors and Traction Control
GM1206958Courtesy of GENERAL MOTORS CORP.
