Connector Identification

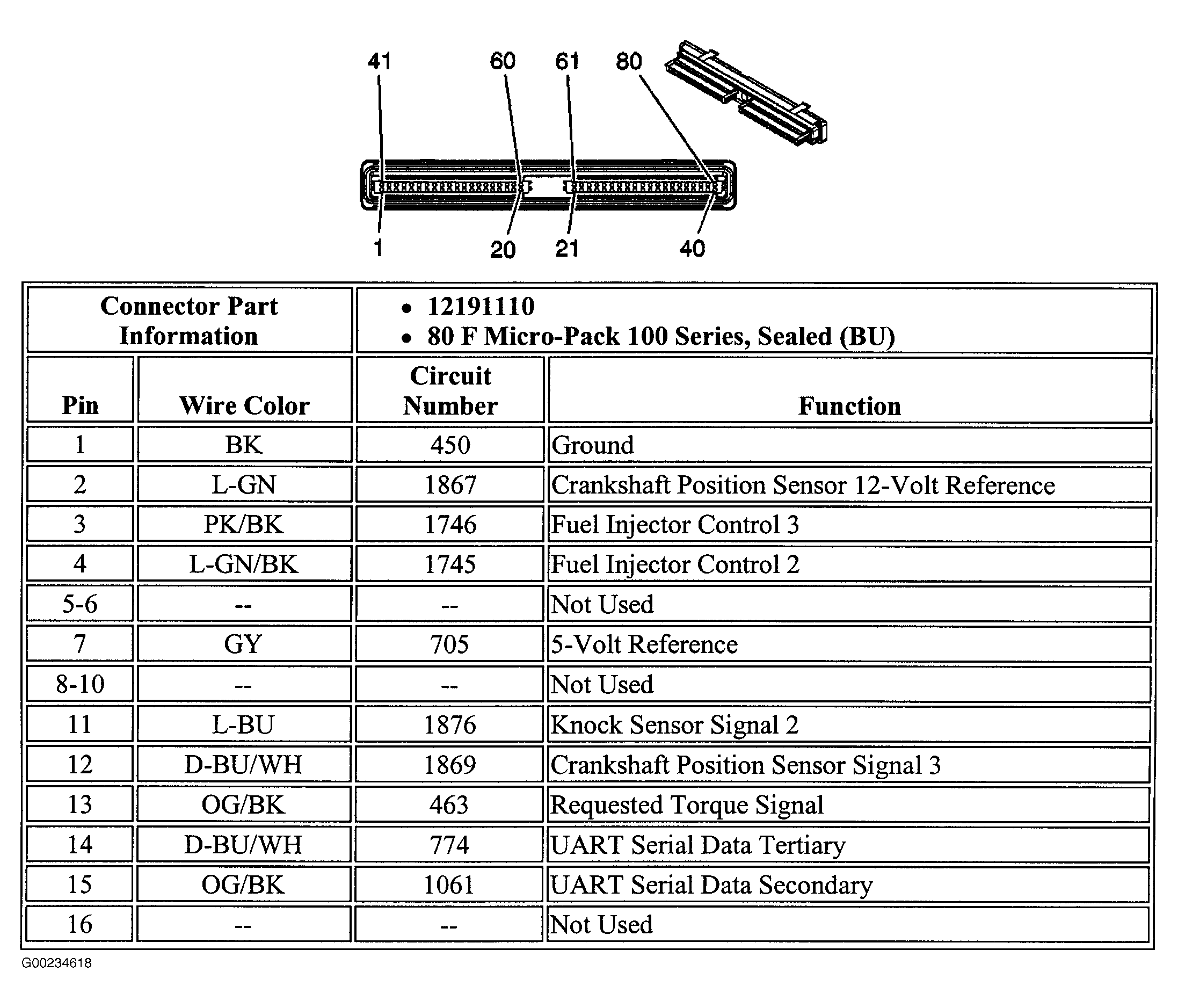

Fig 1: Identifying PCM Connector C1 (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

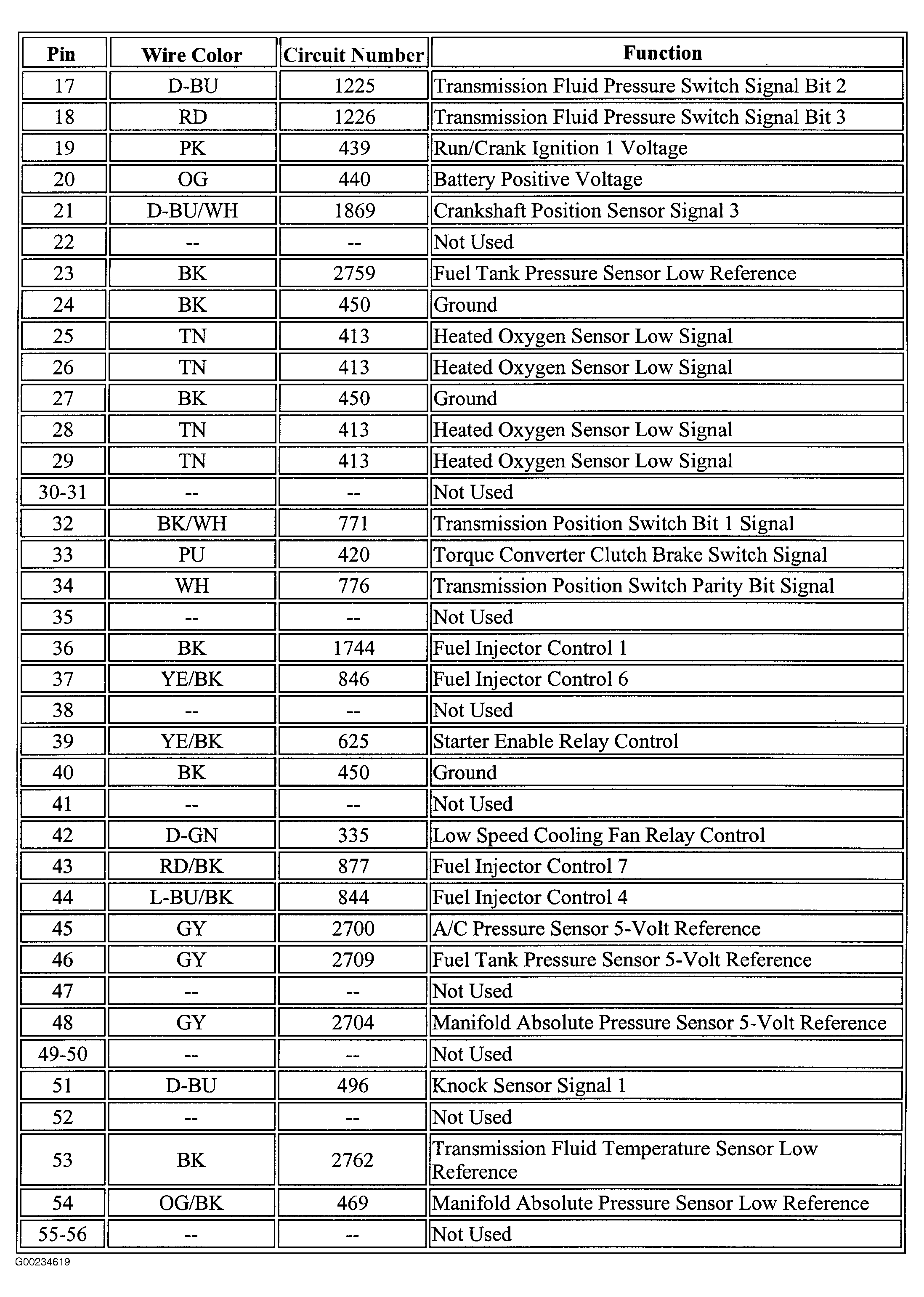

Fig 2: Identifying PCM Connector C1 (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

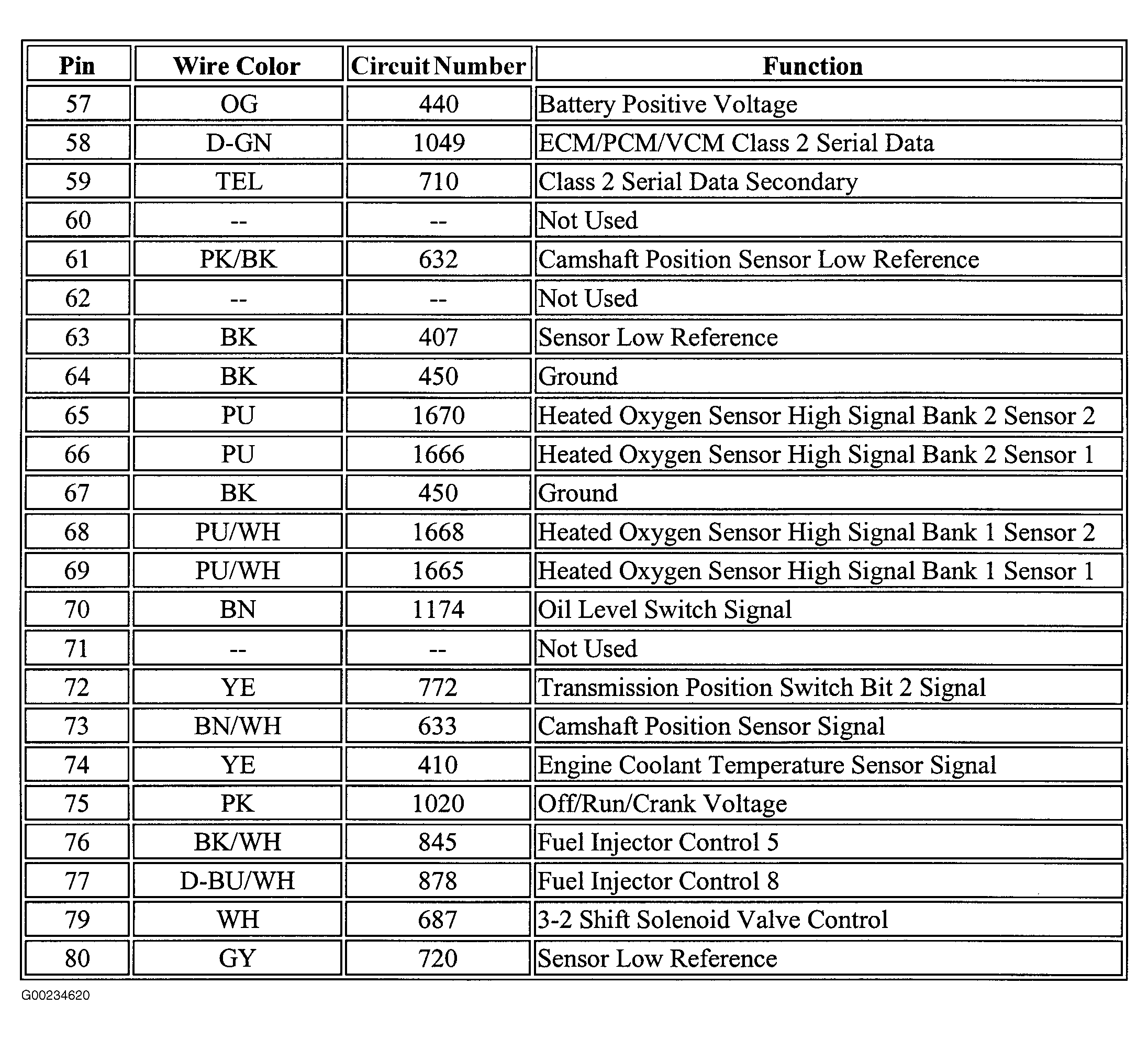

Fig 3: Identifying PCM Connector C1 (3 Of 3)

Courtesy of GENERAL MOTORS CORP.

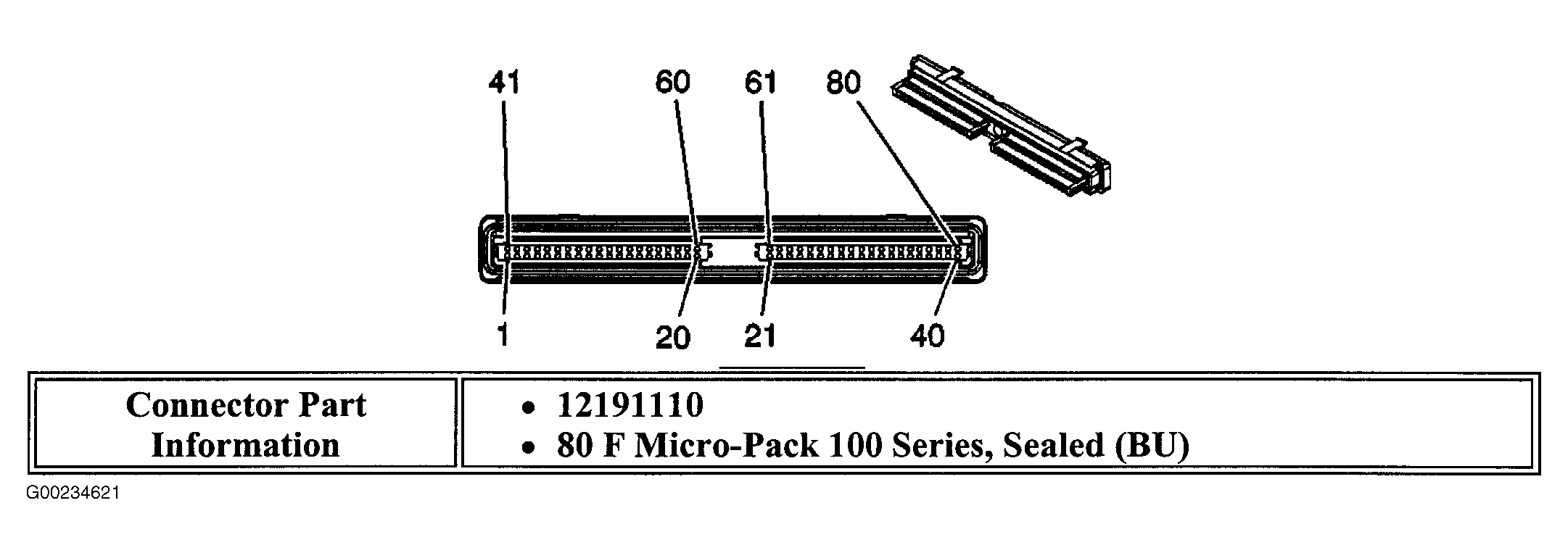

Fig 4: Identifying PCM Connector C2 (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

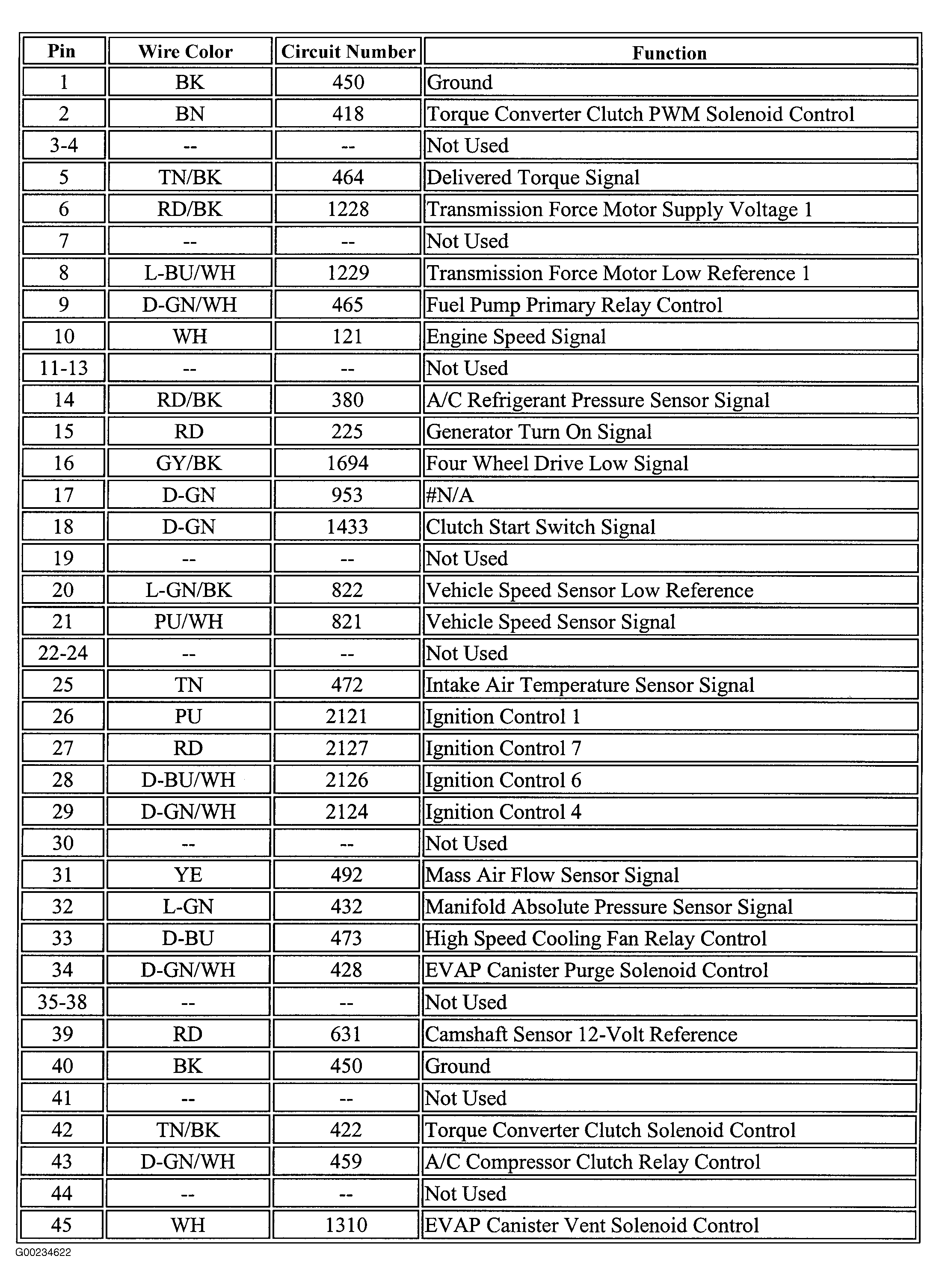

Fig 5: Identifying PCM Connector C2 (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

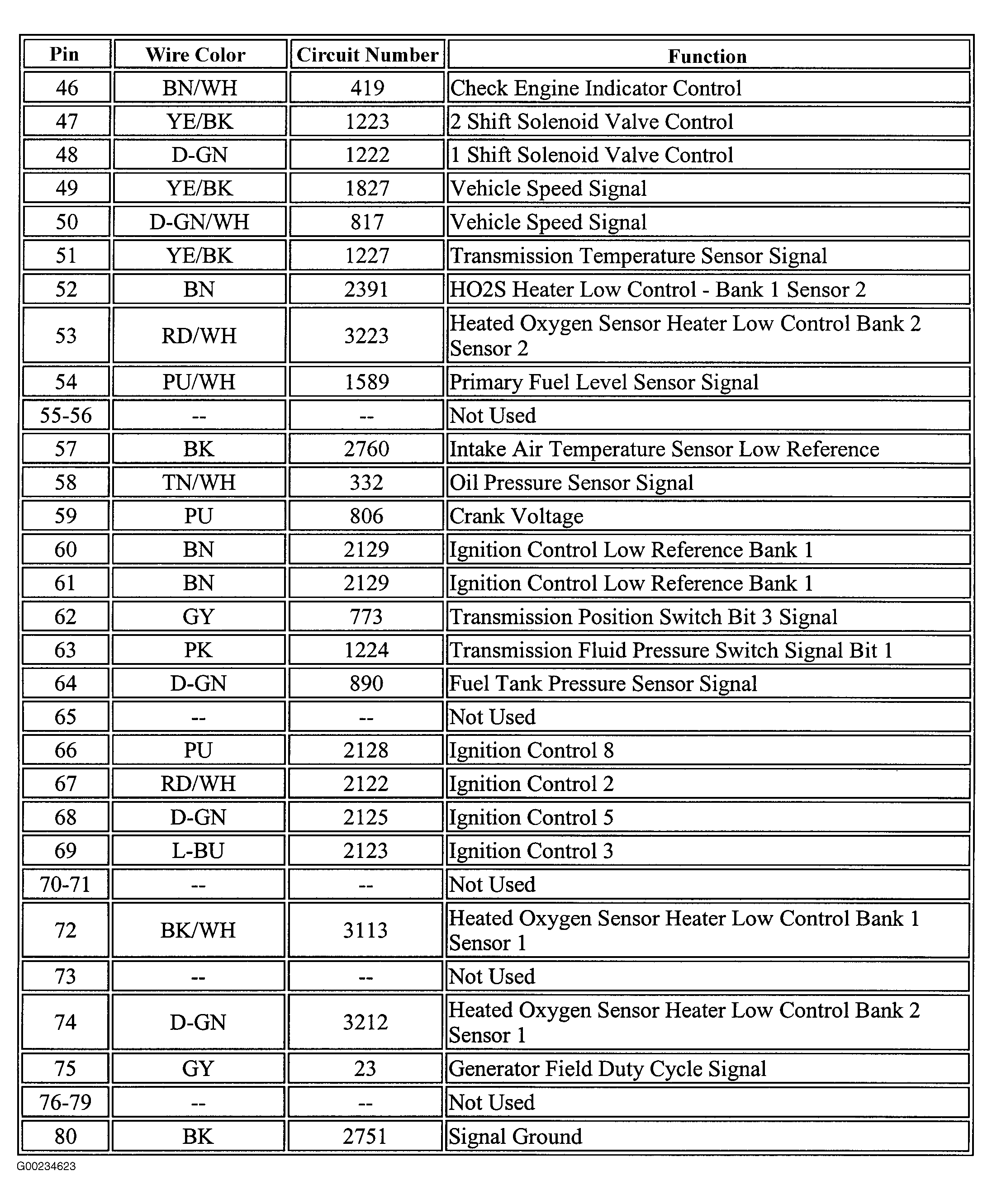

Fig 6: Identifying PCM Connector C2 (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
