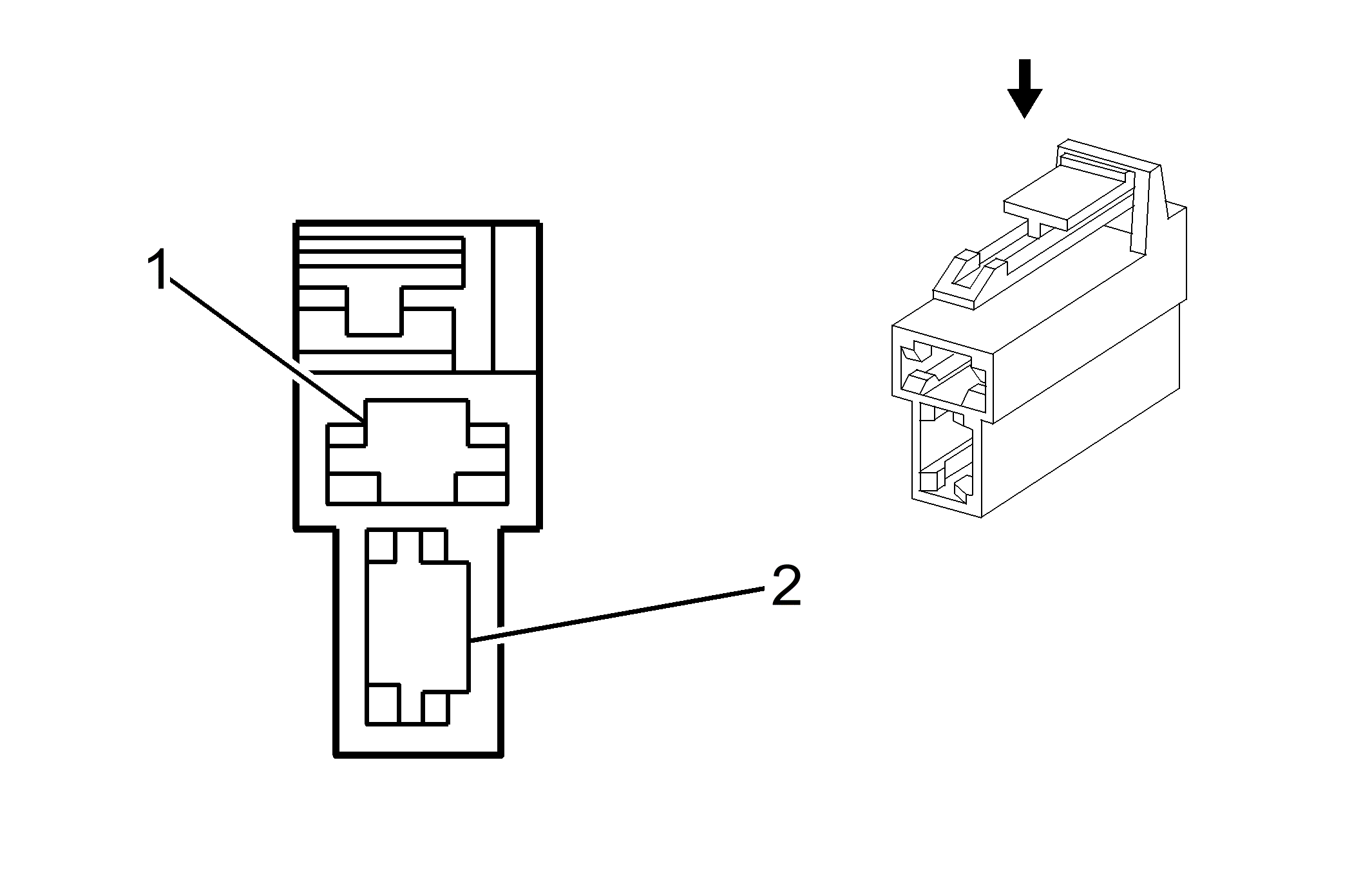

Blower Motor Connector End View

Blower Motor

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		7123-6020 2-Way F Unsealed (NA)
Pin	Wire Color	Circuit No.	Function
1	RD	542	Battery Positive Voltage
2	OG	52	High Blower Motor Control
