Radio Antenna Module Connector End View

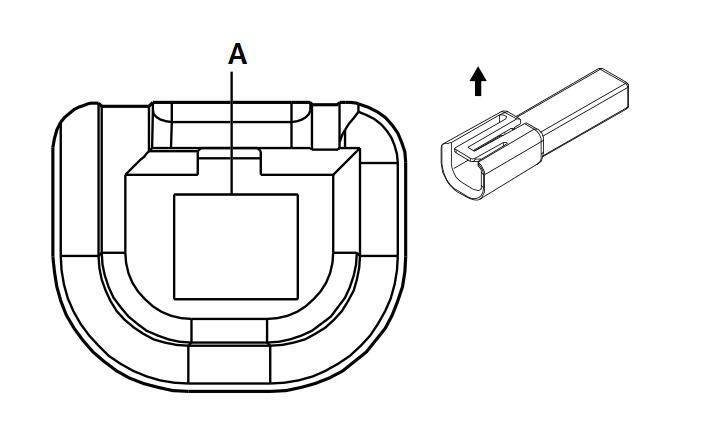

Radio Antenna Module

GM611495Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047683
  • 1-Way M Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A GY 1698 Antenna Select Supply Voltage
