Fuse Block - Underhood, Top View

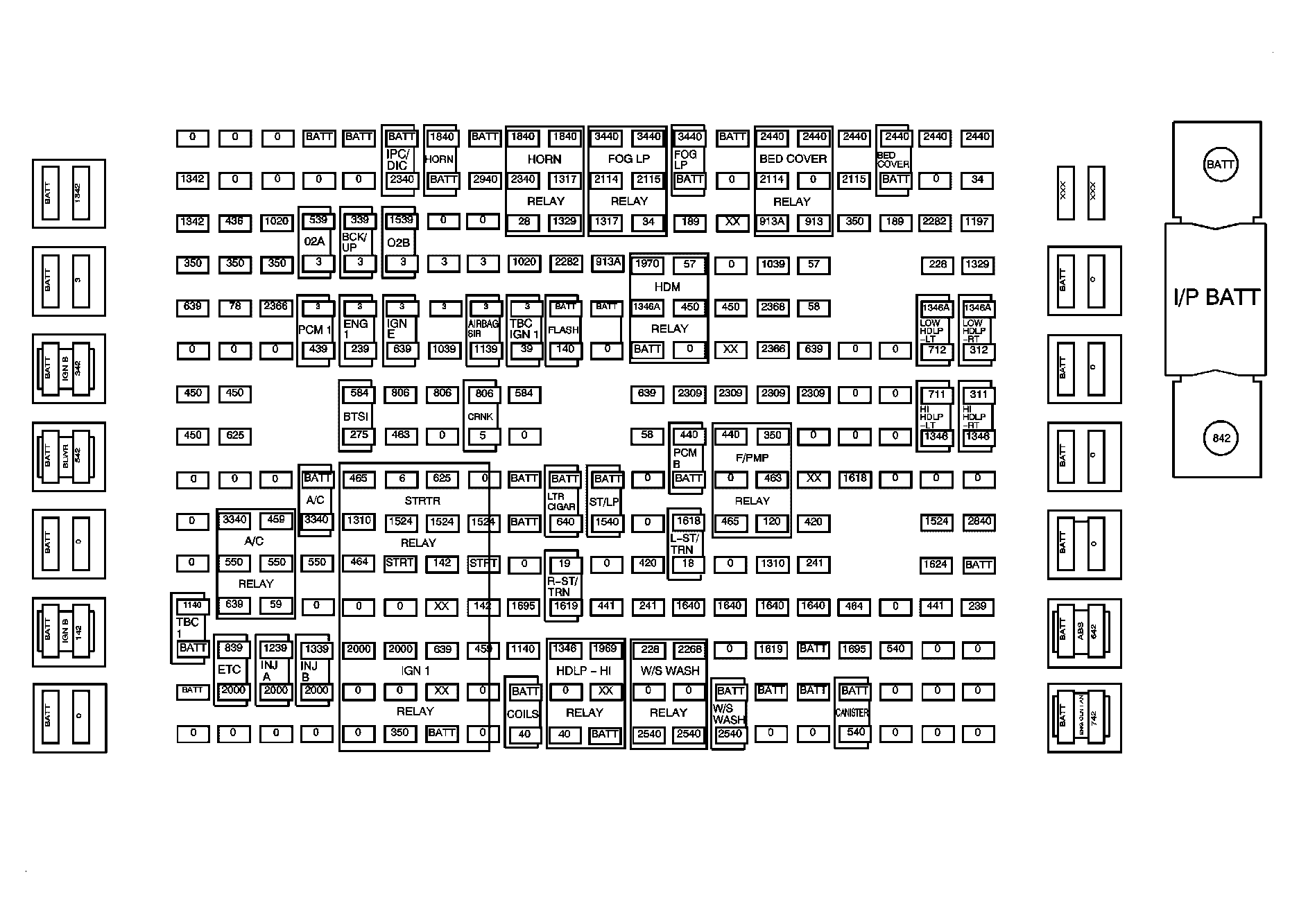

Fig 1: Fuse Block - Underhood, Top View
GM1360908Courtesy of GENERAL MOTORS CORP.
