Horns Component Views

Fig 1: Horn Switch Component View
GM1291221Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Turn Signal/Multifunction Switch
2 Hazard Switch
3 Mode AM/FM Switch
4 Volume UP/DOWN Switch
5 Select Personalization Switch
6 Fuel/Trip Switch
7 Data Link Connector
8 Headlamp Switch

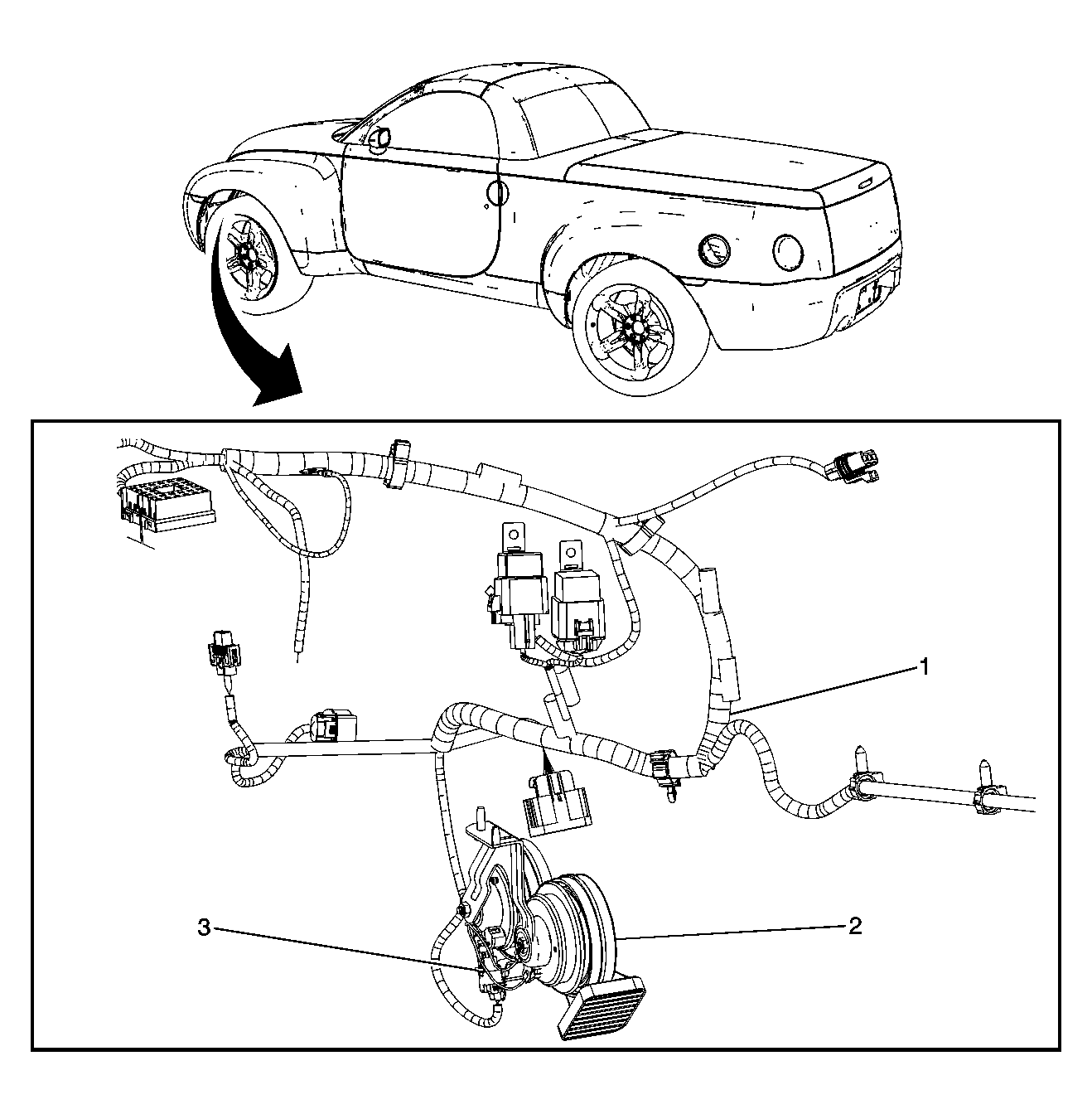

Fig 2: Horn Assembly Component View
GM1336152Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Forward Lamp Harness
2 Horn Assembly
3 Horn Assembly Connector
