Installation Procedure

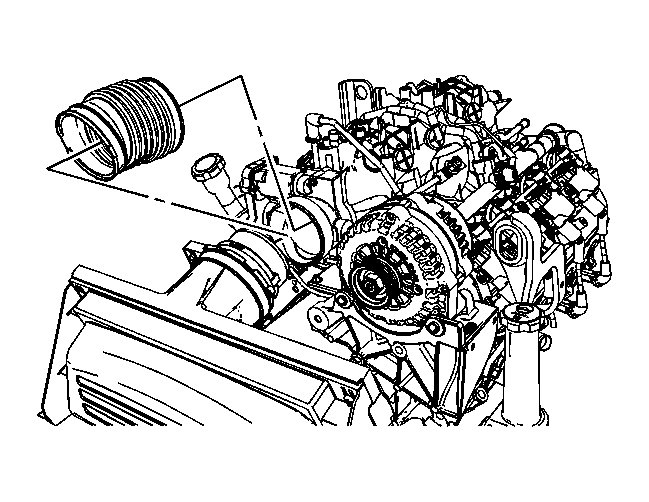

    Fig 1: View of Air Cleaner Outlet Duct
    GM1275968Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the air cleaner outlet duct.

    Tighten:  Tighten clamps to 4 N.m (35 lb in).

  2. Close the hood.
