Installation Procedure

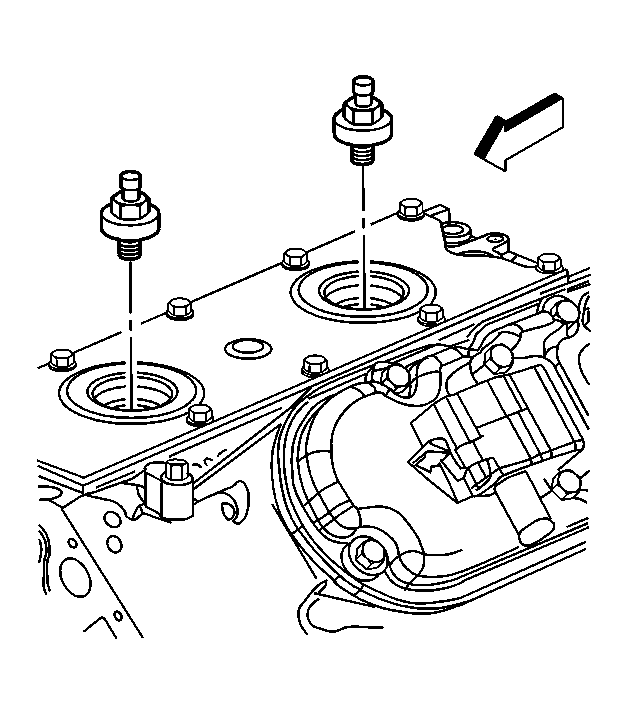

    Fig 1: Identifying Knock Sensors
    GM54612Courtesy of GENERAL MOTORS CORP.
  1. Install the KS.

    Tighten:  Torque the sensor to 20 N.m (15 lb ft).

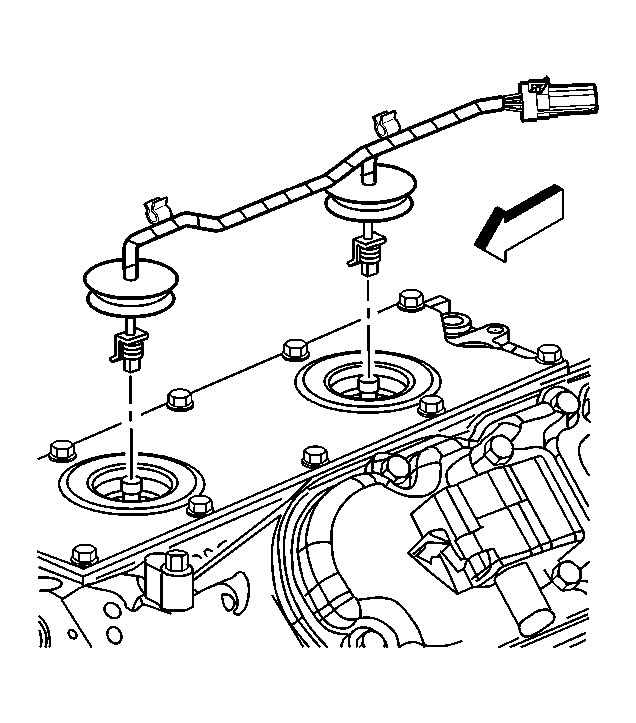

    2. Fig 2: Knock Sensor Wiring Harness Assembly
    GM54608Courtesy of GENERAL MOTORS CORP.
  2. Install the KS wiring harness assembly.
  3. Install the intake manifold. Refer to Intake Manifold Replacement in Engine Mechanical.
