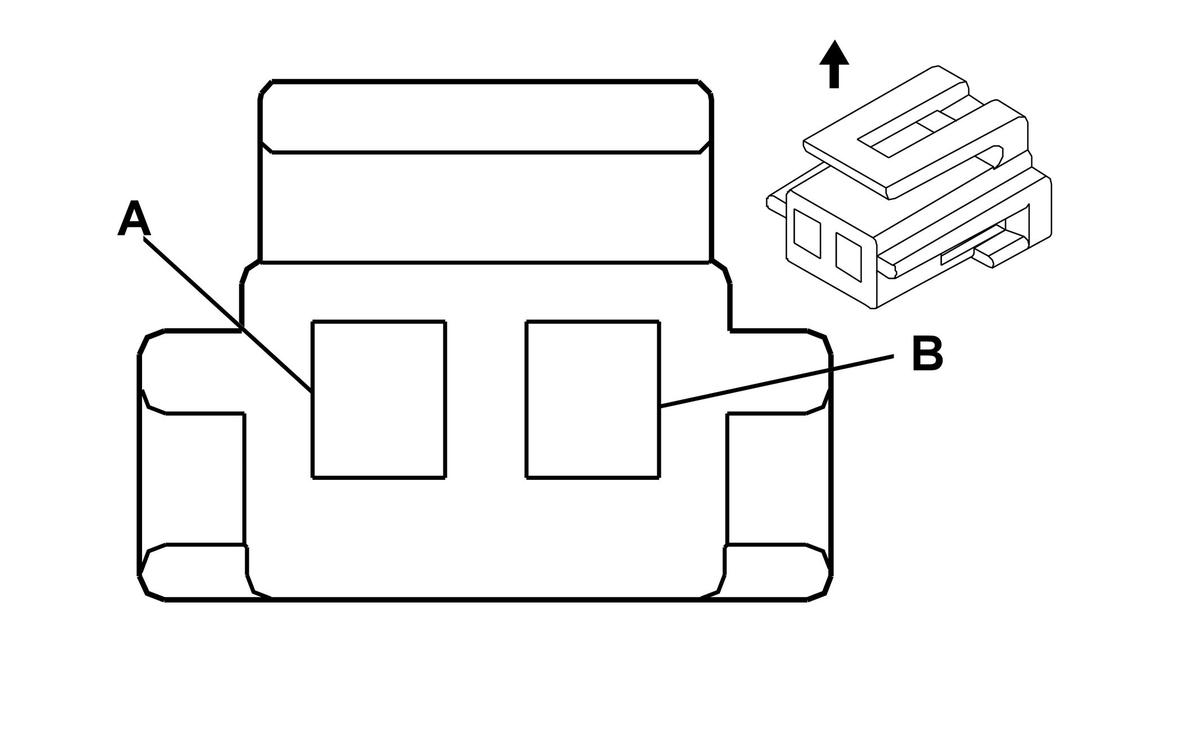

Recirculation Actuator Connector End View

Recirculation Actuator

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12059110 2-Way F Metri-Pack 150 Series (BK)
Pin	Wire Color	Circuit No.	Function
A	PK/WH	1648	Close Recirculation Door Control
B	L-GN/BK	1647	Open Recirculation Door Control
