Power Windows Inoperative-Lockout Function

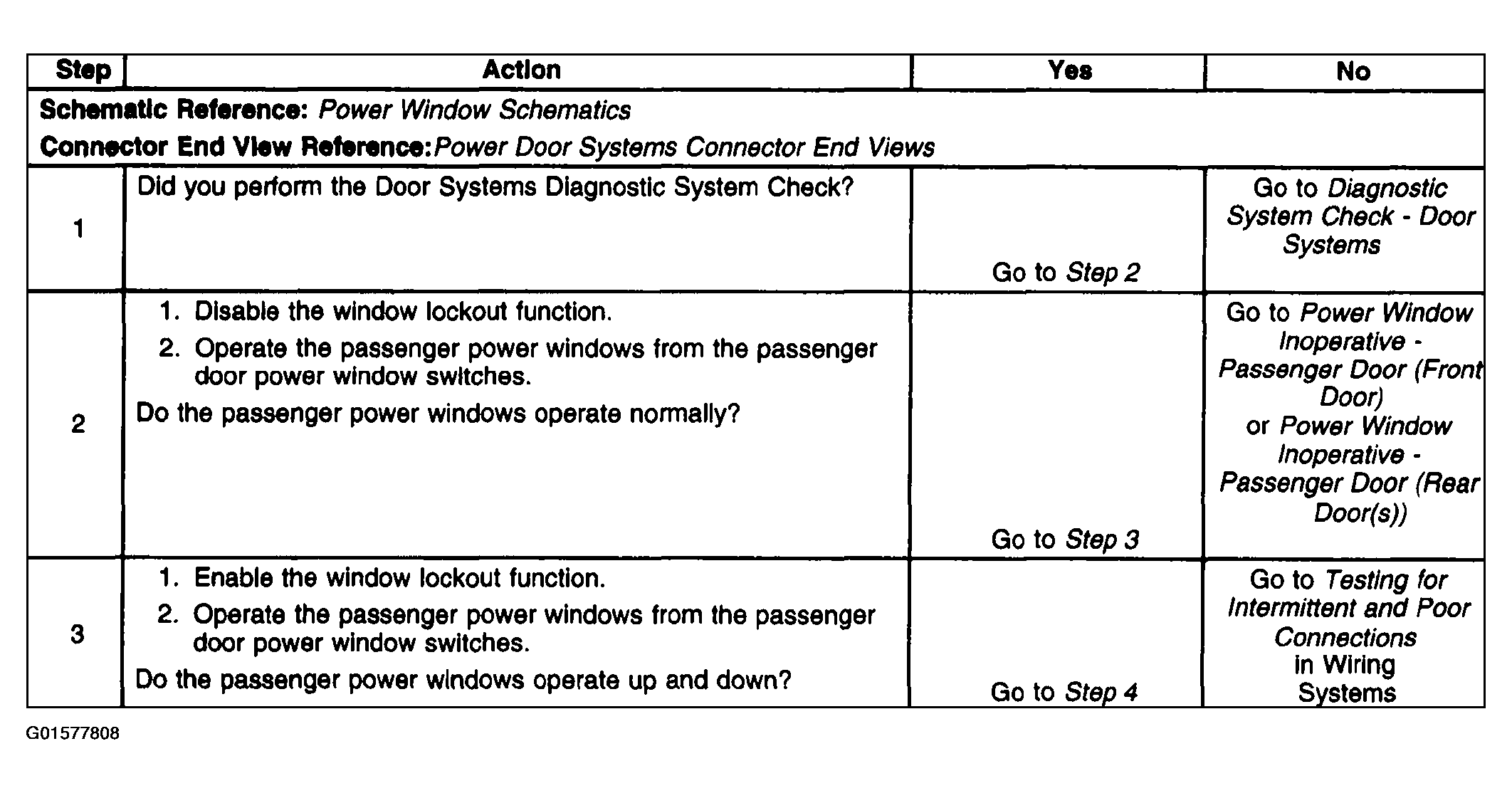

Fig 1: Power Windows Inoperative - Lockout Function (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

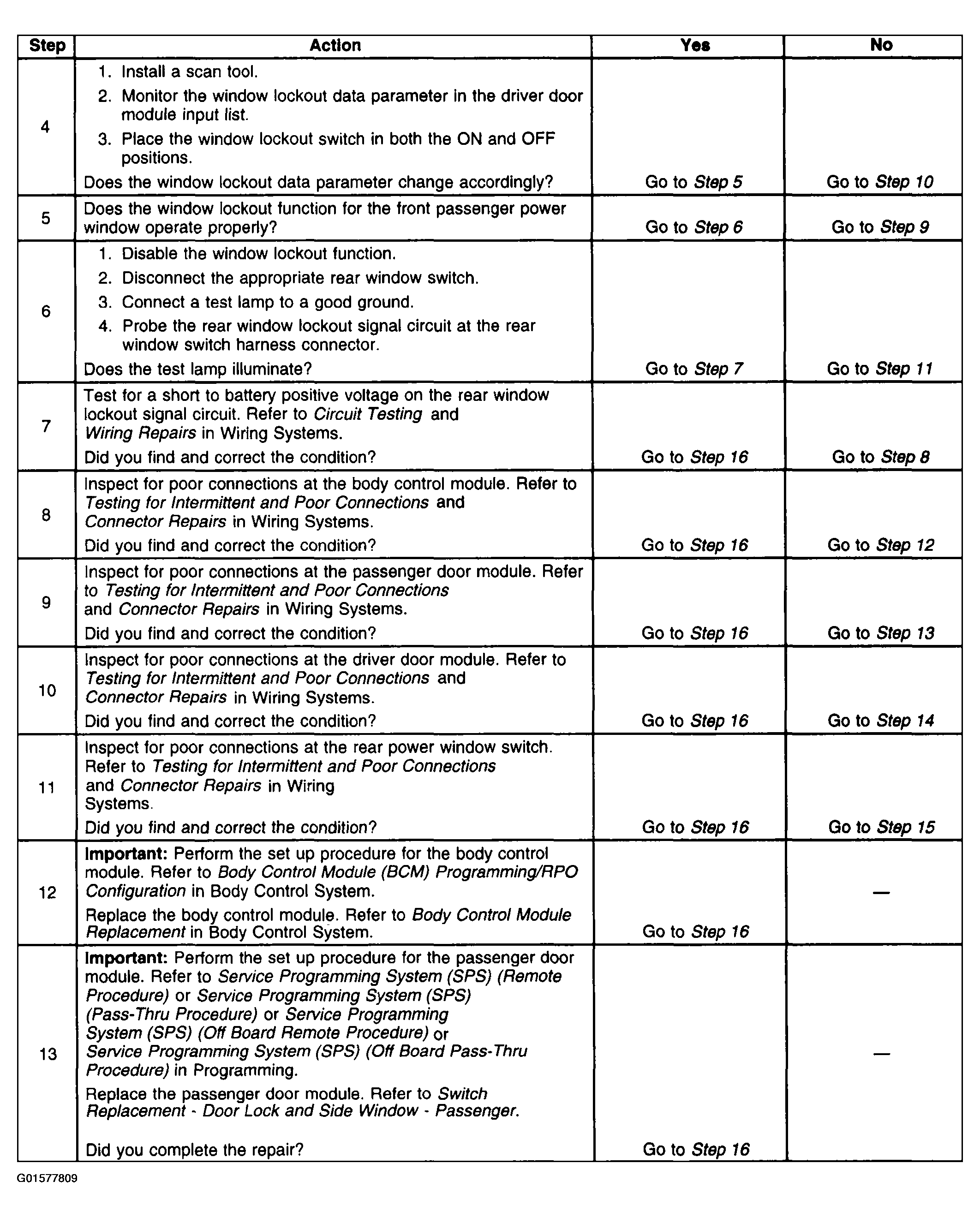

Fig 2: Power Windows Inoperative - Lockout Function (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

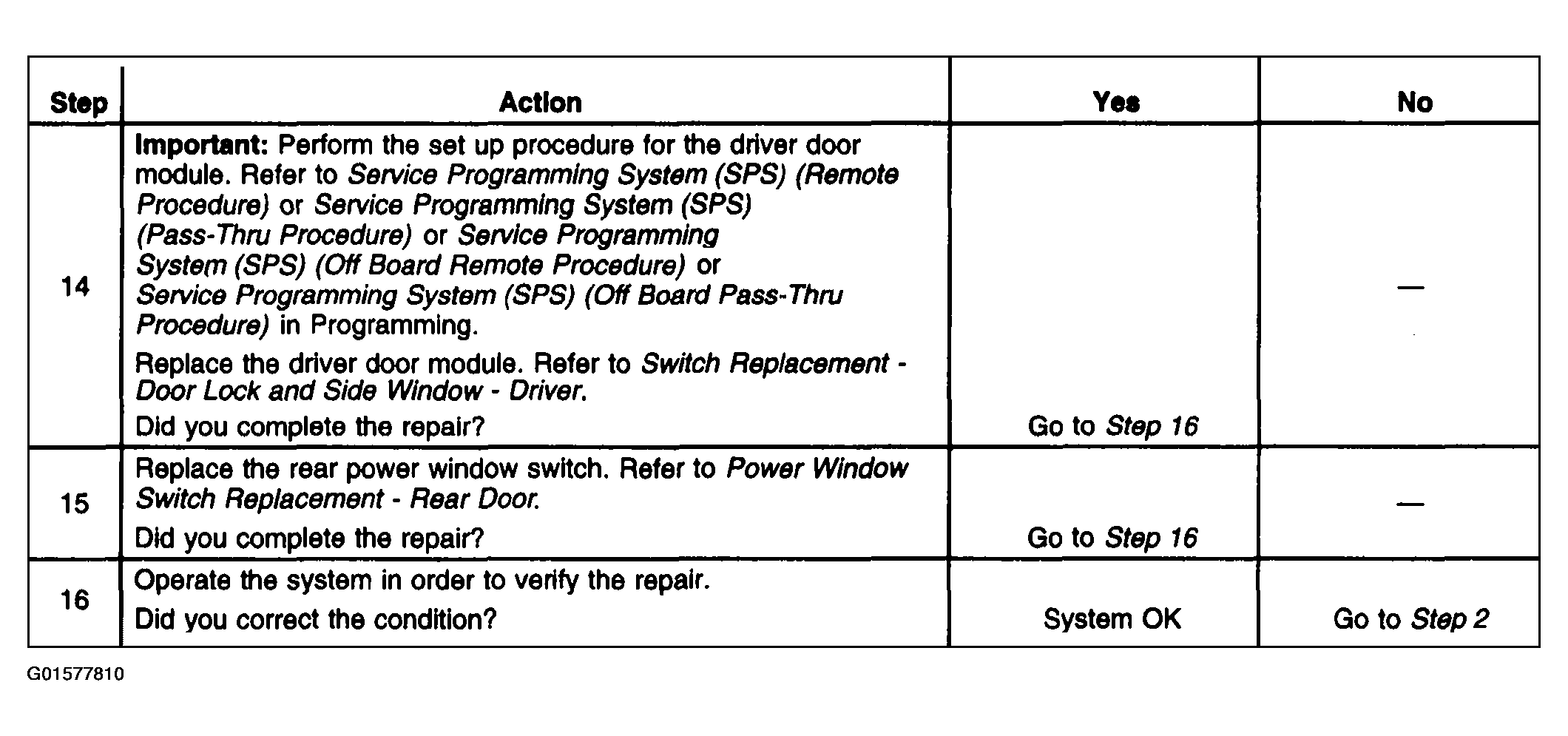

Fig 3: Power Windows Inoperative - Lockout Function (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
