Power Steering Pump - Disassembled View

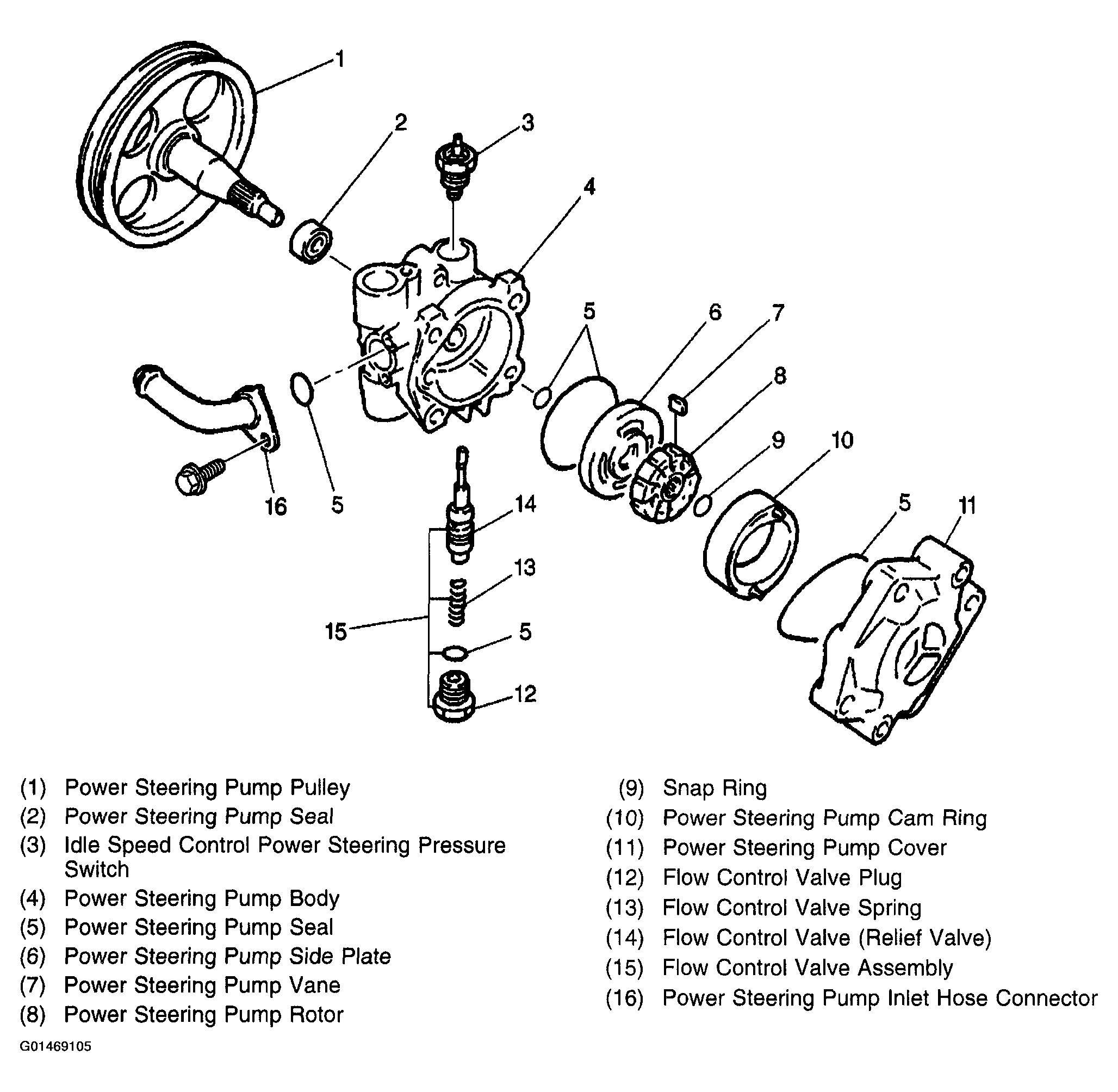

Fig 1: Disassembling View Of Power Steering Pump
G01469105Courtesy of GENERAL MOTORS CORP.
