Installation Procedure

  1. Slide the reservoir down vertically in order to install the reservoir to the bracket.
    NOTE: Refer to INSTALLING HOSES WITHOUT TWISTS OR BENDS NOTICE in Cautions and Notices.
  2. Install the reservoir outlet hose (4) to the reservoir. Secure with the hose clamp.
  3. Install the reservoir inlet hose (5) to the reservoir. Secure with the hose clamp.
    NOTE: When adding fluid or making a complete fluid change, always use the proper power steering fluid. Failure to use the proper fluid will cause hose and seal damage and fluid leaks.
  4. Add power steering fluid to the reservoir. Refer to CHECKING AND ADDING POWER STEERING FLUID  .
    NOTE: Refer to AIR IN THE POWER STEERING SYSTEM NOTICE in Cautions and Notices.
  5. Bleed the power steering system. Refer to BLEEDING THE POWER STEERING SYSTEM  .

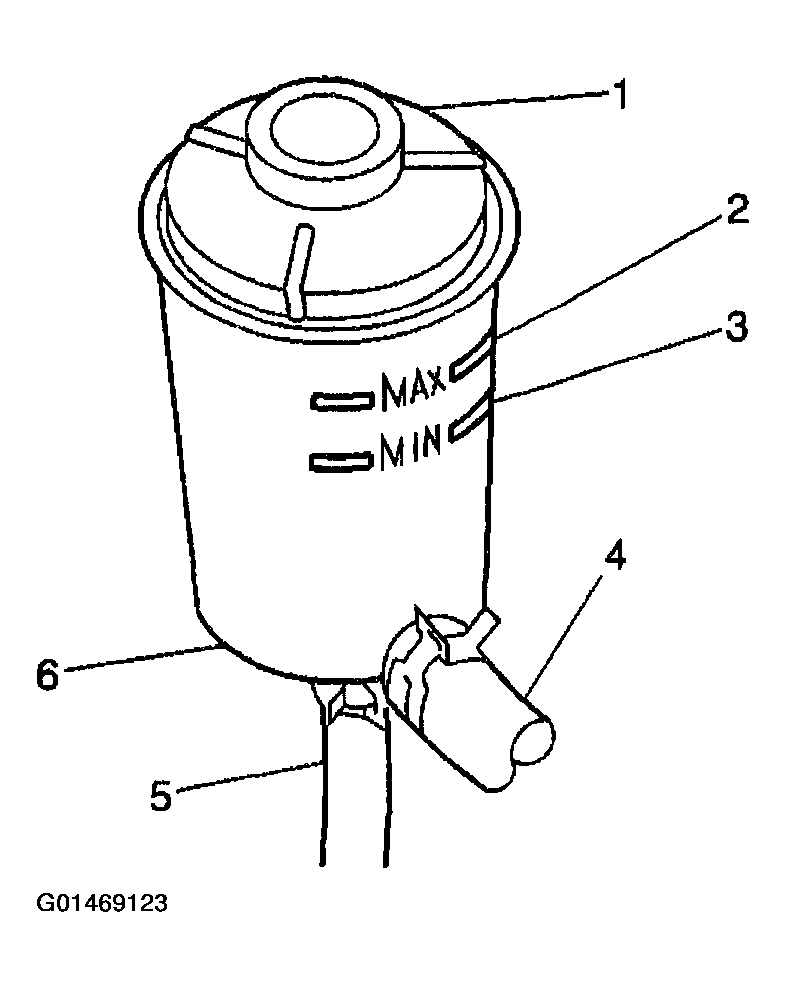

    Fig 1: Installing Reservoir Inlet Hose (5) To Reservoir
    G01469123Courtesy of GENERAL MOTORS CORP.
