Automatic Transmission Shift Lock Control Component Views
Automatic Transmission Shift Lock Control Component Views
Fig 1: Center Floor Console
Courtesy of GENERAL MOTORS CORP.

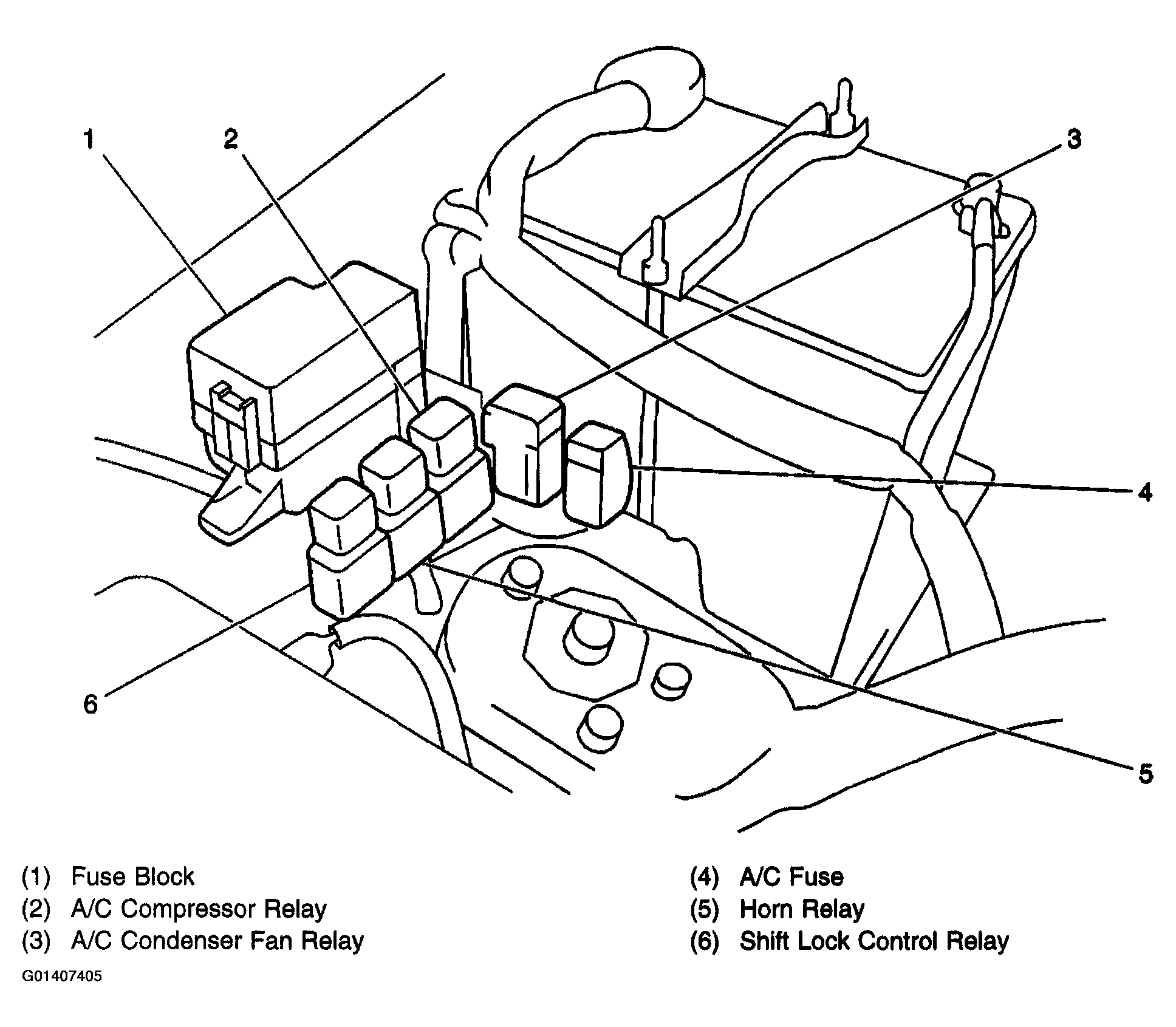

Fig 2: Relays
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
