Removal Procedure

  1. Remove the cruise control module cover (1).

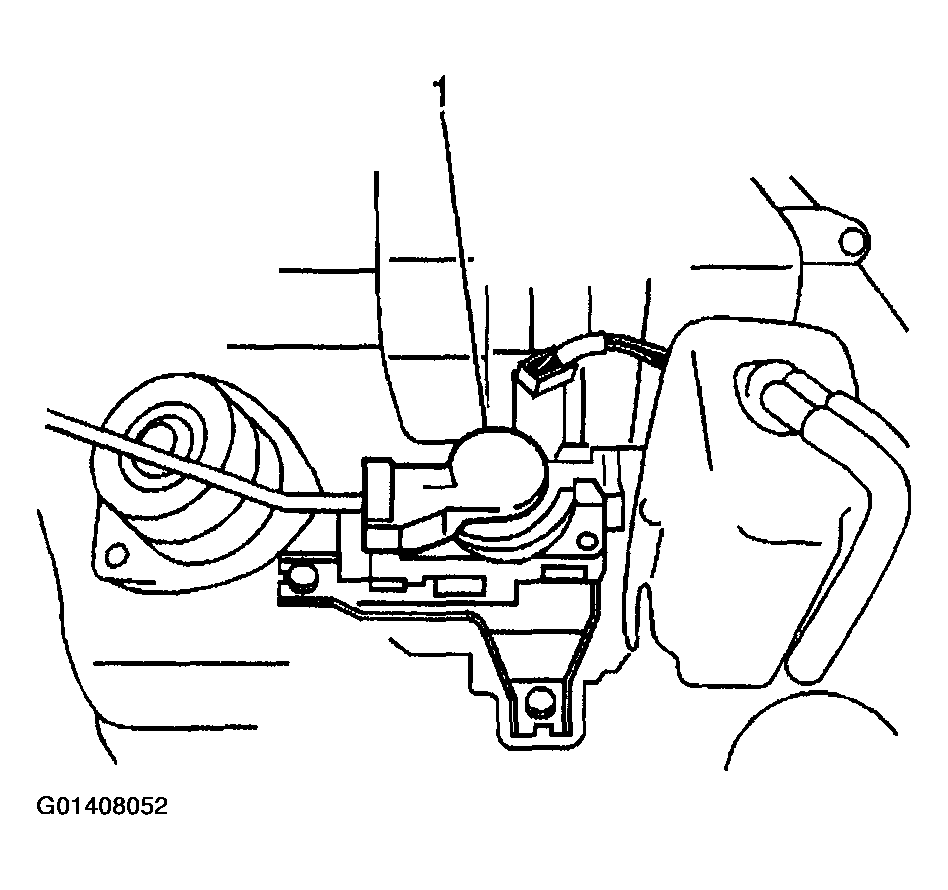

    Fig 1: Cruise Control Module Cover
    G01408052Courtesy of GENERAL MOTORS CORP.
  2. Loosen the cruise control servo cable locknut (5).
  3. Remove the cruise control servo cable (3) from the cruise control servo assembly (1).

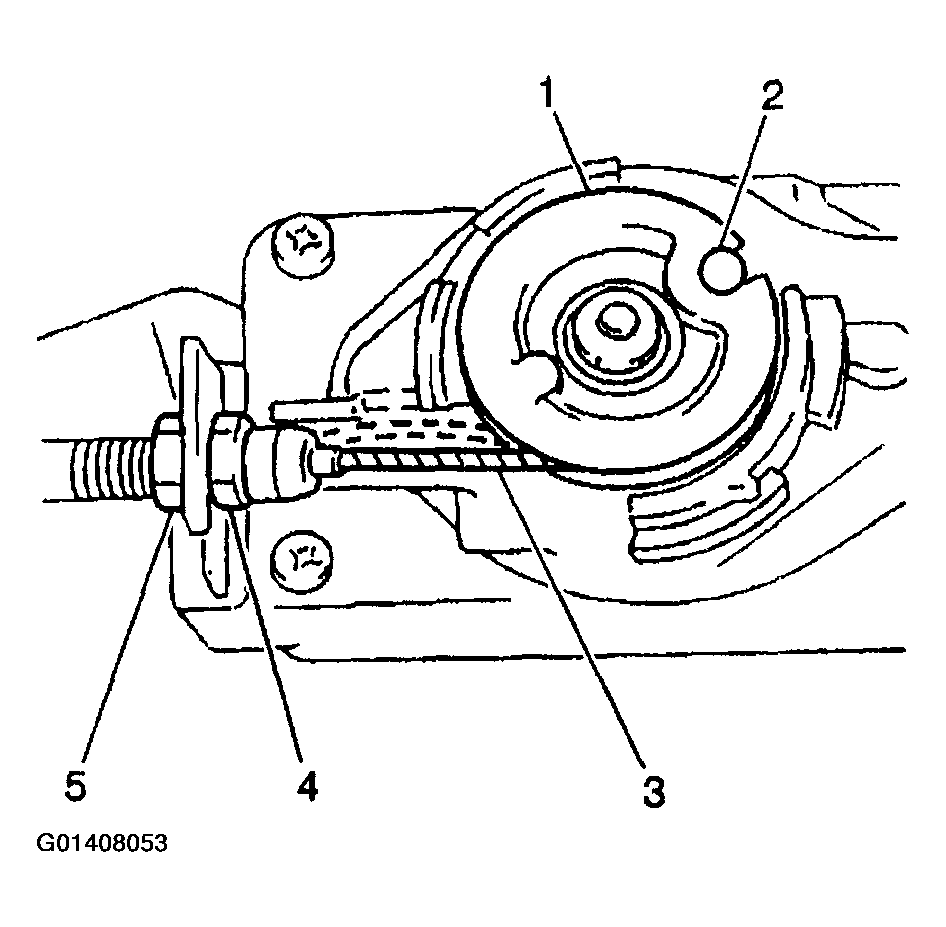

    Fig 2: Removing Cruise Control Servo Cable From Cruise Control Servo Assembly
    G01408053Courtesy of GENERAL MOTORS CORP.
  4. Remove the cruise control servo cable (3) from the cruise control servo cable retainers (5).

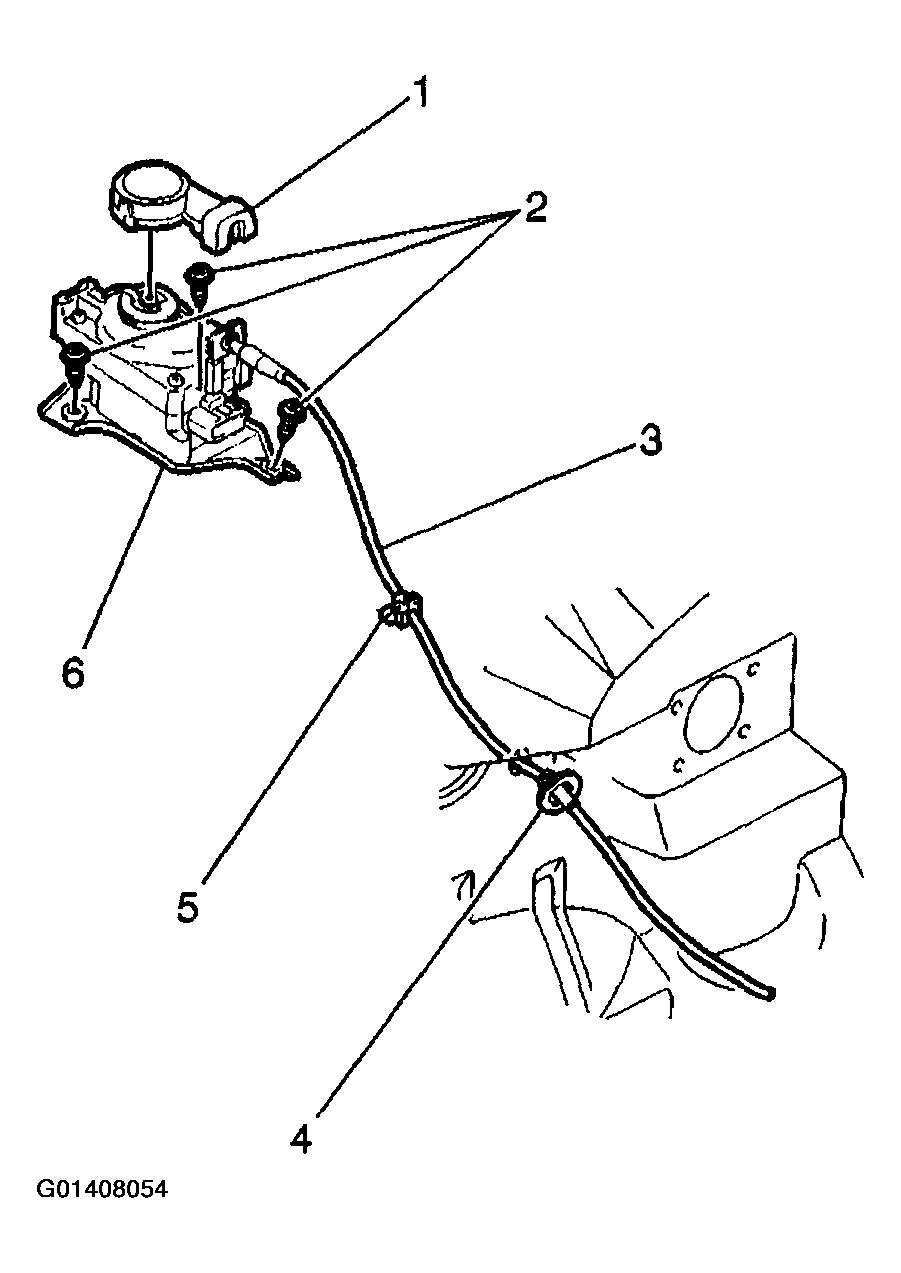

    Fig 3: Removing Cruise Control Servo Cable From Cruise Control Servo Cable Retainers
    G01408054Courtesy of GENERAL MOTORS CORP.
  5. Remove the cruise control servo cable from the accelerator pedal (1).
  6. Unclip the retainer (2) and grommet (4) which secure the cruise control servo cable from underneath the instrument panel.
  7. Remove the cruise control servo cable from the vehicle.

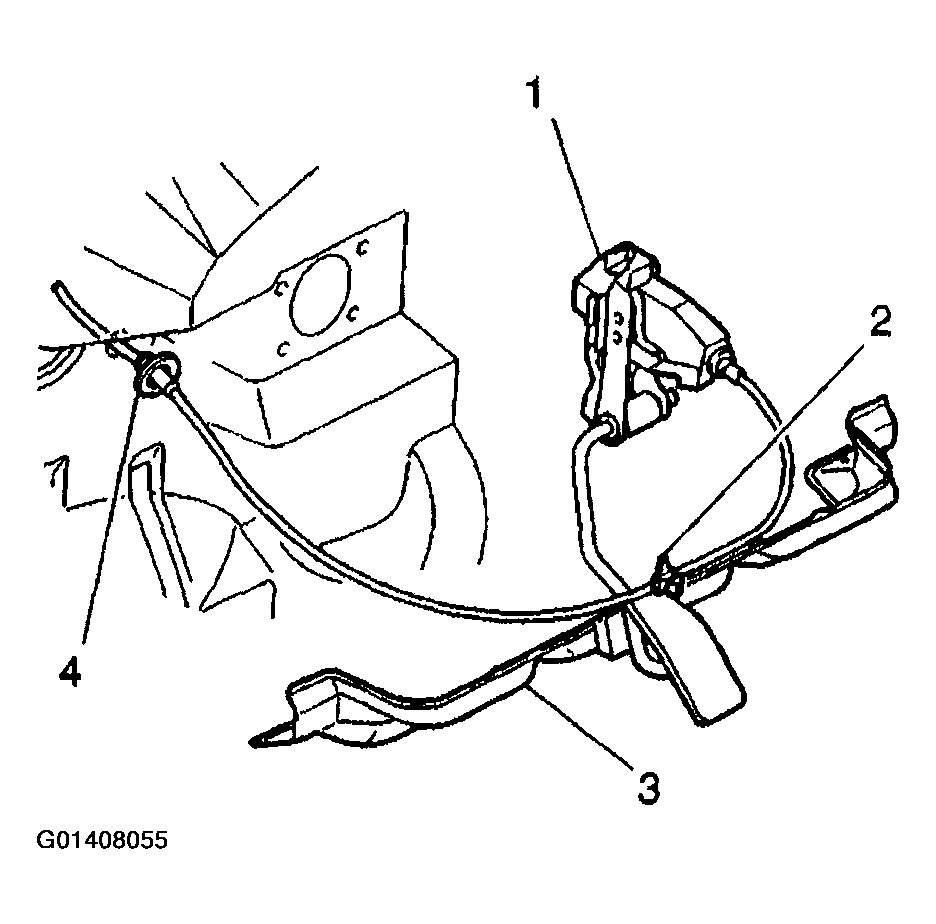

    Fig 4: Removing Cruise Control Servo Cable From Vehicle
    G01408055Courtesy of GENERAL MOTORS CORP.
