Timing Chain Cover

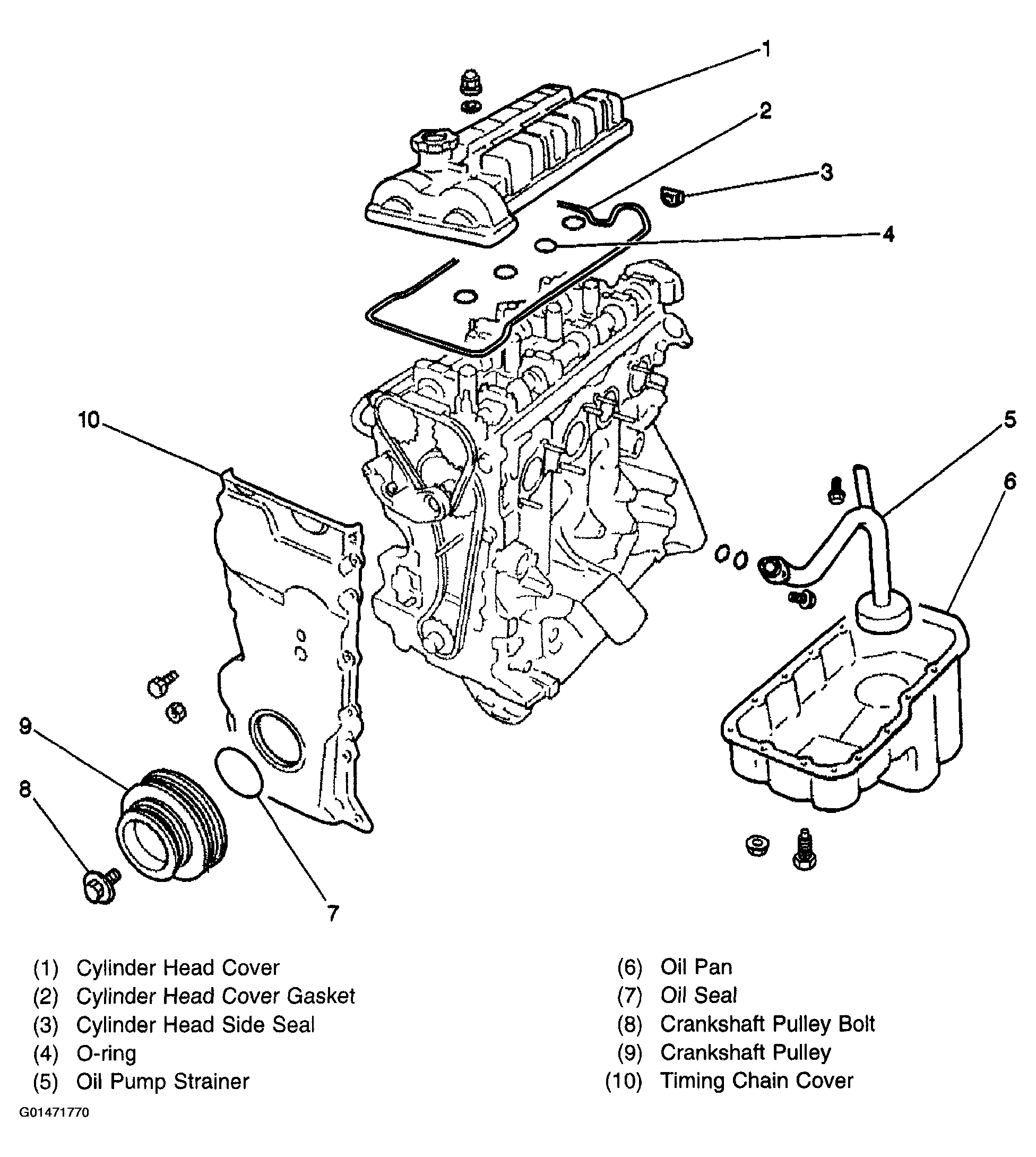

Fig 1: Timing Chain Cover Disassembled View
G01471770Courtesy of GENERAL MOTORS CORP.
