Gearshift Control Lever: Installation

  1. Install the gearshift control lever into the gearshift lever case by pushing down on the shift control lever pivot and turning clockwise 90 degrees 1/4 turn and releasing.
  2. Install the gearshift lever case boot to the gearshift lever case. Secure the boot with the 1 clamp.

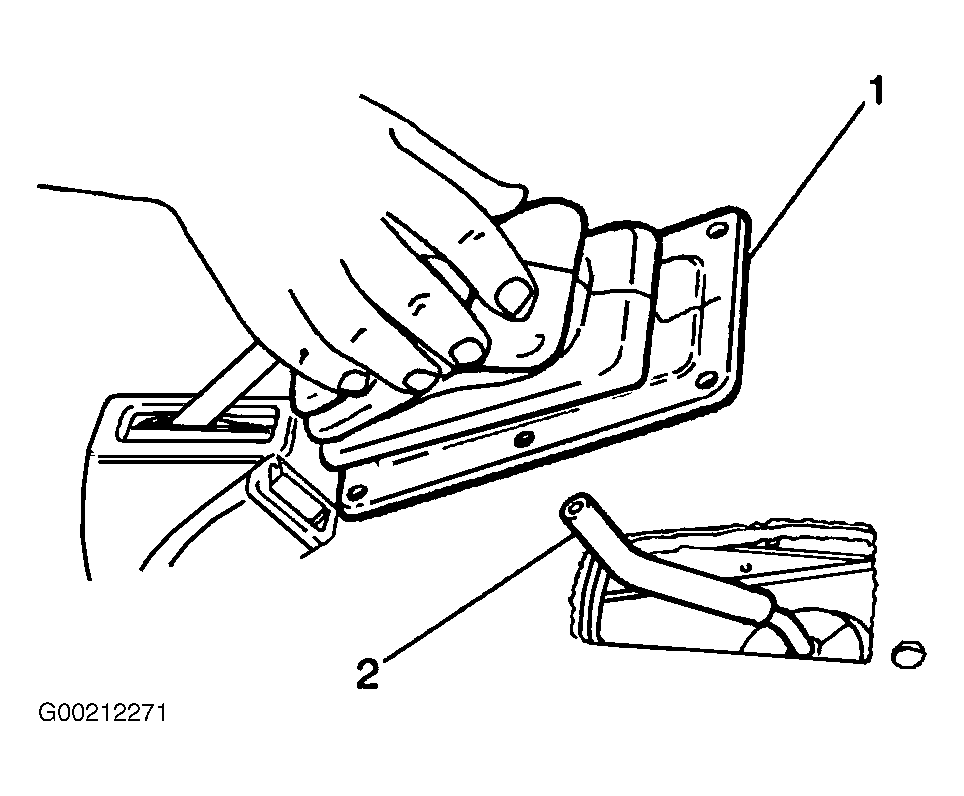

  3. Install the gearshift control lever boot (1) and the boot cover onto the gearshift control lever (2). Secure the boot and the cover with the 6 screws. See Figure .
  4. Install the gearshift control lever knob (1) onto gearshift control lever. Secure the knob with the 1 screw. See Figure .
  5. Install the front console box to the floor. Secure the front console box with the 2 plastic retainers and the 2 screws.
  6. Install the rear console box to the floor. Secure the rear console box with the 2 plastic retainers and the 2 screws.
