Stationary Windows Component Views

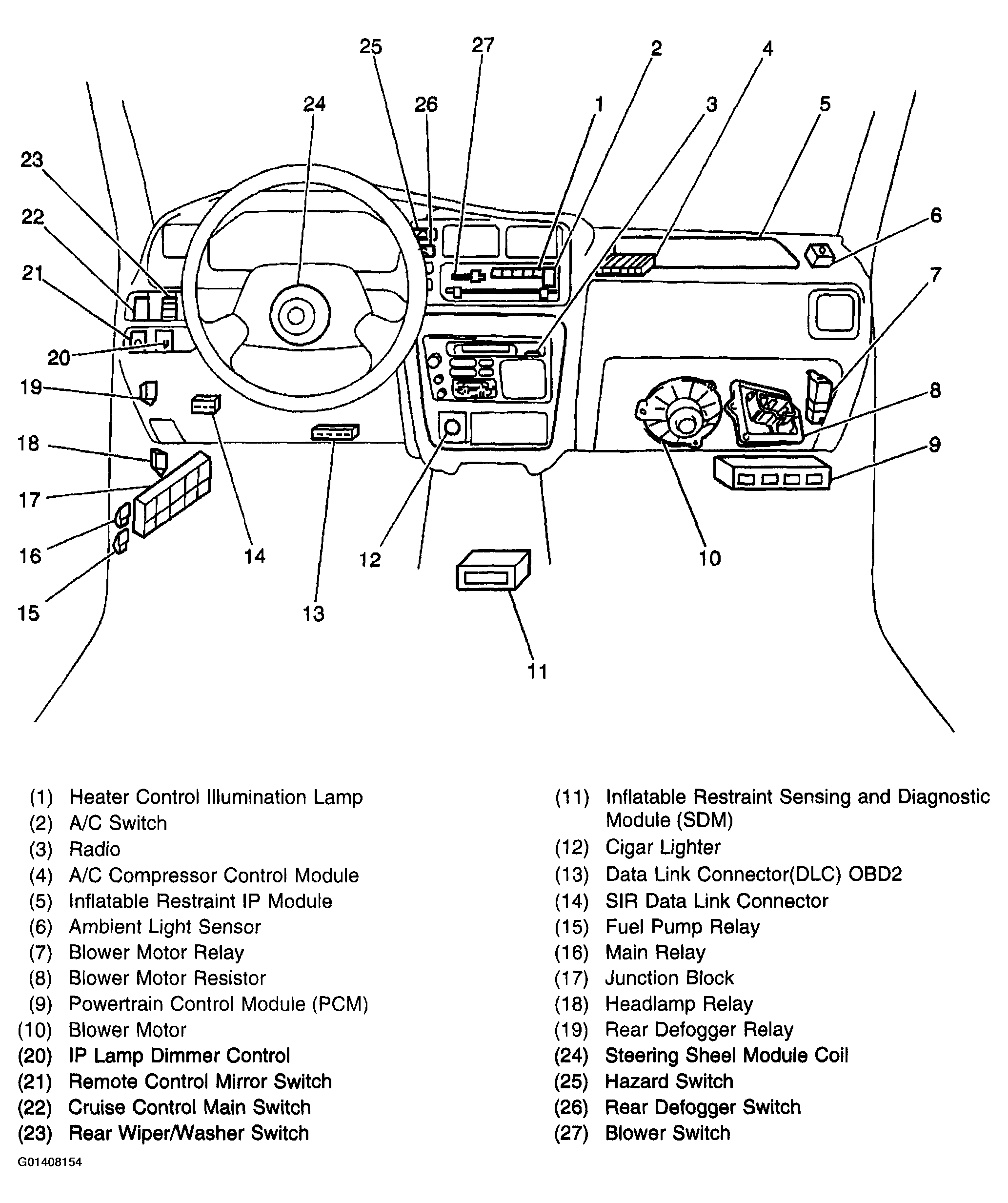

Fig 1: Instrument Panel Component View
G01408154Courtesy of GENERAL MOTORS CORP.

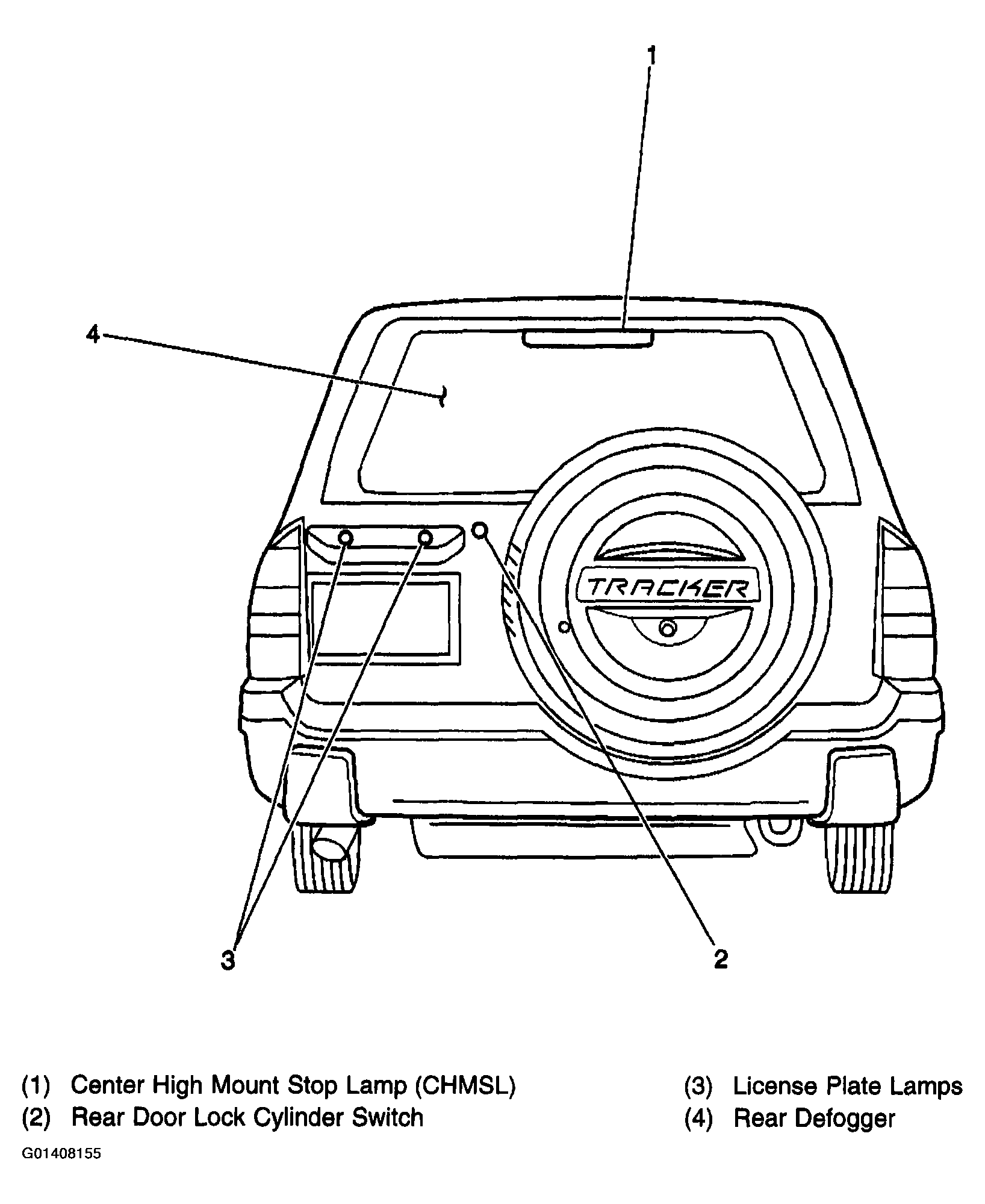

Fig 2: Outer Back Door Component View (4-Door)
G01408155Courtesy of GENERAL MOTORS CORP.
