Installation Procedure

  1. Install the rear window defogger relay (1) to the vehicle. Secure the relay with the screw.
  2. Connect the rear window defogger relay electrical connector (2).
  3. Install the instrument panel steering column opening trim plate. Refer to INSTRUMENT PANEL (I/P) TRIM PANEL REPLACEMENT - LEFT in Instrument Panel, Gages and Console.

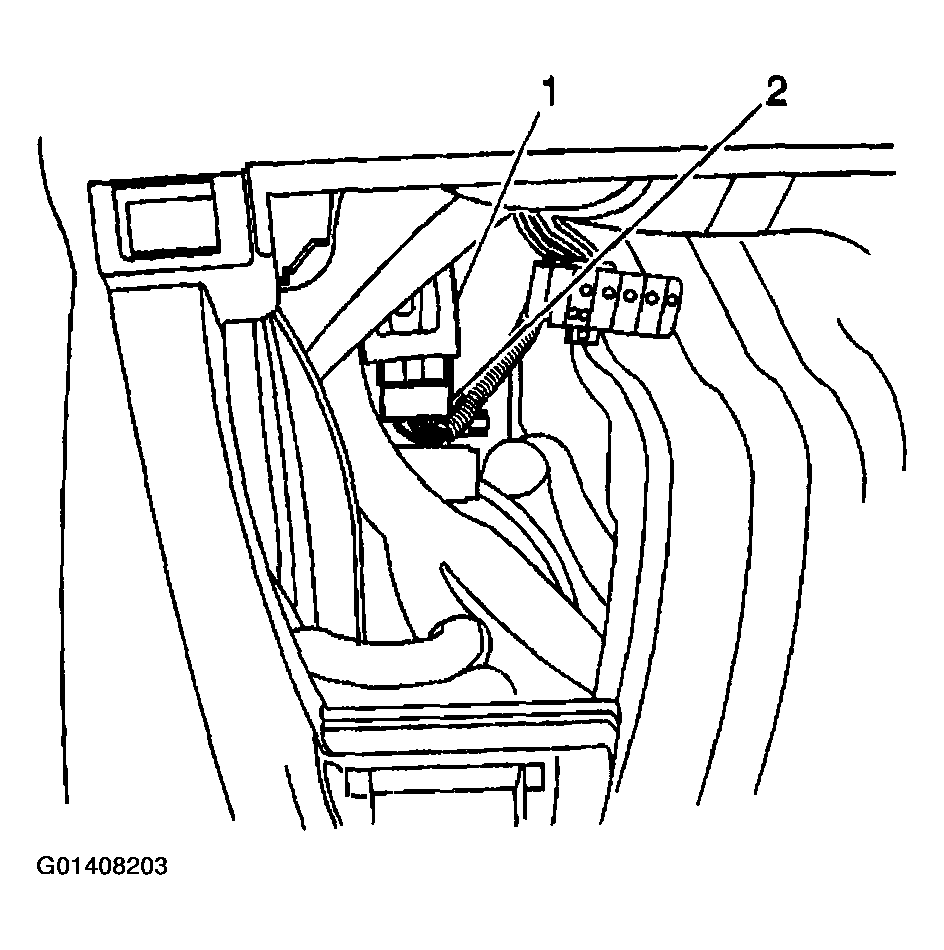

Fig 1: Rear Window Defogger Timer/Relay Components
G01408203Courtesy of GENERAL MOTORS CORP.
