Removal Procedure

  1. Remove the Instrument Cluster Assembly (2). Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT in Instrument Panel, Gages and Console.
  2. Remove the Lamp Driver Module (LDM) (1) from the printed circuit.

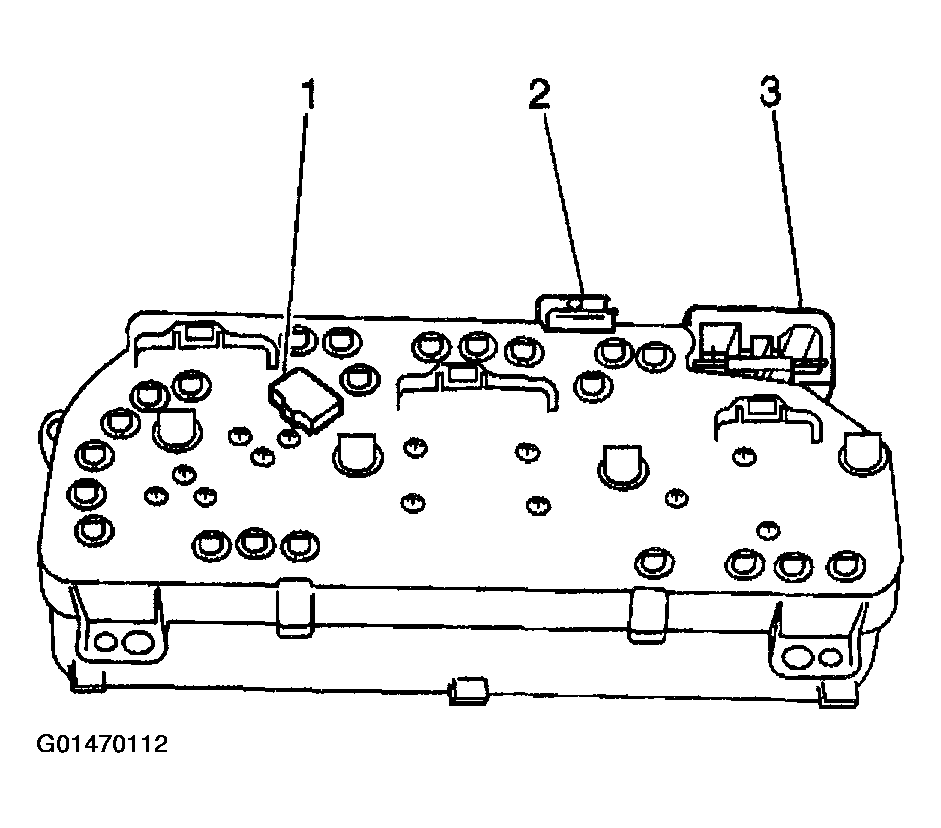

    Fig 1: Instrument Cluster Assembly & Lamp Driver Module
    G01470112Courtesy of GENERAL MOTORS CORP.
