Installation Procedure

  1. Using J 39245  , press the ABS reluctor ring (2) onto the wheel hub.
  2. Install the Front Wheel Hub. Refer to WHEEL HUB, BEARING, AND SEAL REPLACEMENT (4WD) or WHEEL HUB, BEARING, AND SEAL REPLACEMENT (2WD) in Front Suspension.
  3. Perform DIAGNOSTIC SYSTEM CHECK - ABS .

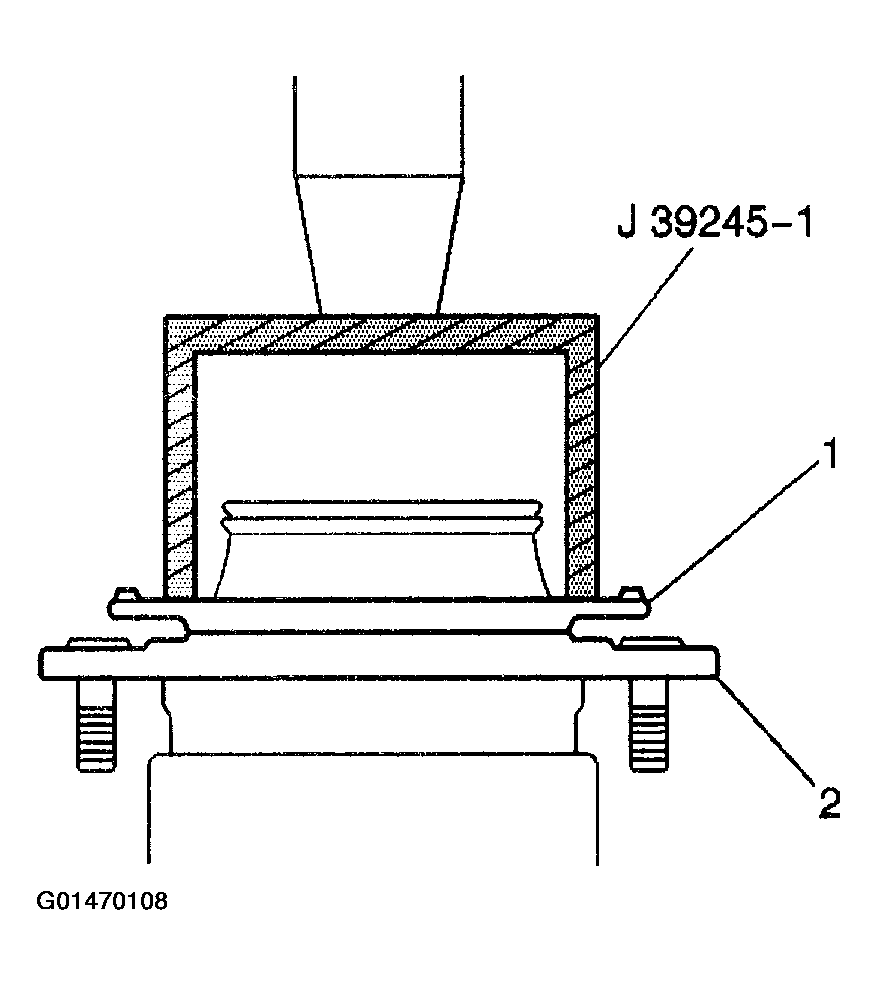

    Fig 1: ABS Reluctor Ring
    G01470108Courtesy of GENERAL MOTORS CORP.
