A/C Compressor Control Module Connector End View C1

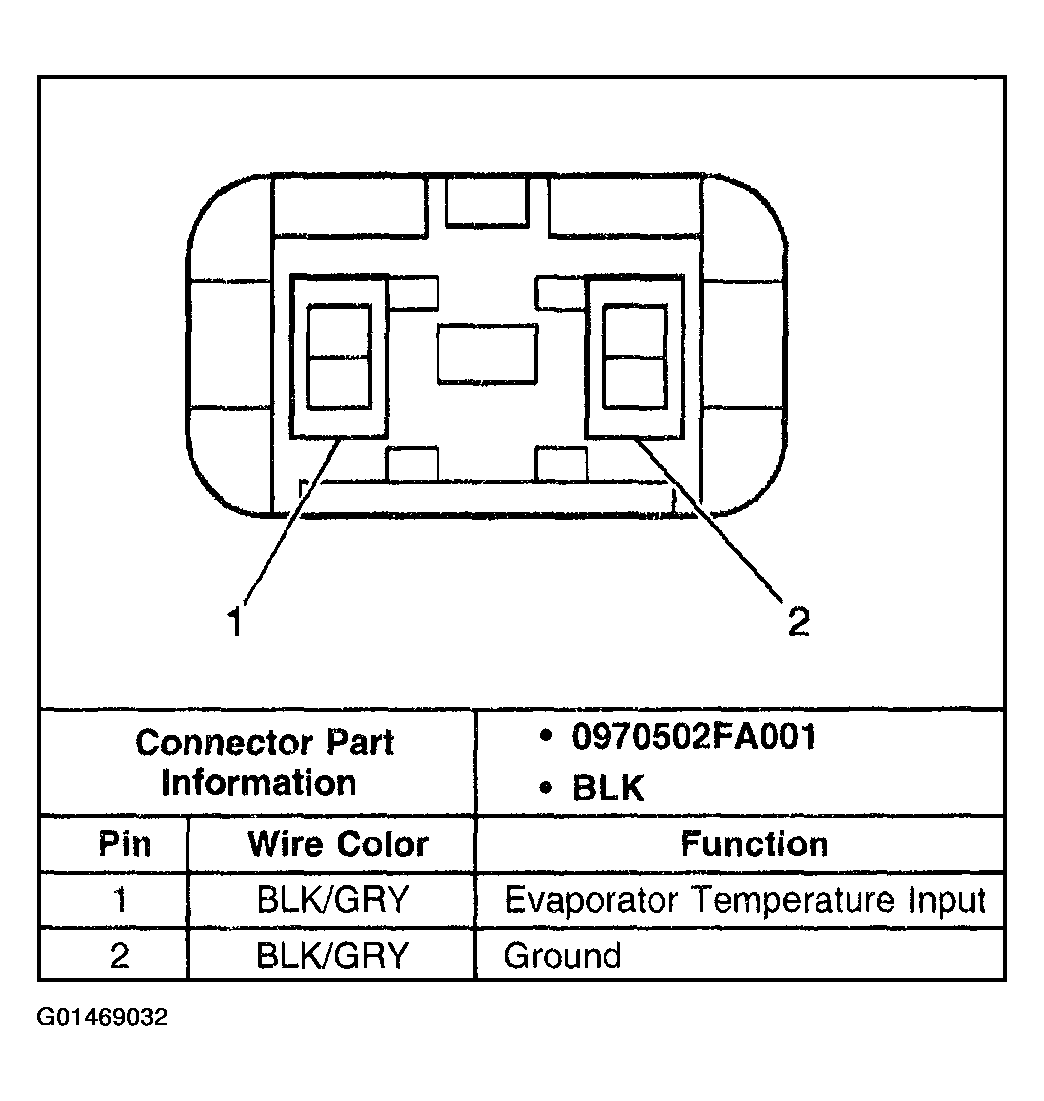

Fig 1: A/C Compressor Control Module C1
G01469032Courtesy of GENERAL MOTORS CORP.
