A/C Compressor Control Module Connector End View C2

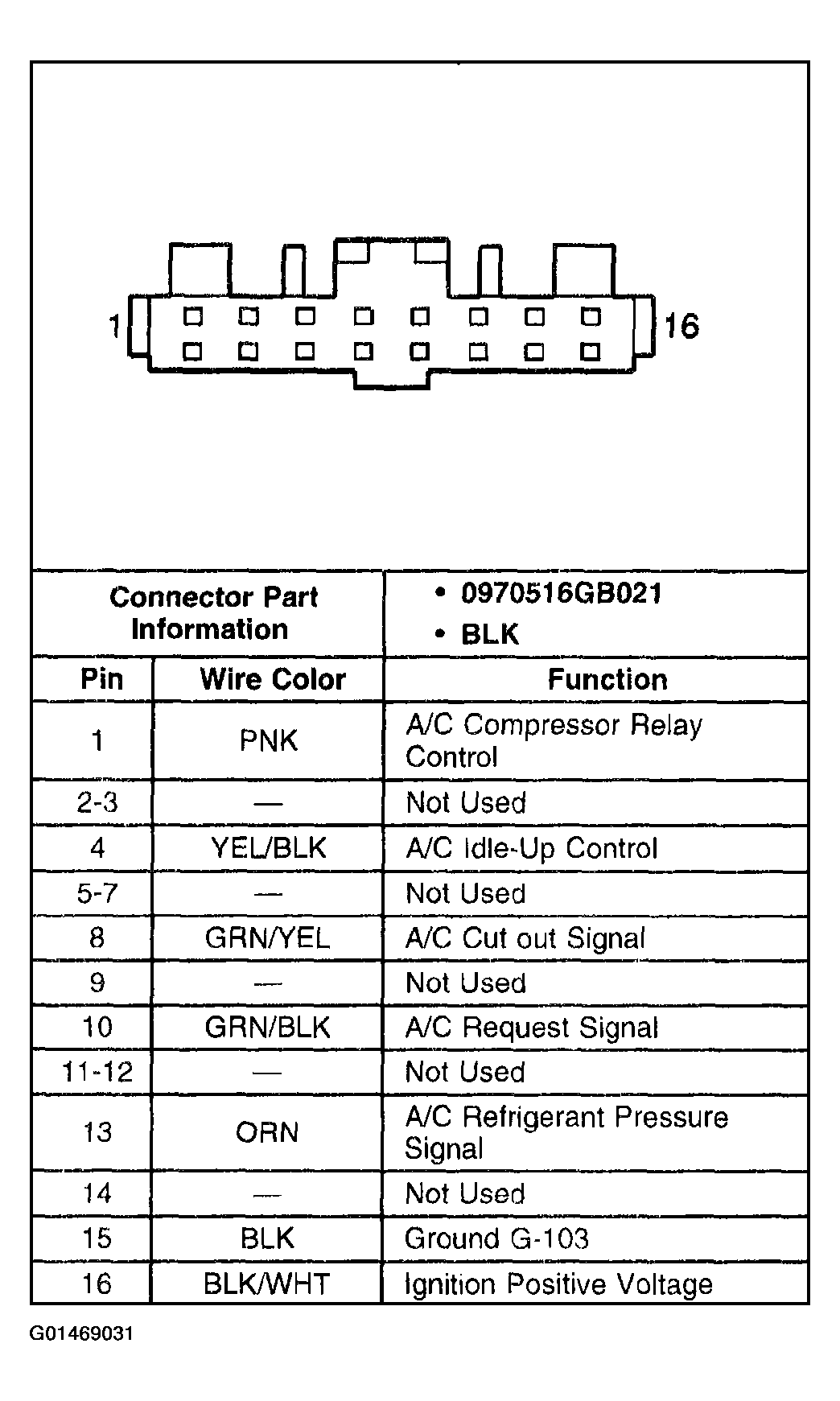

Fig 1: A/C Compressor Control Module C2
G01469031Courtesy of GENERAL MOTORS CORP.
