DRL Control Module Connector End View
DRL Control Module Connector End View

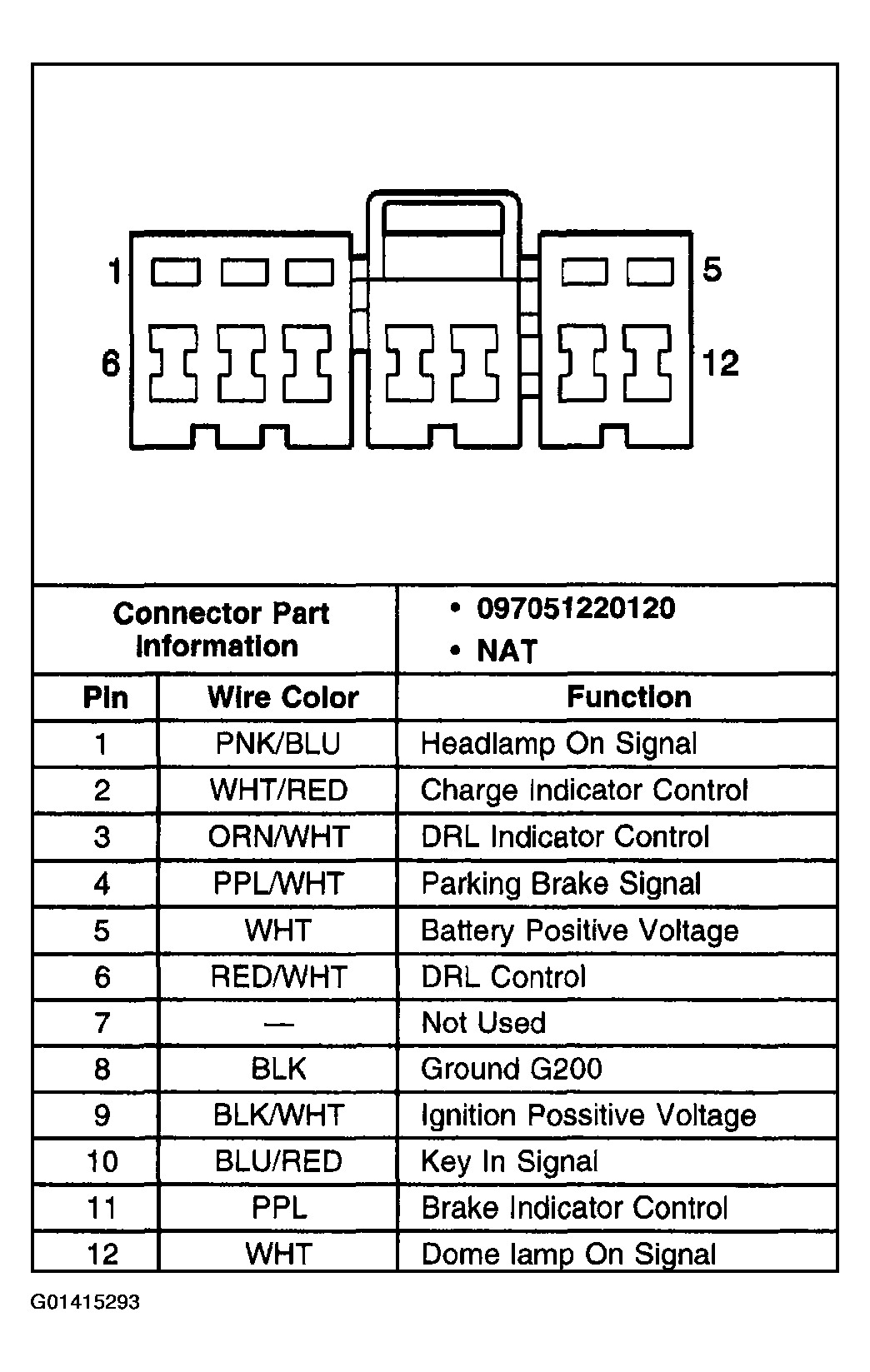

Fig 1: DRL Control Module
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
