Generator Connector End View
Generator Connector End View

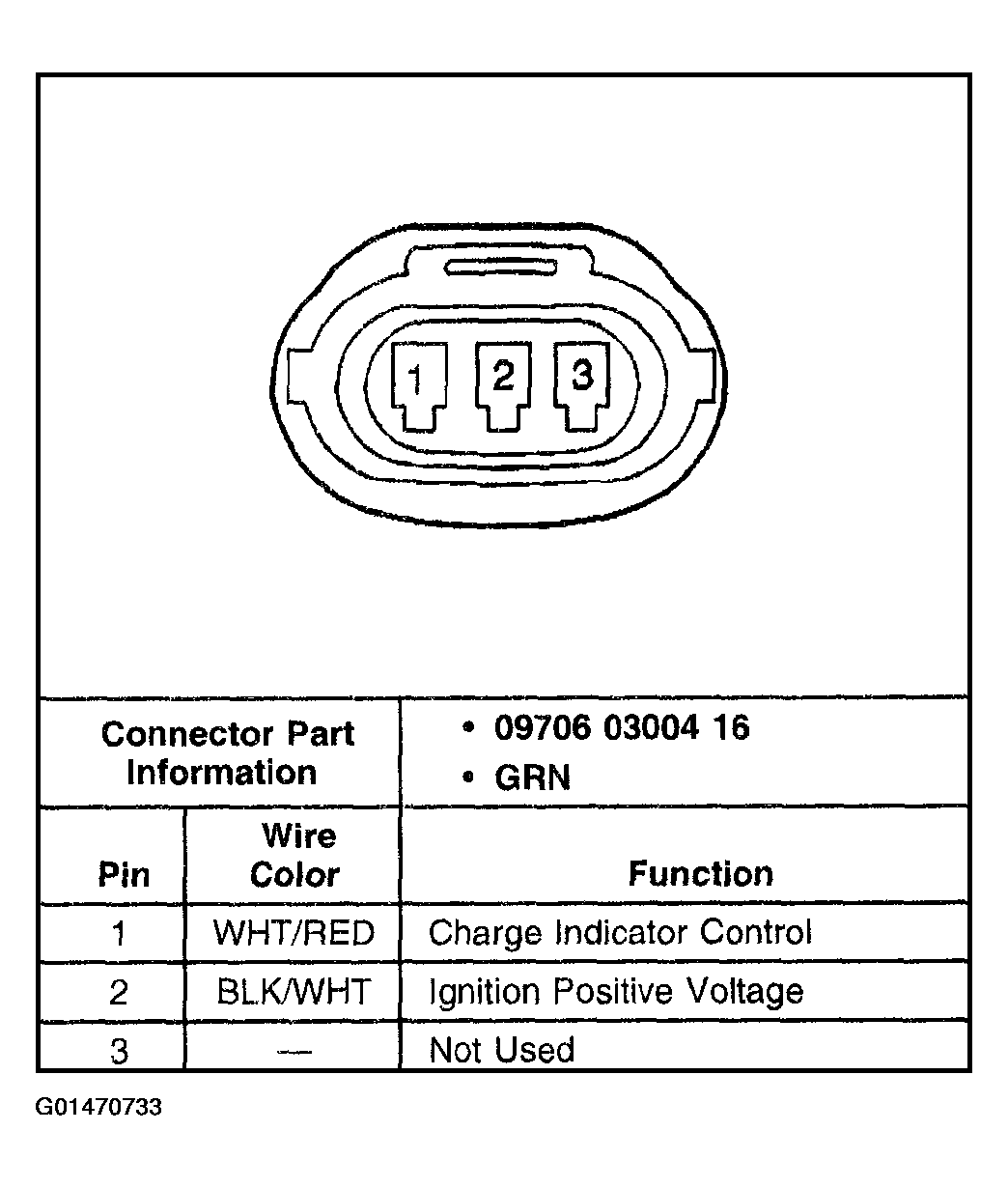

Fig 1: Generator
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
